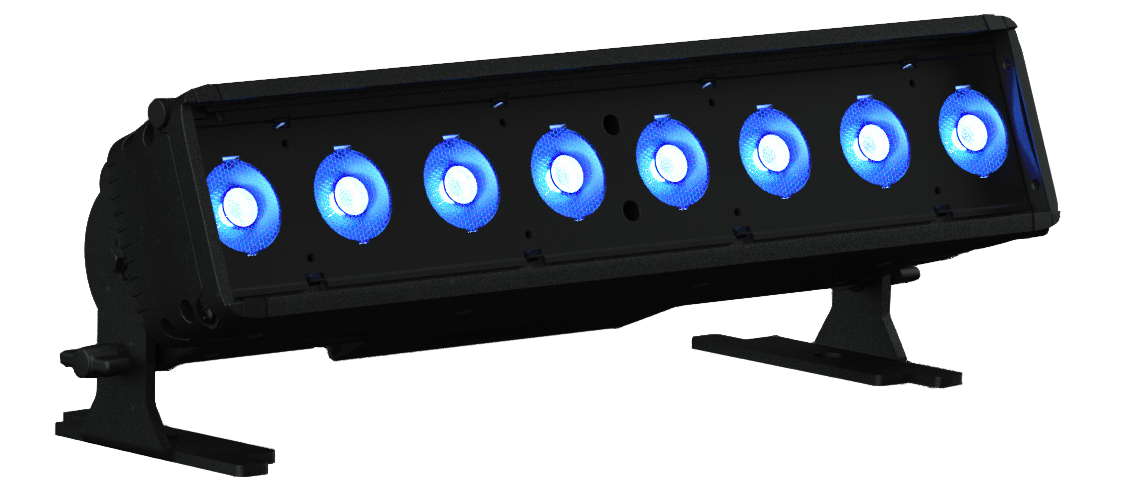

ETC/Elec Theatre Controls ColorSource Linear 1
1/2 Meter RGB-L LED Batten Luminaire with Bare-End Power Lead

OUR PART #:  CSLINEAR1-X

Engineered by the lighting experts at ETC, the ColorSource® Linear 1 is an LED luminaire designed as a strip light, or batten type fixture.
Learn More
Our Price: $1,095.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls ColorSource Linear 1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Engineered by the lighting experts at ETC, the ColorSource® Linear 1 is an LED luminaire designed as a strip light, or batten type fixture. It uses the same proportionate recipes of red, green, blue, and lime LEDs as the ColorSource PAR, creating a color range and richness that's only possible from ETC LED fixtures. It's made to allow multiple fixtures to be mounted end to end with no visible break in light, and lives up to ETC's high quality standards. This particular model is approx. 1/2m (19.61") wide, in black, with bare-end power lead.

Applications:

  • House of worship
  • Universities and schools
  • Hospitality
  • Retail
  • Exhibition centers
  • Meeting rooms
  • Clubs
  • "Cafetoriums"

ETC ColorSource Linear 1 Features:

  • ETC's LED RGB-L Chipset (Red, Green, Blue, and Lime)
  • Homogenized optics
  • Simple user interface with 7-segment display
  • PowerCON in and thru power connections
  • DMX in and thru (5-pin XLR or RJ45)
  • RDM or local configuration
  • LED droop compensation for consistent output
  • Optically calibrated
  • Tour-ready, aluminum housing

ETC ColorSource Linear 1 Specifications:

  • Manufacturer #: CSLINEAR1
  • General:
    • RGB-L chipset color-mixing wash luminaire with 8 emitters
    • IP20-rated for indoor use
    • Power- and DMX-in/thru connections for simple setup
    • Seven-segment, three-button interface
    • 12 onboard, customizable presets and five sequences
  • Physical:
    • Rugged, die-cast, aluminum housing
    • (2) secondary lens slots
    • Available in black, white or silver
      -- Custom colors available upon request (contact your Sales Pro)
    • Trunnions included
    • Dimensions*: 3.93" H x 19.61" W x 7.36" D (100 x 499 x 183mm)
    • Product Weight*: 6.4 lbs (2.9 kg)
    • Shipping Weight: 7.9 lbs (3.58 kg)
      *Note: Excluding mounting hardware.
  • Electrical:
    • 100VAC to 240VAC 50/60Hz universal power input
    • PowerCON in and thru power connections
    • Up to (9) luminaires (15A max) may be linked via power thru connector
    • Up to 10 luminaires total per circuit when used with ETC R20 relay module or Unison® Echo Relay Panel.
      -- Consult breaker trip curves when used with other equipment
    • Requires power from a non-dimmable source
    • Inrush:
      -- 120V: 35A (First half-cycle)
      -- 240V: 49A (First half-cycle)
    • ETL Listed to UL1573
  • Led*:
    • 20,000-hour LED life (at 70% intensity)
    • 40 Luxeon® Z LED emitters (5 per optic)

*See additional LED notes and photometrics on page 3 of Datasheet located under "Documentation" tab, above.

  • Color:
    • Exclusive RGB-L Color array
    • Unparrallelled brightness and color range
    • Droop compensation maintains color accuracy during use
    • Optically calibrated to ensure consistency across fixture
  • Optical:
    • Homoginized optics for a consistent, smooth beam
    • Primary field angle of 24.9° and beam angle of 14.5°
    • Secondary lenses available for multiple beam-spread options (sold separately).
  • Control:
    • DMX512 in and thru via 5-pin XLR or RJ45 connectors (End-of-line termination required)
    • RGB, IRGBS, Direct and single channel control
    • 15-bit virtual dimming engine provides smooth, high-quality theatrical fades
    • RDM support for address and setting changes
    • Local control of presets (12) and sequences (5)
  • Thermal:
    • Luminaire is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing
    • Ambient operating temperature of 32° to 104°F (0° to 40°C)
    • Active electronic thermal management using variable-speed fan
