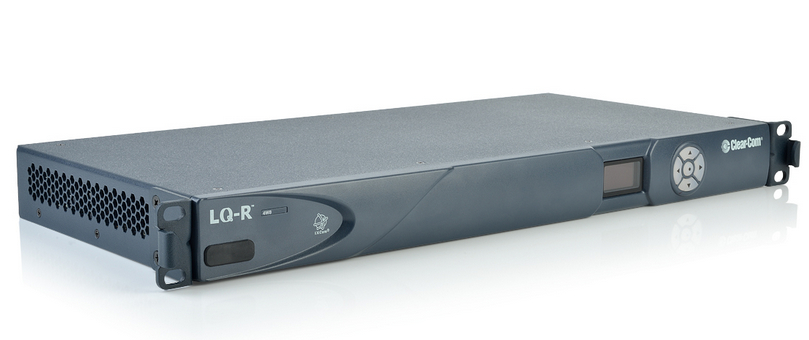

Clear-Com LQ-R4W8 8 Channel, 4-Wire with GPIO IP Interface

The Clear-Com® LQ-R4W8 is a multi-interface unit that facilitates IP communications for extension of up to 8 ports of 4-wire, SIP and IVC-32-HX connectivity simultaneously over any IP network (LAN, WAN & Internet). Constructed in a 1RU panel, the audio can be routed to five other LQ units in a Link-Group. Bridging support for both Clear-Com Eclipse and Drake 4000 panel data is also available.

Specifications

• Audio:
  • Resolution: 12 bit
  • Sample Rate: 24KHz
  • Frequency Response: 100 – 12KHz
  • CODEC: OPUS
• 4-Wire Audio:
  • Input Gain: -12dB to +12dB
  • Output Gain: -12dB to +12dB
• Network Setting:
  • Bit Rates: 16, 32, 48, 64, 128Kbps
  • Packet Size: 5, 10, 20, 40, 60ms
  • Jitter Buffers: 0 - 1000ms
• Connectors:
  • Network/LAN: EtherCON/RJ45 (female)
  • 4-wire Audio I/O: EtherCON/RJ45 (female)
• Power Supply:
  • In-line supply with sleeve locking connector
  • Input: 100-240V, 50-60Hz, 1.4A MAX
  • Output: DC 12V, 5A, 60W MAX
• Environmental:
  • Operating Temperature: 32°F - 104°F (0°C - +40°C)
  • Storage Temperature: -67°F - 158°F (-55°C - +70°C)
• Humidity: 90%, non-condensing
• Dimensions (WxHxD): 19" x 1.79" x 8.8" (483 x 46 x 224mm)
• Weight: 4.29lbs (1.95kg)
