Product Overview

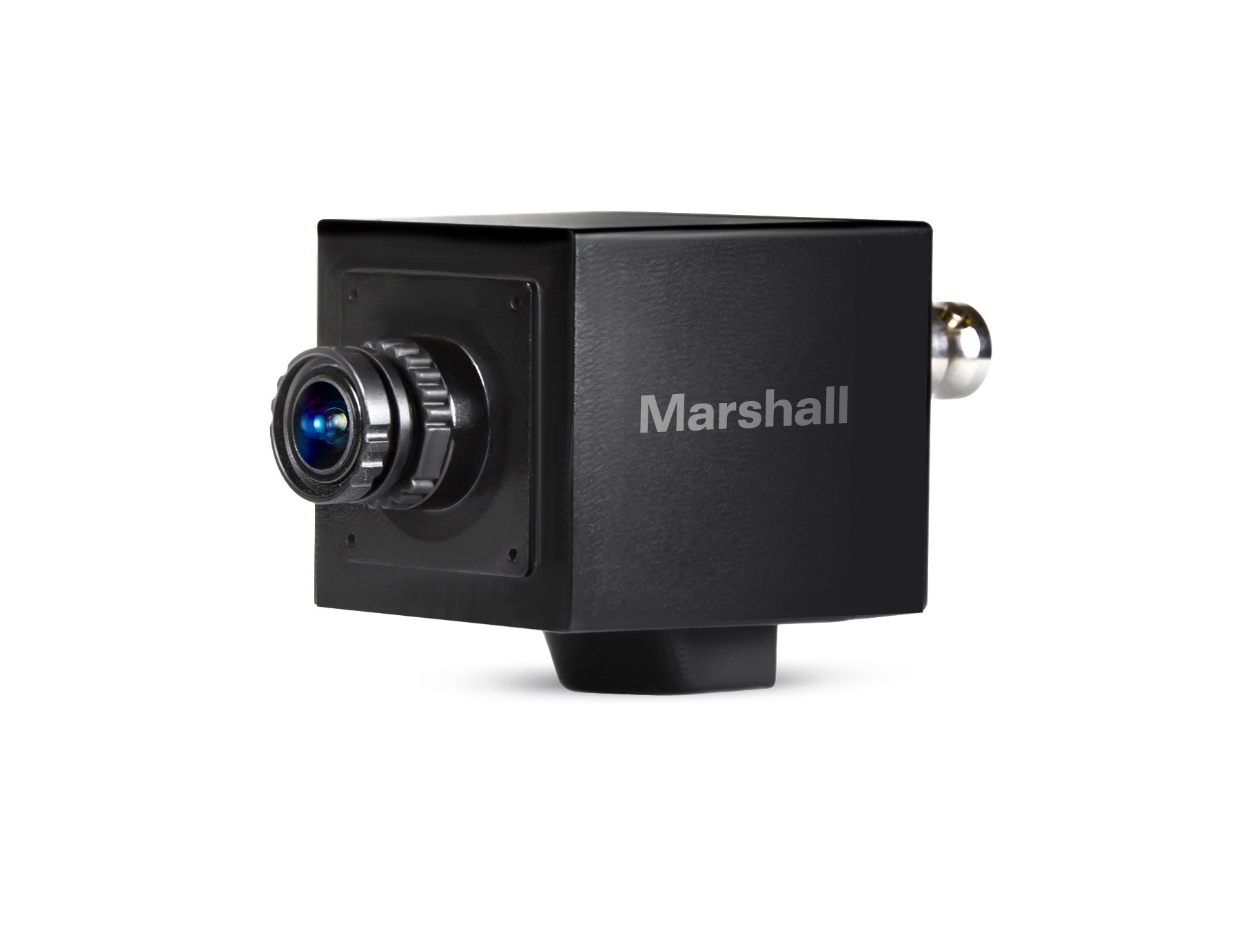

Marshall Electronics' CV505-M is a full-HD (3G/HD-SDI, HDMI) 2.5MP mini POV camera with 3.7mm lens and interchangeable lens mount. Marshall Electronics' next generation Miniature CV505 Cameras add the convenience of a 3.5mm TRS Mic Input (2.5V) (audio embedding) with 2.5V power to microphone and HDSDI/3GSDI (BNC) & HDMI (v1.3) simultaneous outputs. Built around next generation chip sets and a state-of-the-art 1/3" megapixel sensor improves every aspect of previous models. Capturing broadcast quality HD video from 2,476,296 pixels (2.5MP) of clear, crisp video at full-HD resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25fps.
Marshall Electronics CV505-M Features:
- 2.5 Megapixel 1/3" CMOS Sensor
- 3.7mm Megapixel M12 Prime Lens installed (interchangeable)
- Resolution: 1920x1080p60/50/30/25, 1920x1080i60/50,1280x720p60/50/30/25fps
- 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel
- Lemo-style (I/O) connector contains: RS-485(+/-), 12V power connector & TRS microphone input with 2.5V power
- Captures sharp and vivid color images at 0.2 lux (low light sensitive)
- New WDR function supports high speed and high sensitivity to various light sources
- Audio Mic Input (TRS) embedding with 2.5V power supplied (embeds 3G/HDSDI & HDMI)
- OSD Menu Joystick, RS-485 connectable (Pelco/Visca)
- Free Downloadable Software Control
- Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust
Marshall Electronics CV505-M Specifications:
- Sensor:
- Image Sensor: 1/3" Progressive CMOS (Approx. 2.1 mega)
- Scanning System: 16:9 Progressive
- Sync. System: Internal
- Effective Pixel: 1920(H) x 1080(V)
- Min. Illumination: 0.2Lux (Day), 0.1Lux (Night), 0.005 Lux(DSS on)
- Horizontal Resolution: 1000TVL
- Lens: 3.7mm (M12 mount) - interchangeable (additional lenses sold separately)
- Back Light Compensation: WDR (Wide Dynamic Range) /BLC (Back Light Compensation), HLC (High Light Compensation)
- Exposure: Auto / Manual
- White Balance: Auto (3,000°K~8,000°K) /ATW(1,900°K~11,000°K) / Manual
- Day & Night System: AGC (Auto Gain Control) /TDN(ICR)
- Electronic Shutter:
- NTSC: 1/30~1/30000
- PAL: 1/25~1/30000, DSS (~X64)
- Functions: Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, DIS (Digital Image stabilizer), NegArt, Freeze, B&W
- Video Outputs:
- 3G-SDI (+optional Audio), HD-SDI (+optional Audio):
- SMPTE 424M(2.97Gbps):
- SMPTE 292M(1.485Gbps):
- 1920x1080p @ 25/30
- 1920x1080i @ 50/60fps
- 1280x720p @ 50/60
- HDMI(+Audio) Output (HDMI type A female):
- HDMI 1.3 compliant
- 1920x1080p @ 50/60 >1920x1080p @ 25/30 >1920x1080i @ 50/60fps >1280x720p @ 50/60
- MIC Input:
- Microphone Level (1Vrms): 2.5V Mic bias
- 16-, 20-, 24-, 32-bits audio format. 48KHz sample rates
- Gain: -12dB ~ 59.5dB
- Control Interface:
- RS-485:
- PELCO-P/D, SONY-VISCA protocol
- 8-bits data, 1 stop bit, no parity, 2400~115200bps
- Operation Temperature: -10°C ~ 50°C
- Power Input: 12VDC (7V to 15VDC)
- Power consumption: Max 6W
- Dimensions (WxHxD): 36 x 36 x 45mm
- Weight (Net): Approx. 140g
