Attero Tech unD6IO-BT (White/UDP Control Firmware)
4x 2-Channel 2-Gang US Wall Plate with Bluetooth

OUR PART #:  UND6IO-BT-W-U

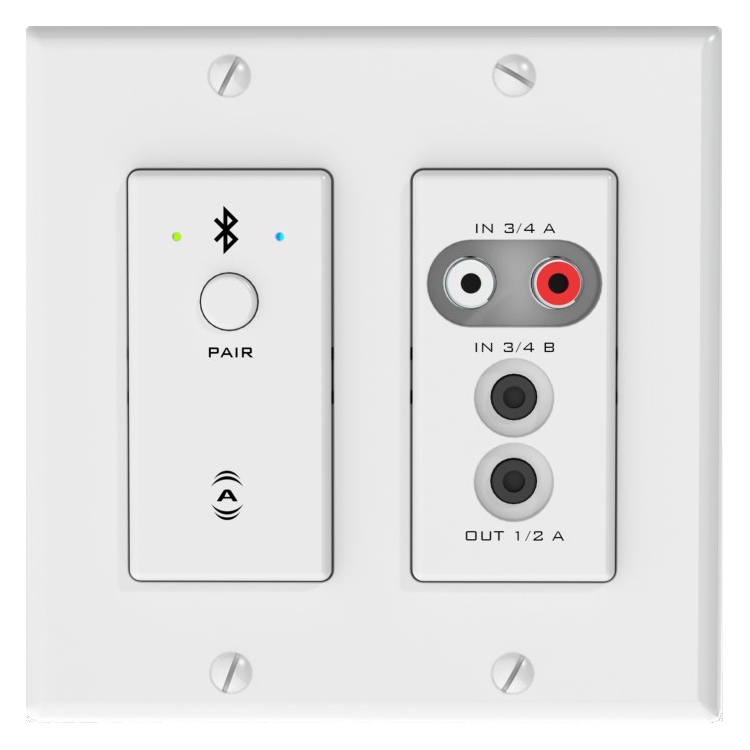

The Attero Tech UND6IO-BT is a 4x2 channel 2 gang US wall plate with Bluetooth® and with UDP 3rd party control. This particular unit comes in a white finish.
Learn More
Our Price: $775.00
List Price: $969.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Attero Tech unD6IO-BT (White/UDP Control Firmware)
Qty:
In Stock

Similar Products

The Attero Tech UND6IO-BT is a 4x2 channel 2 gang US wall plate with Bluetooth® and with UDP 3rd party control. This particular unit comes in a white finish.

The unD6IO-BT Danteâ„¢ Audio Interface with Bluetooth is an affordable multi-IO wall box. The unD6IO-BT is equipped with stereo Bluetooth wireless audio input connectivity as well as 2 RCA line level inputs and a 3.5mm TRS line level input. A 3.5mm TRS line level output on the front plus 2 balanced line-level outputs on the side of the unit are also included. The unD6IO-BT is designed to fit into most dual gang US junction boxes and is PoE enabled, so all connectivity (power, control, and audio data) is provided by a single CAT-5e/6 cable. The unD6IO-BT's unique mix of consumer style wired and wireless connectivity allows easy connection of a wide variety of user devices to a Dante network - with no concerns about ground loops or other audio problems common with consumer devices.

Applications:

  • Convenient, wall-mounted Bluetooth interface for:
    • Hotel ballrooms
    • Conference/meeting centers
    • Restaurants and bars
    • Sports, spa and fitness facilities
    • Convention centers

Attero Tech unD6IO-BT (White/UDP Control Firmware) Features:

  • Simple pairing one button pairing/connect process for standalone operation with LED indication of connection status
  • Defeatable pairing button for restricted use applications with 3rd party control systems
  • Customizable Bluetooth-friendly name in applications with co-located unD6IO-BTs
  • Compatible with most smartphones, Apple iPads, and Android tablets
  • (2) RCA inputs and one 3.5mm stereo input
  • One 3.5mm stereo output on the front, and two balanced outputs on a side-mounted depluggable connector. All outputs feature software controlled volume
  • 802.3af compliant PoE powered to work with anycompliant PoE network switch
  • RCA inputs and 3.5mm input (carried as stereo) can be selected via software, individually or in combination, as an audio flow
  • Bluetooth audio is carried as stereo onto the Dante network

Attero Tech unD6IO-BT Specifications:

  • Bluetooth® Profile: A2DP - Stereo audio is streamed from a Bluetooth device and onto the Dante network
  • RCA and 3.5mm Inputs: RF filtered line level, input source software selectable
  • Maximum Input Levels (3.5mm/RCA): +12 dBu
  • Depluggable Output Type: Balanced line level with automatic muting on loss of Dante signal (located on the side of the unD6IO-BT)
  • Output Volume Range: 0 dB to -60 dB in 1 dB steps, software selectable
  • Output Noise: <-90dBu @ 0 dB gain
  • Maximum Output Level (balanced depluggable): +20 dBu
  • 3.5mm Output: RF filtered line level
  • Maximum Output Level (3.5mm): +12 dBu
  • System THD: <.02% at any gain, input signal 3 dB below maximum (wired I/O only)
  • Certifications: FCC 47CFR Parts 15B and 18 (Class A), EN55011, ICES-003, CE (EN55022 Class A and EN55024 Class A)
  • Dimensions (W x H x D): 3.54" x 4.2" x 1.88"
  • Operating Temperature: 0° C - 40° C
  • Audio Flow Diagram (Bluetooth Audio Source sold separately):
