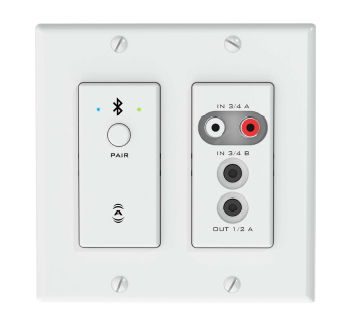

Attero Tech UND6IO-BT-W-C
4x2 Channel 2-Gang US Wall Plate With Bluetooth, Dante Proprietary Control, White


The Attero Tech UND6IO-BT-W-C 4 x 2 channel 2 gang US wall plate with bluetooth and with Dante proprietary control, color white.
Learn More
Our Price: $775.00
List Price: $969.00
You save 20%!
Write the first review.
Attero Tech UND6IO-BT-W-C
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Attero Tech UND6IO-BT-W-C 4 x 2 channel 2 gang US wall plate with bluetooth and with Dante proprietary control, color white.

Note: Image shown is for display purposes only. For more information please contact your Full Compass Sales Pro.

The Attero Tech unD6IO-BT Dante™ Audio Interface with Bluetooth is a cost effective multi-IO wall box. The unD6IO-BT features stereo Bluetooth® wireless audio input connectivity along with two RCA line level inputs and a 3.5mm TRS line level input. A 3.5mm TRS line level output on the front plus two balanced line level outputs on the side of the unit are also included. The unD6IO-BT is designed to fit into most dual gang US junction boxes and is PoE enabled, so all connectivity (power, control and audio data) is provided by a single CAT-5e/6 cable. The unD6IO-BT’s unique mix of consumer style wired and wireless connectivity allows easy connection of a wide variety of user devices to a Dante network - with no concerns about ground loops or other audio problems common with consumer devices.

Attero Tech unD6IO-BT Features:

  • Simple pairing one button pairing/connect process forstandalone operation with LED indication of connection status
  • Defeatable pairing button for restricted useapplications with 3rd party control systems
  • Customizable Bluetooth® friendly name in applicationswith co-located unD6IO-BTs
  • Compatible with most smartphones, Apple iPads, andAndroid tablets
  • Two RCA and one 3.5mm stereo input
  • One 3.5mm stereo output on the front, and twobalanced outputs on a side-mounted depluggable connector. All outputs featuresoftware controlled volume
  • 802.3af compliant PoE powered to work with anycompliant PoE network switch
  • RCA inputs and 3.5mm input (carried as stereo) can beselected via software, individually or in combination, as an audio flow (seeAudio Flow diagram)
  • Bluetooth™ audio is carried as stereo onto the Dante network

Attero Tech unD6IO-BT Specifications:

  • Bluetooth® Profile: A2DP - Stereo audio is streamedfrom a Bluetooth® device and onto the Dante network
  • RCA and 3.5mm Inputs: RF filtered line level, inputsource software selectable
  • Maximum Input Levels (3.5mm/RCA): +12dBu
  • Depluggable Output Type: Balanced line level withautomatic muting on loss of Dante signal (located on the side of theunD6IO-BT)
  • Output Volume Range: 0dB to -60dB in 1dB steps,software selectable
  • Output Noise: <-90dBu @ 0dB gain
  • Maximum Output Level (balanced depluggable): +20dBu
  • 3.5mm Output: RF filtered line level
  • Maximum Output Level(3.5mm): +12dBu
  • System THD: <.02% at any gain, input signal 3dBbelow maximum (wired I/O only)
  • Certifications: FCC 47CFR Parts 15B and 18 (Class A),EN 55011, ICES-003, CE (EN55022 Class A and EN55024 Class A)
  • Dimensions: 3.54” W x 4.2” H x 1.88” D
  • Operating Temperature: 0°C - 40°C
