Attero Tech unDNEMO-BT
Dante Network Monitor, 64-Channel, With USB And Bluetooth


Our Price: $839.00
List Price: $1,049.00
You save 20%!
Write the first review.
Attero Tech unDNEMO-BT
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

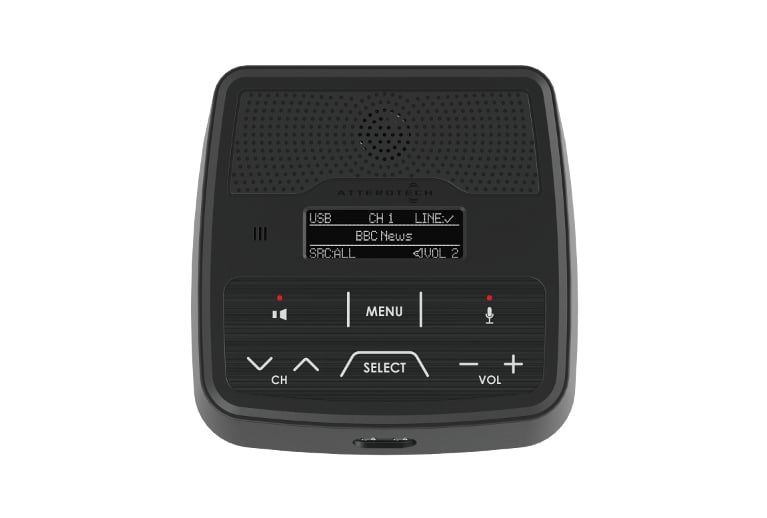

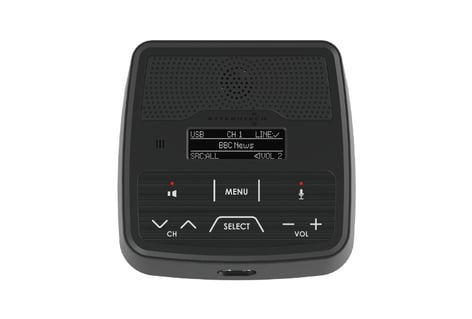

The Attero Tech unDNEMO-BT Bluetooth® Dante™ Network Monitor is an audio monitoring solution aimed at providing end users with a simple solution for selection and monitoring of up to 64 Dante audio channels. The unDNEMO-BT can also be used as a hands free USB soft-conferencing device. The addition of full duplex Bluetooth® audio connectivity allows Bluetooth® headsets to be used with the unDNEMO-BT for wireless listening. The unDNEMO-BT has two network connections to allow Dante Daisy Chaining. The Windows -hosted unIFY GUI is available for system setup, and can select any names for the audio flows to replace the native Dante flow names if desired. The unDNEMO-BT is powered by either external +24VDC or any PoE network switch.

Attero Tech UNDNEMO-BT Features:

  • User selectable reception of one of up to 64 Dante audio channels
  • Internal monitoring speaker and built-in microphone
  • Full analog and Bluetooth® headset I/O, plus a local line-level analoginput. Simple Bluetooth pairing
  • Customizable Bluetooth® friendly name for applications with co-located unDNEMO-BTs
  • Volume, channel, source select and mute buttons
  • Easy to read OLED display for presentation of channel names, volume settings and configuration
  • Full duplex USB audio for PC audio content and soft conferencing applications
  • PoE powered to work with any compliant 802.3af PoE network switch ormid-span injector, external +24VDC supply
  • Dante Daisy Chaining allows multiple unDNEMO-BTs, as well as other AtteroTech daisy chain enabled devices, to be connected over a single home-run to the Ethernet switch

Attero Tech unDNEMO-BT Specifications:

  • Bluetooth® Profile: A2DP - Stereo audio to the Dante network, and HSP Bluetooth® headset support
  • Number of Dante Channels: User can select and listento one channel out of up to 64 different Dante audio channels.
  • Audio Monitoring: Internal speaker (with 2.8Wamplifier) or analog headset via easy access front panel connector.
  • Microphone: Internal high sensitivity microphone,external microphone via front panel connector, or Bluetooth headset.
  • Line In: Auxiliary 3.5mm stereo analog line level input
  • User Controls: Volume up/down, channel up/down, mute for speaker and for mic, select and menu
  • Display/Keypad: High visibility OLED display with adjustable backlight brightness. Keypad also has adjustable backlight brightness.
  • USB Connector: Type mini-B
  • USB Audio Connectivity: USB Audio 1.1, compatible with Windows 7, 8 and 10,OSX V10.7 or newer
  • PoE Class: Class 0 802.3af PoE PD compliant
  • Dimensions: 3.54” W x 4.2” H x 1.88” D
  • Operating Temperature: 0°C - 40°C
