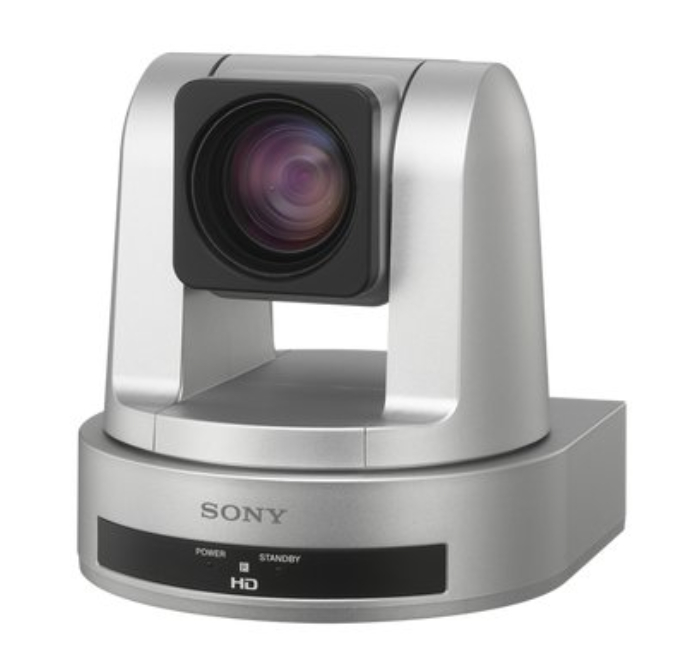

Sony SRG120DS
12x 1080p 3G-SDI PTZ Camera

OUR PART #  SRG120DS

Our Price: $2,101.24
List Price: $2,449.00
You save 14%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Sony continues to expand its popular SRG PTZ Camera line up with the introduction of the SRG-120DS 3G-SDI HD PTZ Camera. This affordable professional 1080/59.94p Full HD and 71°wide field of view desktop camera is designed for videoconferencing, healthcare training, monitoring and consultative purposes as well as lecture capture applications. The SRG-120DS camera inherits the same enhanced features found in the existing SRG family of cameras, but is equipped with 3G-SDI for long distance system integration.

Sony SRG120DS Specifications:

  • Image Device: 1/2.8 Exmore CMOS Sensor
  • Effective Pixels: Approximately 2.1 megapixels
  • Lens: 12x Optical Zoom/12x Digital Zoom
  • Lens Value: Focal Length 3.9mm F (wide) / 46.8mm F (tele) / F1.8 to 2.0
  • Minimum Object Distance: 10mm (wide end) / 1500mm (tele end)
  • Auto Exposure: Auto/Manual/Priority AE/Exposure Compensation Bright
  • Shutter Speed:
    • 1/1 to 1/10000 sec (59.94 Hz system)
    • 1/1 to 1/10000 sec (50 Hz system)
  • Gain: Auto/Manual (0 to +43dB)
  • White Balance: Auto, Indoor, Outdoor, One-push Auto, ATW, Manual
  • Pan Angle/Speed: +/- 100°
  • Tilt Angle/Speed: +25° / -25°
  • Horizontal Viewing Angle: 71° (Wide)
  • Preset Positions: 16 presets
  • Focus System: Auto/Manual
  • Sync System: INT
  • Wide Dynamic Range: Yes (View-DR)
  • Camera Control Interface:
    • VISCA Protocol with built-in IP Control
    •  RJ-45 / RS-232C
  • Video Output Specifications:
    • Horizontal Resolution: 1,000 TV Line (Center)* Typical
    • Minimum Illumination:
      • High Sensitivity Mode: 0.4 lx (50 IRE, F1.8, 30 FPS)
      • Normal Mode: 1.8 lx (50 IRE, F1.8, 30 FPS)
    • S/N Ratio: 50 dB
    • Video Output:
      • HD - 3G-SDI
      • SD - NA
    • Signal System:
      • 1080/59.94p, 50p, 29.97p, 25p
      • 1080/59.94i, 50i
      • 720/59.94p, 50p, 29.97p, 25p
    • Horizontal Resolution Value: High Definition
    • Minimum Resolution: 1.8 lx (50 IRE, F1.8, 30 fps)
  • General Specifications:
    • Dimensions (WxHxD): 153 x 156 x 153 mm
    • Weight: Approximately 1,600g
    • Power Requirements: DC 12V
    • Power Consumption: 16.8W
    • Operating Temperature: 0° C to 40°C (32°F to 104°F)
    • Storage Temperature: -20°C to +60° C (-4° F to 140°F)
IP Remote Controller for BRC Series PTZ CamerasSony RM-IP10 IP Remote Controller for BRC Series PTZ Cameras

With the RM-IP10 IR Remote Controller from Sony, the BRC-H900, BRC-Z700, and BRC-Z330 cameras can be controlled though an IP network. The use of the proper IP Control Interface Board, either the BRBK-IP10 or BRBK-IP7Z (depending on camera ...

In Stock

Free Shipping Available

Our Price:$1,922.91List Price: $2,060.00You save 7%!

Remote Control Unit for Sony CamerasSony RM-BR300 Remote Control Unit for Sony Cameras

The Sony RM-BR300 remote control unit can control the Sony PTZ cameras, either individually or daisy-chained. This stylish controller has a Sony ergonomic, easy-to-use design and features a joystick. The control interfaces are RS-232C and ...

In Stock

Free Shipping Available

Our Price:$1,369.30List Price: $1,620.00You save 15%!

Sony SRG120DS
12x 1080p 3G-SDI PTZ Camera

OUR PART #  SRG120DS

Product Information:

Sony continues to expand its popular SRG PTZ Camera line up with the introduction of the SRG-120DS 3G-SDI HD PTZ Camera. This affordable professional 1080/59.94p Full HD and 71°wide field of view desktop camera is designed for videoconferencing, healthcare training, monitoring and consultative purposes as well as lecture capture applications. The SRG-120DS camera inherits the same enhanced features found in the existing SRG family of cameras, but is equipped with 3G-SDI for long distance system integration.

Sony SRG120DS Specifications:

  • Image Device: 1/2.8 Exmore CMOS Sensor
  • Effective Pixels: Approximately 2.1 megapixels
  • Lens: 12x Optical Zoom/12x Digital Zoom
  • Lens Value: Focal Length 3.9mm F (wide) / 46.8mm F (tele) / F1.8 to 2.0
  • Minimum Object Distance: 10mm (wide end) / 1500mm (tele end)
  • Auto Exposure: Auto/Manual/Priority AE/Exposure Compensation Bright
  • Shutter Speed:
    • 1/1 to 1/10000 sec (59.94 Hz system)
    • 1/1 to 1/10000 sec (50 Hz system)
  • Gain: Auto/Manual (0 to +43dB)
  • White Balance: Auto, Indoor, Outdoor, One-push Auto, ATW, Manual
  • Pan Angle/Speed: +/- 100°
  • Tilt Angle/Speed: +25° / -25°
  • Horizontal Viewing Angle: 71° (Wide)
  • Preset Positions: 16 presets
  • Focus System: Auto/Manual
  • Sync System: INT
  • Wide Dynamic Range: Yes (View-DR)
  • Camera Control Interface:
    • VISCA Protocol with built-in IP Control
    •  RJ-45 / RS-232C
  • Video Output Specifications:
    • Horizontal Resolution: 1,000 TV Line (Center)* Typical
    • Minimum Illumination:
      • High Sensitivity Mode: 0.4 lx (50 IRE, F1.8, 30 FPS)
      • Normal Mode: 1.8 lx (50 IRE, F1.8, 30 FPS)
    • S/N Ratio: 50 dB
    • Video Output:
      • HD - 3G-SDI
      • SD - NA
    • Signal System:
      • 1080/59.94p, 50p, 29.97p, 25p
      • 1080/59.94i, 50i
      • 720/59.94p, 50p, 29.97p, 25p
    • Horizontal Resolution Value: High Definition
    • Minimum Resolution: 1.8 lx (50 IRE, F1.8, 30 fps)
  • General Specifications:
    • Dimensions (WxHxD): 153 x 156 x 153 mm
    • Weight: Approximately 1,600g
    • Power Requirements: DC 12V
    • Power Consumption: 16.8W
    • Operating Temperature: 0° C to 40°C (32°F to 104°F)
    • Storage Temperature: -20°C to +60° C (-4° F to 140°F)
