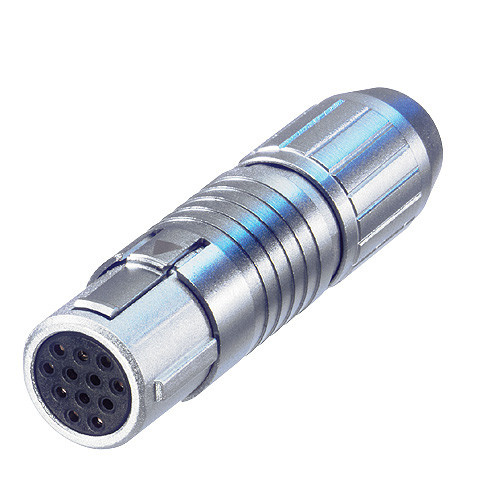

Neutrik MSCF12
12-Pole miniCON Female Cable Connector

OUR PART #:  MSCF12

The MSCF12 from Neutrik is a 12-pole miniCON female cable connector with a chuck type strain relief and solder contacts.
Learn More
Sale Price: $13.50
List Price: $17.28
You save 22%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik MSCF12
Qty:
Similar Products

The MSCF12 from Neutrik is a 12-pole miniCON female cable connector with a chuck type strain relief and solder contacts.

With its flexible and compact design, the MSCF12 is well-suited for multipin/industrial applications. This rugged all metal miniature connector offers a push-pull locking device and stands out with an excellent cost/performance ratio.

Neutrik MSCF12 miniCON Female Cable Connector Features:

  • Easy assembly: contact soldering / crimping in disassembled condition avoids awkward wiring of high density contacts
  • Velour chromium housing
  • Push-pull self-locking system
  • Rugged, precisely machined all metal design
  • Gold plated contacts

Neutrik MSCF12 miniCON Female Cable Connector Specifications:

  • Electrical Specifications:
    • Contact resistance: = 8 mOhms
    • Dielectric strength: 1 kVdc
    • Insulation resistance: > 0.5 GOhms
    • Rated current per contact: 3 A
    • Rated voltage: < 50 V
  • Mechanical Specifications:
    • Cable O.D.: 3 - 5 mm (grey chuck), 5 - 7 mm (white chuck)
    • Cable retention: > 20 N
    • Insertion force: < 25 N
    • Wiresize: 20 AWG
    • Wiring: Solder contacts
    • Locking device: Push-Pull
  • Material Specifications:
    • Contact plating: 0.2 µm AuCo
    • Contacts: Bronze (CuSn6)
    • Insert: Polyamide (PA 6.6)
    • Shell: Zinc diecast / Brass (ZnAl4Cu1 / CuZn39Pb3)
    • Strain relief: Polyacetal (POM)
  • Environmental Specifications:
    • Flammability: UL 94 V-0
    • Protection class: IP 5X
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30°C to +80°C
