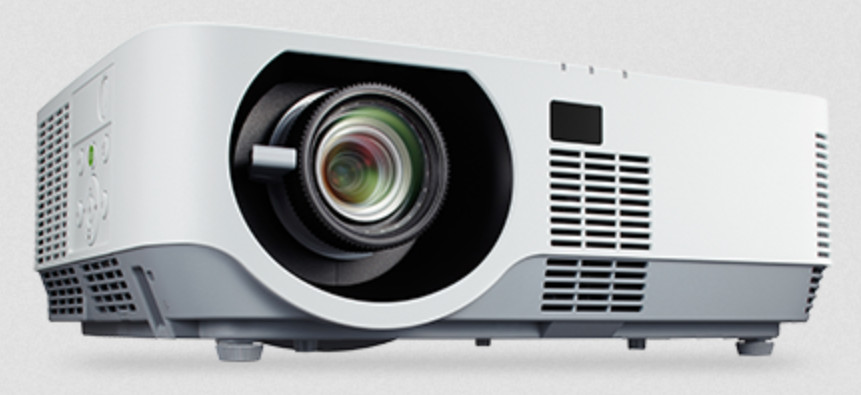

NEC Visual Systems NP-P502H
5000-Lumen Full HD DLP Projector

OUR PART #:  NP-P502H

The NEC Visual Systems NP-P502H (5000 lumens) gives your presentations a boost in brightness.
Learn More
Our Price: $2,099.00
List Price: $2,309.00
You save 9%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

NEC Visual Systems NP-P502H
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The NEC Visual Systems NP-P502H (5000 lumens) gives your presentations a boost in brightness. A widescreen professional installation projector loaded with eco-friendly and advanced technologies makes it ideal for higher education classrooms, corporate boardrooms and government training rooms. Advanced installation features such as horizontal & vertical lens shift provides even great installation flexibility. Adding horizontal & vertical keystone keeps the image square on the screen if installation challenges exist.

NEC Visual Systems NP-P502H Includes:

  • Remote control
  • Batteries
  • Power cord
  • RGB signal cable
  • User manual
  • Quick Start Guide
  • Important Info
  • Product registration card
  • Security Stricker

NEC Visual Systems NP-P502H Features:

  • Dual HDMI inputs (with HDCP) ensures quick switching between presentations
  • 6,000:1 Contrast Ratio creating extremely detailed images
  • Built-in HDBaseT enables simplified installations with a single cable for video, audio, and control signals: LAN connection for control and asset management over the network
  • 5000-hour filter drastically reduces cleaning frequency, thereby decreasing the total cost of ownership
  • Variable audio-out allows the remote control to adjust speaker volume
  • Eco-friendly features, minimal maintenance and cost savings mean these projectors are still great for demanding integration applications such as higher education and corporate
  • Powerful 20W speakers provide volume needed for large rooms
  • Horizontal & Vertical lens shift enables flexible projector placement
  • IEU Lite (Image Express Utility Lite) for audio and video transmission from a computer to the projector over the network
  • NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
  • Manual keystone correction
  • Wireless LAN
  • USB Viewer
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense

NEC Visual Systems NP-P502H Specifications:

  • Optical:
    • Display Technology: DLP (0.65" DMD)
    • Light Output(Lumens): 5000 normal
    • Resolution:
      • Native: 1080p 1920 x 1080
      • Maximum: WUXGA 1920 x 1200
    • Contrast Ratio (up to): 6000:1 with lamp control
    • Lamp Type: 375W AC
    • Lamp Life (up to): 5,000 hours
    • Screen Size (diagonal): 30" to 300" (0.76 to 7.6m)
    • Throw Ratio: 1.24 to 2.1
    • Projection Distance: 2.6 to 46.6 ft. (0.8 to 14.2m)
    • Projector Angle:
      • Tele: 7.5° to 7.7°
      • Wide: 12.8° to 13.1°
    • Lens:
      • Zoom: 1 to 1.7
      • Focus: Manual
      • F number, fnumber: F=2.0, f=18.2 to 31.1mm
      • Shift: Mechanical +0.59 vertical, +/-0.28 horizontal
    • Keystone Correction: +/- 25° horizontal, +/- 30° vertical
  • Signal compatibility/Connectivity:
    • Synchronization Range:
      • Horizontal (Analog/Digital): 15-100 kHz/15-153 kHz
      • Vertical (Analog/Digital): 50-120 Hz/24-120 Hz
    • Supported Video Standards: NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
    • SD/HD Video Signal Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    • PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
    • Macintosh Compatibility: Yes
    • Input/Output Terminals:
      • RGB1(analog): VGA 15-pin D-sub
      • RGB2(digital): HDMI w/HDCP
      • RGB3(digital): HDMI w/HDCP
      • RGB4(digital): HDBaseT
      • Video 1: RCA
      • Audio 1: RCA
      • Audio 2: 1/8" stereo
      • Monitor out: VGA 15-pin D-sub
      • Audio out: 1/8" stereo (Variable audio out)
    • Audio: 20W speaker
    • External Control: RS-232, IR, DDC/CI, USB, LAN
    • Sync Compatiblity: Separate Sync / Composite Sync / Sync on G
    • Networking: RJ-45 Monitoring
  • Electrical:
    • Power Requirements: 100-240V AC, 50/60 Hz
    • Input Current: 5.4-2.2A
    • Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 465W / 311W / 2.7W / 0.26W
  • Mechanical:
    • Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
    • Dimensions (WxDxH): 14.3" x 11.9" x 5.0" (362 x 302 x 128mm)
    • Net Weight: 12.1 lbs. (5.5 kg)
    • Fan Noise: 39 dB normal / 31 dB eco
    • Regulations: USA UL 60950-1 / FCC Part15 Class B, Canada CSA 60950-1 / ICES-003 Class B, NOM
  • Environmental:
    • Operating Temperature: 41°-104°F (5°-40°C)
    • Humidity: 20-80% non-condensing
    • Storage: 14°-122°F (-10°-50°C)
  • Limited Warranty: 3 years (excluding consumables). First year Instacare Service
