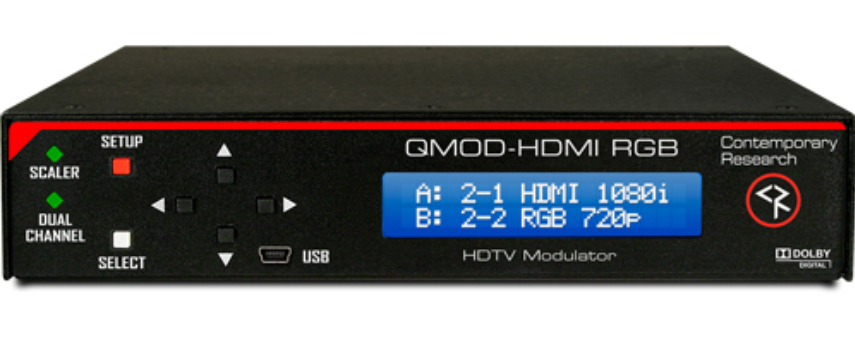

Contemporary Research Co. CRC-QMOD-HDMIRGB
HDTV Modulator

OUR PART #:  CRC-QMOD-HDMIRGB

The Contemporary Research dual-channel QMOD-HDMI RGB, with one non-encrypted HDMI and one RGBHV/Component input, sets a new standard for sports...
Learn More
Our Price: $1,976.00
List Price: $2,135.00
You save 7%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Contemporary Research Co. CRC-QMOD-HDMIRGB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Contemporary Research dual-channel QMOD-HDMI RGB, with one non-encrypted HDMI and one RGBHV/Component input, sets a new standard for sports, motion and digital signage encoding. Dual hardware scalers accept content up to 1080p, shapes VGA signage for edge-to-edge presentation, and compensates for non-broadcast and PAL refresh rates. Able to deliver two HD programs in one channel, the QMOD-HDMI 1.5 can also output the content as a Multicast or Unicast IPTV stream. Options include dual-language SAP audio, easy front-panel setup and alternate audio and NTSC video inputs. Web setup, monitoring, and firmware updates are available via USB and Ethernet ports. Two-across mounting offers up to four programs per rack space, with the ability to mix models to handle HDMI, SDI, Component, RGBHV and NTSC video sources.

Contemporary Research CRC-QMOD-HDMIRGB Includes:

  • PS12-2 Switching power supply
  • 2A 12 VDC
  • Standard AC cord for power strips

Contemporary Research CRC-QMOD-HDMIRGB Features:

  • Sources:
    • One HDMI (non-HDCP) input, up to 1080p video and audio
    • One RGBHV/Component input, up to 1080p video
    • Two Composite video inputs for encoding, captioning, or EAS use
    • Two sets of stereo and SPDIF coax audio inputs
  • Encoding:
    • Creates a high-definition 720p/1080i MPEG-2 stream for broadcast
    • Accepts stereo or PCM audio and converts to AC-3, with SAP dual-language capability
    • Includes captioning from Line 21 data on composite video inputs
    • Dual hardware scalers enable precise formatting of digital signage for edge-to-edge presentation, accepts up to1080p video, as well as VGA, 60/30 Hz, and PAL video, and can deliver programs at a set resolution
    • Dual-channel operation is standard, creates one physical channel with two HD programs
  • Output:
    • Up to 270 HD Programs, 135 Channels per system
    • Delivers a fully agile QAM 64/256 digital cable channel 2-135
    • Streams Muticast and Unicast IPTV from GigE Ethernet port
    • Distributes channel over an on-site broadband cable system with adjustable output level to 29 dBmV, compatible with all cable format broadband systems
  • Operation:
    • Sets up with front-panel buttons and easy to use menus, including inputs, encoding, channel, and RF options.
    • Onboard Web page for setup and monitoring
    • Update firmware from USB or Ethernet
    • Fan cooled, with adjustable speed
    • Saves power and rack space using efficient design
    • Includes compact switching power supply
    • Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19” rack kits
    • Meets RoHS safety and California energy standards
    • Tips on integrating the new generation of QMOD techology

Contemporary Research CRC-QMOD-HDMIRGB Specifications:

  • Physical:
    • Dimensions (WxHxD): 8.5” x 1.73” x 6.0” (216 x 62 x 153mm)
    • Weight: 1.5 lbs [0.68kg]
    • Operating Temerature: +32°-122° F, convection cooled
    • Rack mounting for one or two units side-by-side optional (RK1, RK2EZ)
    • For HRF Half-Racks, use the RK2EZ kit to mount each tuner
    • Fan cooled, with adjustable speed
  • Scaling:
    • Dual hardware scalers
    • Accepts 1080p - 480i and VGA resolutions, 29.97 - 60 Hz US and PAL refresh rates
    • Edge to edge presentation with zoom, shrink and X/Y axis positioning
    • Auto-sync or sales to fixed output resolution, 1080p scaled to 1080i
  • Front Panel:
    • Select and directional buttons for menu setup
    • Menu LCD, Blue with 2 lines of 20 white characters each
  • Back Panel:
    • Power: 2.1mm coaxial jack (inside center conductor positive)  1.1A maximum, 11.5 to 13.5 VDC, 12 VDC typical
    • EAS: 3 GPI Pins for latching control, SW(NO) for closure, V+ 5-12 VDC, Ground
    • Ethernet: RJ-45 GigE Ethernet connector for IP control, Multicast/Unicast IPTV and internal Web page
    • HDMI: (non-HDCP), up to 1080p, embedded PCM and AC-3 audio
    • HD15 RGBHV/Component: Input up to 1080p, 59.94/60, 29.97/30 Hz, Component on pins 1-3
    • Composite Video: RCA female  NTSC/PAL (480i), 29.97 Hz, also used for Line 21 captioning data
    • SPDIF Audio: Two Digital SPDIF Coax RCA jacks, PCM/AC-3 48/44.1K sample rate
    • Stereo Audio:
      • Two stereo analog RCA inputs
      • Inputs assignable to video inputs
