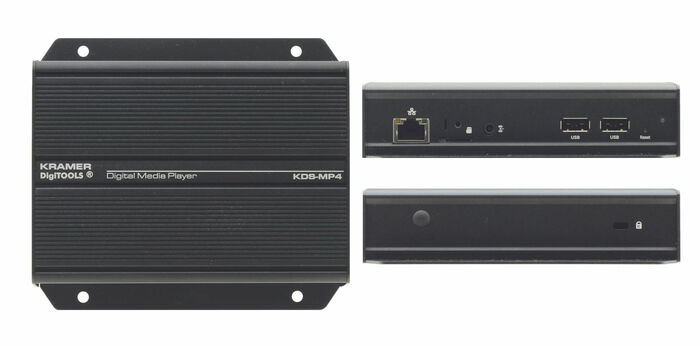

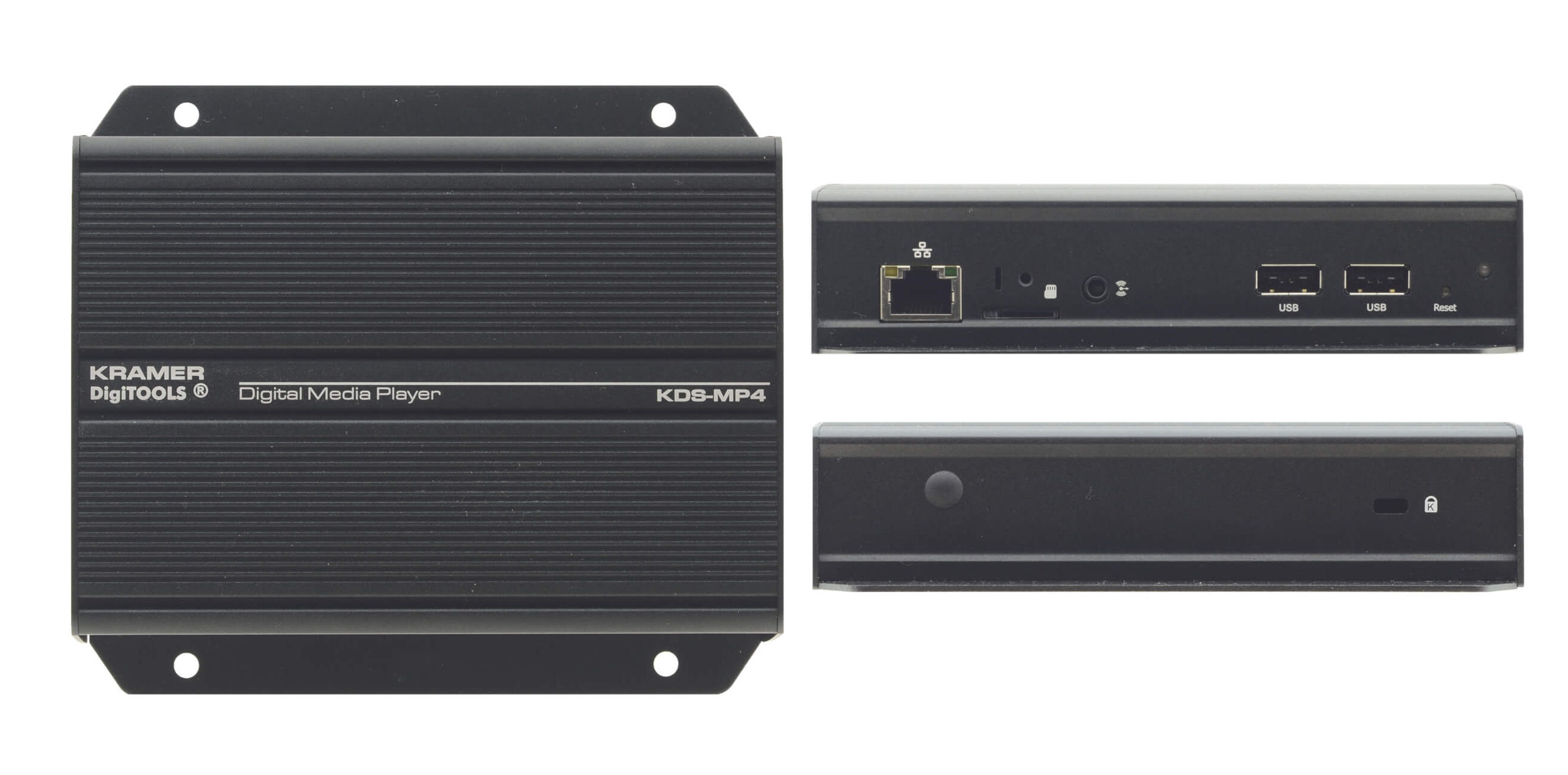

Kramer KDS-MP4
4K UHD Digital Signage Media Player

OUR PART #:  KDS-MP4

The Kramer KDS-MP4 is a high-quality LAN-based digital signage media player.
Learn More
Our Price: $956.00
List Price: $1,195.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer KDS-MP4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer KDS-MP4 is a high-quality LAN-based digital signage media player. The unit receives content from the Media Manager software installed on the PC, either via LAN or from an external USB memory stick, loads it into its internal memory and then displays it with image quality of up to 4K UHD via HDMI output.

Kramer KDS-MP4 Includes:

  • AC adapter
  • HDMI cable
  • Four Velcro (2 sets)

Kramer KDS-MP4 Features:

  • 4K UHD Support
  • High Quality HDMI Video & Audio
  • Codec Format Support - MPEG-1, MPEG-2, MPEG L2, MP3, H.264/MPEG-4, and VC-1
  • Memory Options - 8GB internal
  • NTP Client - For time synchronization
  • Integrated SMIL Control - CMS device management in LAN environments
  • SMIL 3.0 Instruction (Sub-Set) Support
  • CMS Device Management - In LAN environments using the integrated SMIL control
  • Perforated Side Panel - For efficient heat dissipation
  • VESA Standard Mounting Bracket - For mounting on-wall, inside a cabinet or to the VESA standard screw holes on the rear panel of a display
  • Media Manager Software - For easy, powerful and versatile management of digital signage content via a PC
  • Media-Manager Multi-language Support - Ready-made templates for screen layouts, logos, tickers and widgets
  • Compact DigiTOOLS® - Built-in mounting bracket

Kramer KDS-MP4 Specifications:

  • I/O Connectors:
    • One HDMI
    • Two USB 2.0
    • One Ethernet on a RJ-45 connector
    • One unbalanced stereo audio on a 3.5mm mini jack
    • micro SD card slot
  • Video Format Support:
    • POPAI Screen Media Standards
    • S6 (MPEG-1 SIF, 3Mbps CBR)
    • S7 (MPEG-1 480p, 10Mbps CBR)
    • S8 (MPEG-1 720p, 15Mbps CBR)
    • S9 (MPEG-2 480p, 6Mbps CBR)
    • S10 (MPEG-2 720p, 12Mbps CBR)
    • S11 (MPEG-4 AVC, 480p, 6Mbps CBR)
    • S12 (MPEG-4 AVC, 720p, 10Mbps CBR)
    • E4 (VC-1/WMV9, MP @ ML, 720p)
    • E7 (MPEG-4 ASP, 480p, 10Mbps CBR)
    • E8 (MPEG-4 AVC, 1080p, 10Mbps CBR)
  • Image Format Support:
    • POPAI Screen Media Standards
    • S1 (JPEG 480p baseline)
    • S2 (JPEG 720p baseline)
    • S3 (JPEG 1080p baseline)
    • E1 (PNG 24bpp+alpha, 480p)
    • E2 (PNG 24bpp+alpha, 720p)
    • E3 (PNG 24bpp+alpha, 1080p)
  • Audio Codec Support:
    • POPAI Screen Media Standards
    • S4 (MPEG L2 audio)
    • S5 (MP3 audio, 320Kbps)
  • Dynamic Content:
    • W3C HTML5 (HTML, CSS, JavaScript)
    • W3C SMIL 3.0 instructions (sub-set)
  • Indicators:
    • Power(green)
    • Status(orange)
  • Local Storage:
    • 8 GB on-board flash memory (up to 6hrs of typical 720p video @3Mbps)
    • Micro SD card expansion slot
  • Power Requirement: 12V 1.5A DC
  • Power Consumption: 6W
  • Operating Temperature: 32°-113°F (0°-45°C)
  • Storage Temperature: -40°-158°F (-40°-70°C)
  • Humidity:
    • 10 – 85% @40°C
    • 32° to 104°F non-condensing
  • Safety: UL/FCC/CE/CCC/C-Tick/VCCI certified power supplies
  • Certifications: CE/FCC/VCCI/TELEC/CCC/IC
  • Warranty: One-year limited parts & labor
  • Product Dimensions (WxDxH): 5.47" x 5.08" x 1.22" (13.90 x 12.90 x 3.10cm)
  • Product Weight: 1.1lbs (0.5kg) approx
  • Shipping Dimensions: 13.58" x 8.27" x 2.68" (34.50 x 21 x 6.80cm)
  • Shipping Weight: 2.3lbs (1.0kg) approx
