Kramer VP-734
7-Input 4K UHD Presentation Switcher/Scaler

OUR PART #:  VP-734

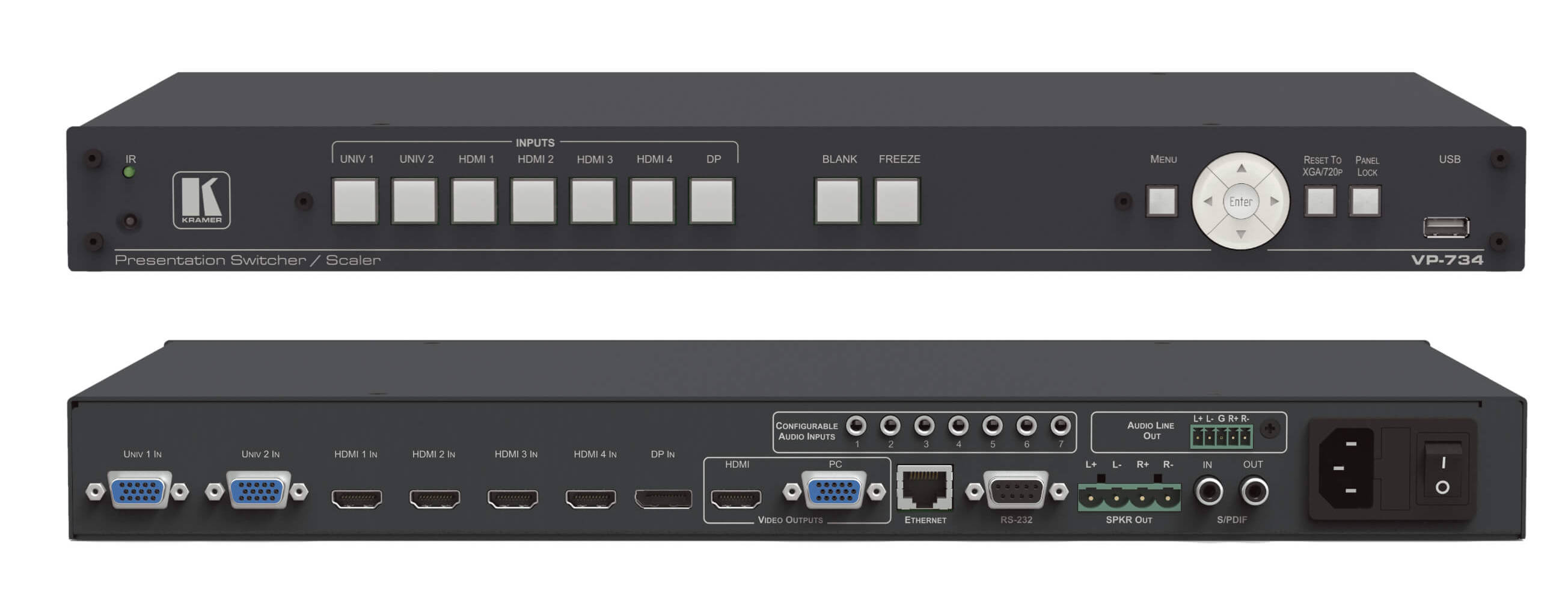

The Kramer VP-734 is a 7-input presentation switcher/scaler with four HDMI, one DisplayPort and two user-definable (universal) analog video inputs.
Learn More
Our Price: $1,560.00
List Price: $1,950.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VP-734
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer VP-734 is a 7-input presentation switcher/scaler with four HDMI, one DisplayPort and two user-definable (universal) analog video inputs. It up- and down-scales to selectable graphics or HDTV output resolutions (up to 4K UHD) and provides fast fade-thru-black switching between sources. VP-734 supports analog and embedded audio inputs and outputs and includes rich audio functionality and a stereo loudspeaker output.

Kramer VP-734 Includes:

  • Rack “ears”
  • IR remote control
  • Power cord

Kramer VP-734 Features:

  • Kramer’s PixPerfect™ Scaling Technology - Kramer’s precision pixel mapping and high quality scaling technology
  • Fast Fade-Thru-Black (FTB™) Switching - For smooth, glitch-free switching. The output signal provides constant sync so the display never glitches
  • HDTV Compatible. HDCP Compliant
  • Output Resolutions - With selectable refresh rates: up to 4K UHD
  • Scaled Video Outputs - HDMI and 15-pin HD computer graphics
  • Multiple Aspect Ratio Selections
  • Scales & Zooms
  • Seven Stereo Analog Audio Inputs - On 3.5mm connectors
  • Embed/De-embed Audio - On the HDMI and DisplayPort inputs and output
  • Advanced Noise Reduction Features - Improve video quality by reducing artifacts such as block, chroma and mosquito noise
  • Powerful Audio Features - With DSP technology including audio equalization, mixing, delay and so on. Audio breakaway and audio-follow-video support, selectable audio delay
  • Stereo Speaker Output - 10W per channel into 8?, on a 4-pin terminal block connector
  • Built-in Video Proc-Amp - Color, hue, sharpness, contrast, and brightness are set individually for each input
  • Firmware Upgrade - Ethernet-based, via a user-friendly software upgrade tool
  • OSD (On-Screen Display) - For user-friendly control and adjustments
  • Advanced EDID Management
  • AP for Text Overlay Support
  • USB Port - For use with flash drive to download custom splash-screens and video logos and for storing/downloading the machine configurations
  • Non-Volatile Memory - Saves final settings and setup configurations
  • Flexible Control Options - Front panel buttons, IR remote control, RS-232, Ethernet with Web browser
  • Worldwide Power Supply - 100-240V AC

Kramer VP-734 Specifications:

  • Inputs:
    • Four HDMI connectors
    • Two universal (composite
    • S-Video
    • Computer graphics and component) on 15-pin HD connectors
    • DP connector
    • S/PDIF on an RCA connector
    • Seven unbalanced stereo audio on 3.5mm mini jacks
  • Outputs:
    • HDMI connector
    • PC (computer graphics) on a 15-pin HD connector
    • Balanced audio stereo output on a 5 pin terminal block (+4dBu nominal)
    • Stereo speaker output (10W per channel into 8?) on a 4-pin terminal block connector
    • Digital S/PDIF output on an RCA connector
  • Ports:
    • USB connector
    • RS-232
    • Ethernet
  • Compliance with HDMI Standard: Supports HDMI and HDCP
  • Output Resolutions:
    • 640x480 60Hz 75Hz
    • 800x600 50Hz 60Hz 75Hz
    • 1024x768 50Hz 60Hz 75Hz
    • 1280x768 50Hz 60Hz
    • 1280x720 60Hz
    • 1280x800 60Hz
    • 1280x1024 50Hz 60Hz 75Hz
    • 1366x768 50Hz 60Hz
    • 1400x1050 50Hz 60Hz
    • 1600x900 60Hz
    • 1600x1200 50Hz 60Hz
    • 1680x1050 60Hz
    • 1920x1080 60Hz
    • 1920x1200 60Hz
    • 2048x1080 50Hz 60Hz
    • 3840x2160 24Hz 25Hz 29.97Hz 30Hz
    • 4096x2160 24Hz
    • 480px 60Hz 59.94Hz
    • 576px 50Hz
    • 720px 50Hz 60Hz 59.94Hz
    • 1080ix 50Hz 60Hz 59.94Hz
    • 1080px 50Hz 60Hz 50Hz 60Hz 24Hz 59.94Hz 23.98 29.97 59.94
  • Control:
    • Front panel buttons/OSD
    • IR remote control
    • RS-232 on a 9-pin D-sub connector
    • Ethernet
  • Additional Controls:
    • Freeze
    • Blank and zoom
    • Different selectable vertical refresh rates
    • Video and Audio ProcAmp control
    • Output image scaling and aspect ratio change
    • EDID capture
  • Power Source:
    • 100-240V AC
    • 50/60Hz
    • 49VA
  • Operating Temerature: 32°-104°F (0°-40°C)
  • Storage Temerature: -40°-158°F (-40°-70°C)
  • Humidity:
    • 10% to 90%
    • RHL non-condensing
  • Product Dimensions (WxDxH): 19" x 9.34" x 1U (43.6 x 23.72 x 4.36cm)
  • Product Weight: 5.4lbs (2.5kg) approx
  • Shipping Dimensions (WxDxH): 20.67" x 12.99" x 4.21" (52.50 x 33 x 10.70cm)
  • Shipping Weight: 7.5lbs (3.4kg) approx
