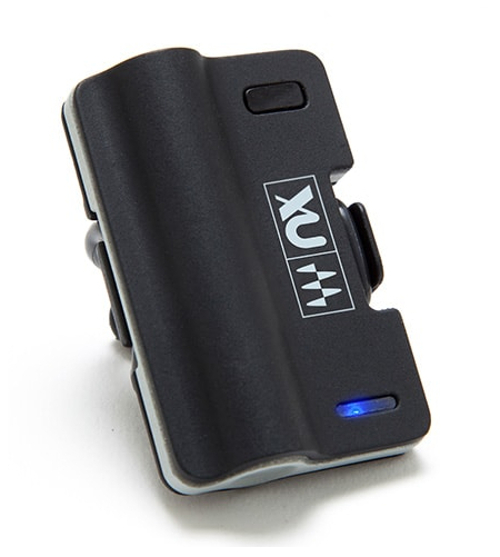

Waves Nx Head Tracker for Headphones Bluetooth Head Movement Tracking Device (Software Sold Separately)

The Waves Nx Head Tracker is a small Bluetooth device latches on to your headphones and tracks your head movements in order to augment the immersive 3D audio experience created by Nx technology.

Use the Nx Head Tracker along with the Nx Virtual Mix Room plugin in order to recreate on headphones the ideal spatial acoustics of a high-end room, improving your headphone mixing and recording experience.

Use the Nx Head Tracker along with the forth coming Nx application to experience the music, movies and games you love in 3D audio – on your computer, tablet or mobile device, using any set of headphones.

When you hear sounds in the real world, your physical head movements help your brain create a sense of three-dimensional audio depth.

When your head moves, your brain remembers where the sound used to be and where it is now, combines this with its knowledge that the head (and not the external source) has moved, and uses this information to locate the external source and construct a three-dimensional “audio scene.”

However, when you listen to sound on headphones, the audio scene constantly shifts with your head, and your experience of three-dimensional auditory space is gone.

By tracking your head movements and adjusting the audio to the direction and orientation of your head, the Nx Head Tracker (combined with Nx software) helps reconstruct the realistic three-dimensional audio experience of sounds coming at you from external sources in the real world.

Waves Nx Head Tracker Features:

• Augments the realism of Nx software for immersive 3D audio
• Tracks your head movements in 360 degrees (full sphere)
• Use it with the Nx Virtual Mix Room plugin to mix and monitor on headphones
• Use it with the Nx application to experience 3D audio on any headphones
• Allows up to 6 users, each with an Nx Head Tracker, to experience Nx simultaneously on the same audio source
• Requires Bluetooth 4.0 BLE

Waves Nx Head Tracker Specifications:

• Head Tracker
  • For Use With: Both stationary and mobile devices
  • CPU Consumption: Low
  • Tracking Angle: 360° (full sphere)
  • Tracking Speed (Refresh Rate): 50 frames per second (fps)
  • Lighting: Does not require lighting
  • Distance from Your Device: Approx. 10-20 feet, depending on Bluetooth range
  • Tracking Orientation and Position: 3 degrees of freedom: orientation only (yaw/pitch/roll)
• Webcam
  • For Use With: Stationary devices only (desktop or laptop)
  • CPU Consumption: High
  • Tracking Angle: 60° (+/-30°)
  • Tracking Speed (Refresh Rate): Up to 30 fps in good lighting conditions
  • Lighting: Sensitive to lighting conditions
  • Distance from Your Device: 3-6 feet, depending on lens field-of-view angle
  • Tracking Orientation and Position: 6 degrees of freedom: orientation (yaw/pitch/roll) + position ( XYZ)
• Sensor Fusion
  • For Use With: Stationary devices only (desktop or laptop)
  • CPU Consumption: High (slightly higher than webcam alone)
  • Tracking Angle: 360° (full sphere)
  • Tracking Speed (Refresh Rate): Up to 80 fps
  • Lighting: Minimally sensitive to lighting conditions (will not work in complete darkness, but will work even under poor lighting)
  • Distance from Your Device: 3-6 feet (same as webcam)
  • Tracking Orientation and Position: 6 degrees of freedom: orientation (yaw/pitch/roll) + position ( XYZ)
