Draper Shade and Screen 383508

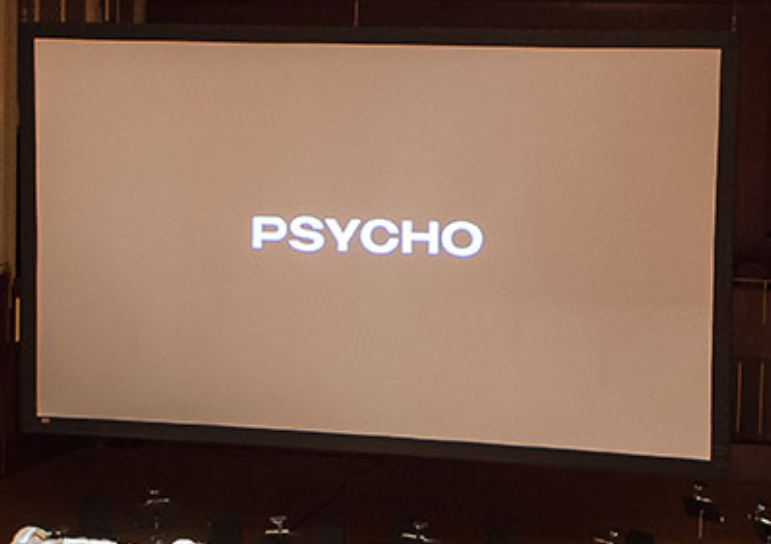

226", 16:10 StageScreen Portable Projection Screen

OUR PART #:  383508

The Draper Shade and Screen 383508 StageScreen Portable Projection Screen® is a totally new concept in projection screen design.
Learn More
Our Price: $4,027.00
List Price: $5,034.00
You save 20%!
Write the first review.
Draper Shade and Screen 383508
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Draper Shade and Screen 383508 StageScreen Portable Projection Screen® is a totally new concept in projection screen design. It is designed specifically to be flown, but can also be used with legs. Either way, it is the strongest and most rigid screen on the market.

StageScreen® features a revolutionary new viewing surface attachment method. Using the attached DuraLoop™ bungee cord loops with handy nylon pull-tabs, simply hook the surface to the posts on the frame. DuraLoops are longer lasting than traditional snaps, and provide even self-centering tension for the viewing surface. You’ll never want to use snaps again.

Draper Shade and Screen 383508 Features:

  • The StageScreen® utilizes an 8” truss that is significantly stronger than traditional truss folding screens
  • It is engineered to hold tolerance after repeated usage
  • Color coded frame sections ensure fast and easy assembly
  • Draper performed in-house testing of the strength of the StageScreen® truss compared to a folding truss screen. The results were dramatic: StageScreen® proved to be over 60% stronger, holding strong long after the folding truss failed
  • The image area of each screen is exact and true to format
  • StageScreen® can be assembled in about half the time of a comparable truss folding screen. See video below
  • No hinges, no snaps, and no Handy Cranks are required.
  • Frame sections are connected with permanently attached threaded links and guide pins. No lost handy cranks
  • Easy to follow color-coded assembly instructions are included with each StageScreen®
  • The viewing surface is stretched perfectly flat, resulting in the highest picture quality

Draper Shade and Screen 383508 Specifications:

  • Part number: 383508
  • Surface material: Matt White XT1000V
  • Image Format: 16:10
  • Diagonal size: 226"
  • Image/Viewable area: 120" x 192"
  • Overall size: 136.5" x 208.5"
  • Product weight: 176 pounds
  • Shipping weight: 178 pounds
