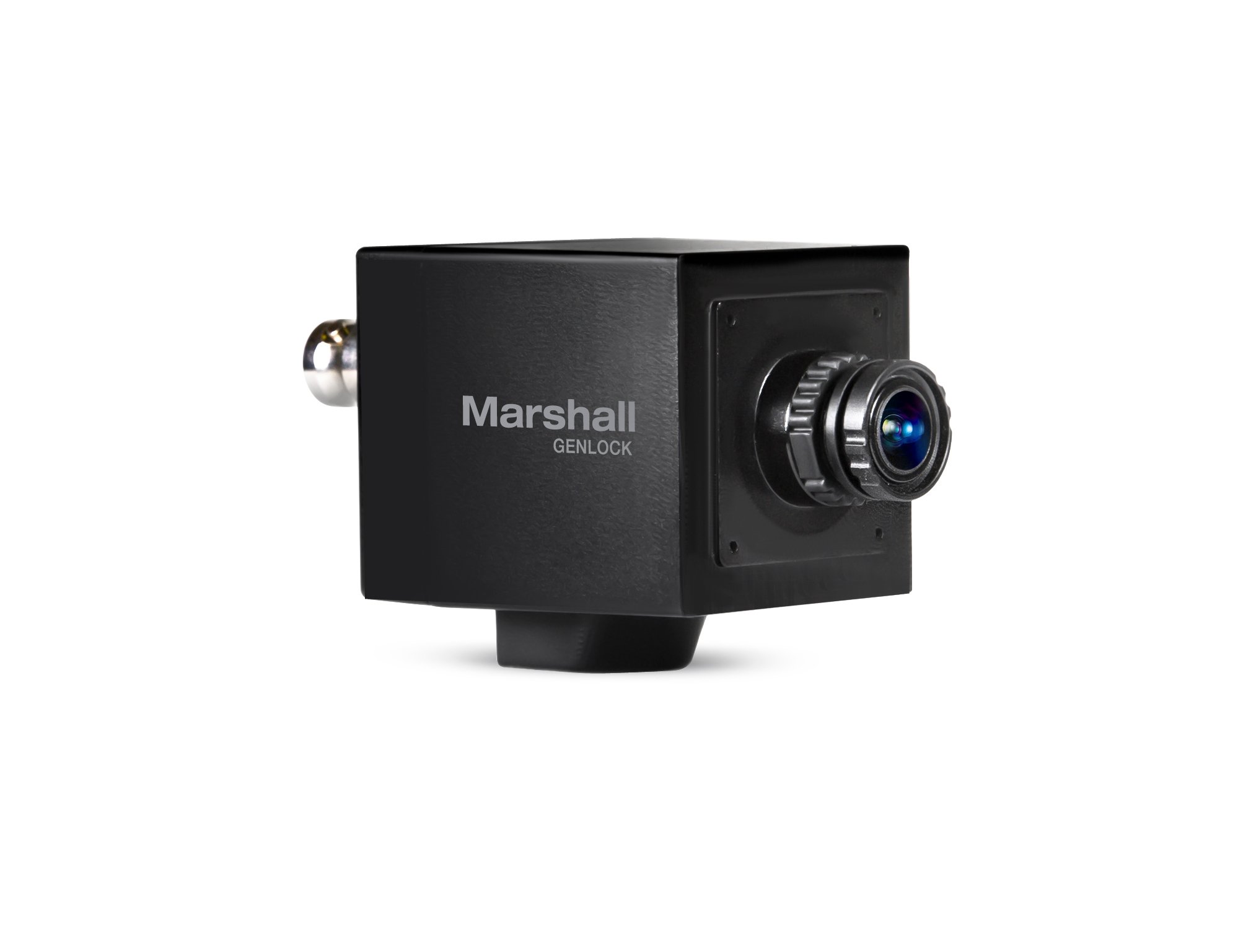

Marshall Electronics CV565-MGB
Mini Genlock Broadcast Camera with SDI and HDMI

OUR PART #:  CV565-MGB

The Marshall Electronics CV565-MGB PRO-Series Camera brings the convenience of Signal Sync at camera level, ensuring smooth...
Learn More
Our Price: $799.00
List Price: $899.00
You save 11%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics CV565-MGB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Marshall Electronics CV565-MGB PRO-Series Camera brings the convenience of Signal Sync at camera level, ensuring smooth, seamless switch transitions between cameras for on-location productions.

Using Tri-Level Sync, the CV565-MGB locks 3G/HD video signals (genlock) up to 1920x1080p @ 59.94 frames per second, as well as 1920x1080i @ 59.94 fps and 1280x720p @ 59.94 fps. It also features a 3.5mm line-level input with 2.5V power and broadcast convenient HDSDI/3GSDI (BNC) & HDMI (v1.3) simultaneous outputs. It's built around a next generation chip set and a state-of-the-art 1/3" megapixel sensor, improving every aspect over previous models. It's capable of capturing broadcast quality HD video from 2,476,296 pixels (2.5MP) of clear, crisp video at full-HD resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 59.94 & 29.97fps. Hirose Breakout Cable and power supply are both included.

Applications:

  • Broadcast Television
  • Professional Sports
  • College Sports
  • OB Vans/Trucks
  • Concert & Studio Music Video
  • Reality TV
  • Performing Arts
  • Culinary Shows
  • Car TV Shows
  • Hidden Camera Shows
  • International Racing Circuits
  • Off-road Racing
  • Horse Racing
  • House of Worship
  • POV Video Shots

Marshall Electronics CV565-MGB Features:

  • 2.5 Megapixel 1/3" CMOS Sensor
  • 3.7mm Megapixel M12 Prime Lens installed (interchangeable - additional lenses sold separately)
  • GENLOCK Tri-Level Sync at camera level to ensure clean switching between cameras
  • Sync in 3GSDI (1080p59.94fps) as well as HDSDI (1080i59.94fps and 1280x720p59.94fps)
  • Supports resolutions of 1920x1080p, 1920x1080i, and 1280x720p
  • Supports frame rates of 59.94 and 29.97fps
  • Camera will adjust to Resolution and Frame rate of Sync source
  • 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel
  • Hirose-style (I/O) connector contains: Sync-IN, Sync-OUT, RS-485 connect, 12V power connector & TS line-level input with 2.5V power
  • Captures sharp and vivid color images at 0.2lux (low light sensitive)
  • WDR function adjusts automatically to bright and dark areas in FOV
  • Audio line-level (TS) embedding w/ 2.5V power supplied
  • OSD Menu Joystick on cable and RS-485 connectable (Visca/Pelco)
  • Free downloadable software to control camera settings via RS485 (requires USB to RS485 converter)
  • Stepped (Red/Blue) Gain Control, Gamma, Shutter, Brightness
  • Camera Control Software Interface Screen Capture:
