Sony SRG360SHE
HD PTZ Camera with 30x Zoom

OUR PART #  SRG360SHE

Our Price: $3,795.91
List Price: $4,695.00
You save 19%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

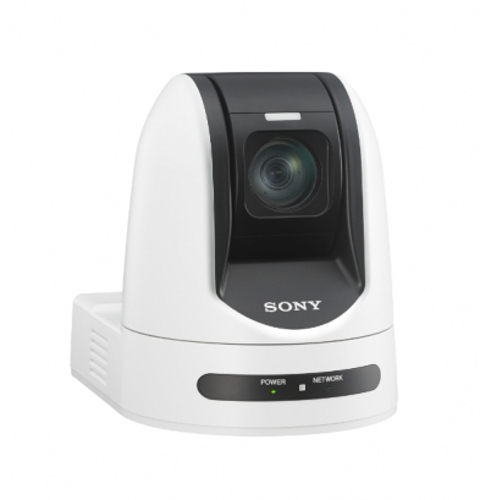

The Sony SRG-360SHE is a high-performance Full HD remote network camera that's ideal for use in lecture theatres, auditoria and Houses of Worship, as well as corporate, governmental and telemedicine applications. Its excellent image quality also makes it suitable for broadcast applications, from news and live sports production to reality TV shows.

Suitable for table top or ceiling mounting, the attractively styled camera body features a large tally lamp that gives presenters a clear visual indication when they're on air. Reducing cabling requirements for simpler installation, PoE+ (Power over Ethernet) carries IP video and power over a single connection cable.

The SRG-360SHE streams smooth, detail-packed Full HD (1080/60p) video over an IP network connection, with additional outputs providing simultaneous feeds over 3G-SDI and HDMI at the same time. This triple streaming capability makes the camera ideal for corporate presentations, webcasts and other events where content can be displayed on a connected monitor, streamed live to the web and simultaneously recorded for editing and archive.

An improved PTZ mechanism ensures smooth, steady camera movements for polished, professional-looking coverage of any scene. Separate pan, tilt and zoom movements can be synchronised to start and stop together, and a 'trace' of pre-set camera positions can be stored for recall at any time.

The sensitive Exmor™ CMOS image sensor assures excellent low-light sensitivity, with View-DR and XDNR enhancing image quality in harshly backlit or poorly-illuminated rooms. The camera’s wide field of view makes it easier to cover everyone in the room. Powerful 30x optical zoom is boosted further by digital zoom for high-quality close-ups of distant subjects. Live images can be viewed via a web browser on a PC or mobile device that can also recall up to 256 stored camera viewing position set-ups.

Stereo audio from an attached microphone can be fine-tuned using the on-board equaliser and auto level control for extra clarity and intelligibility. There's also an auto lip-sync feature to eliminate distracting mismatches between sound and picture. The SRG-360SHE can be controlled remotely using VISCA command protocols over IP or RS-422. The camera's embedded web browser also allows simple control and image preview from any networked PC.

Sony SRG-360SHE Includes:

  • IR remote commander (1)
  • AC power adaptor (1)
  • Ceiling bracket (2)
  • Wire rope(1)
  • HDMI cable retainer(1)
  • Screw M3 x 8(9)
  • Screw M2.6x6(1)

Sony SRG-360SHE Features:

  • Triple streaming outputs
  • Full HD image quality with 60fps frame rate
  • Clearer pictures in any lighting conditions
  • Powerful 30x optical zoom
  • Enhanced PTZ operation
  • Wide 65° viewing angle
  • Suitable for desktop or ceiling mounting
  • Large tally light
  • Enhanced audio quality with equalizer and auto lip-sync function
  • Versatile connectivity options
  • 256 programmable presets
  • Embedded web browser
  • PoE+ for flexible powering options

Sony SRG-360SHE Specifications:

  • Image sensor: 1/2.8 Exmor CMOS
  • Signal System - HD:
    • 1080/59.94p,50p
    • 1080/59.94i,50i
    • 720/59.94p,50p
  • Lens - Focal Length:
    • f=4.3 to 129.0 mm
    • F1.6 to 4.7
  • Lens - Optical Zoom: 30x
  • Lens - Digital Zoom: 12x
  • Min. object Distance: 10 mm (Wide end), 1200 mm (Tele end)
  • Horizontal Viewing Angle: 2.9°(Tele)- 65°(Wide, normal mode) / 63.7°(Wide, low latency mode)
  • TV Line: 1,000 (center)
  • Focus Systems: Auto/Manual
  • Min. llumination:
    • High Sensitivity mode: 0.35 lx (50IRE, F1.6, 30fps)
    • Normal mode : 1.4 lx (50IRE, F1.6, 30fps)
  • Auto IR cut filter: Auto, Manual, Timer,Sensor input Near-IR compensation on/off
  • Shutter Speed: 1/1 to 1/10000
  • Gain: Auto/Manual (0 to +43 dB)
  • White Balance: Auto1/Auto2/Indoor/Outdoor/One-push/Manual
  • Exposure Control: Auto, Manual, Priority AE(Shutter,Iris), Exposure compensation, Blight
  • S/N ratio: 50 dB
  • Pan/Tilt - Angle - Pan: ±170°
  • Pan/Tilt - Angle - Tilt: +90°/-30
  • Preset Positions: 256
  • Video Output - HD: 3G-SDI, HDMI
  • Sync system: INT
  • Camera Control - IR: Yes
  • Camera Control - Interface: RS-422/RJ-45
  • Camera Control - Protocol: VISCA(RS-422, IP)/CGI(RJ-45)/S700PTP
  • MIC input: Mini-phone(3.5f)×2(MIC/Line) (selectable)
  • Audio - Channel: 2ch (stereo)
  • Audio - Codec: AAC LC
  • Audio setting option:
    • Auto level control(ALC) On/OFF
    • Simplified equalizer
  • Audio - Sampling frequency: 48kHz
  • Audio - Embedded in Baseband video: Yes (3G-SDI, HDMI)
  • Audio - Embedded in IP streaming: Yes
  • Power requirements: DC 12V(DC 10.8 ~ 13.2V)
  • PoE: PoE+
  • Operating temperature: 32°- 104°F (0°- 40 °C)
  • Storage temperature: -4°- +140ºF (-20 - +60°C)
  • Mass: Approx. 2.1kg
  • Dimensions (WxHxD:mm): 159 x 187.5 x 200.5mm
  • Body Color: White with black
