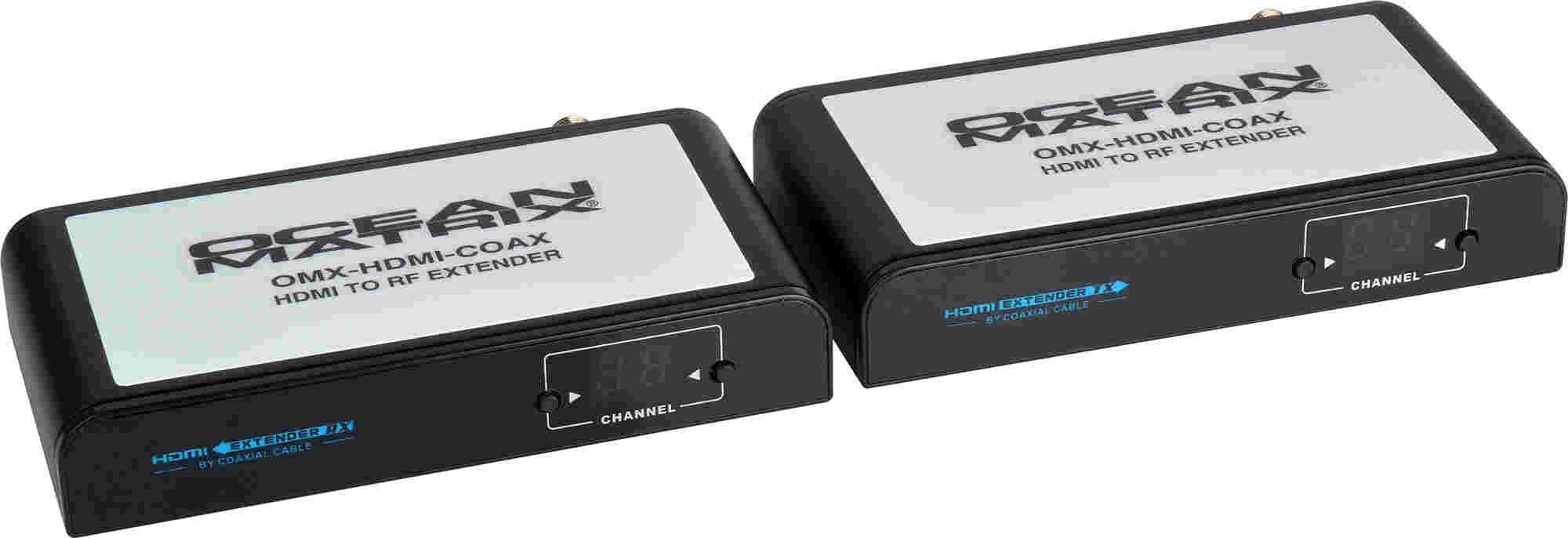

OCEAN MATRIX OMX-HDMI-COAX
HDMI to HD Over Existing Coax Extender Pair Converter

OUR PART #:  OMX-HDMI-COAX

The Ocean Matrix OMX-HDMI-COAX HDMI extender converts HDMI signals to HD digital TV signals using DVB-T CATV transmission mode.
Learn More
Our Price: $335.93
List Price: $349.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

OCEAN MATRIX OMX-HDMI-COAX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Ocean Matrix OMX-HDMI-COAX HDMI extender converts HDMI signals to HD digital TV signals using DVB-T CATV transmission mode. Unlike traditional analog CATV signal, this extender uses 64 QAM mode to convert the signal and transmits via coaxial cables for long distances. Using a CATV splitter, you can easily create a one to multiple or a multiple to multiple matrix. Short cable runs may require an attenuator, please refer to product manual for specifics.

Ocean Matrix OMX-HDMI-COAX Includes:

  • HDMI to RF transmitter (TX)
  • RF to HDMI receiver (RX)
  • Two DC 5V, 1A power supplies

Ocean Matrix OMX-HDMI-COAX Features:

  • Full 1080P HD
  • Resolution: supports up to 1920x1080 @ 60Hz
  • 99 Selectable Channels - allows multiple units on the same coax

Ocean Matrix OMX-HDMI-COAX Specifications:

  • TX - HDMI Input
  • RX - HDMI Output
  • 99 Selectable Channels
  • Input and Output: 480i @ 60Hz, 480P @ 60Hz, 576i @ 50Hz, 576P @ 50Hz, 720 P @50/60Hz, 1080i @ 50/60Hz,1080P @ 50/60Hz
  • HDMI Graphics Resolution: supports up to 1920x1080 @ 60Hz
  • Video Encoding: H.264
  • Audio Encoding: MPEG2
  • Coaxial Cable: RG6, RG7, RG11, etc
  • Frequency Point: 100-1000M
  • Bit Rate: Max 31.6M bits
  • Insertion Loss: <2dBm
  • RF TX Output Consumption: +0dBm
  • RF Connector: Imperial System 75 O Type F
  • Transmission Delay: 500ms
  • Power Consumption: TX <3.5W, RX <3W
  • Dimensions (LxWxH): 5.12" x 2.68" x 0.945"
  • Warranty: 1 year
