TV One ONErack Basic Kit
6RU Kit with (1) Chassis and (6) modules


Our Price: $999.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

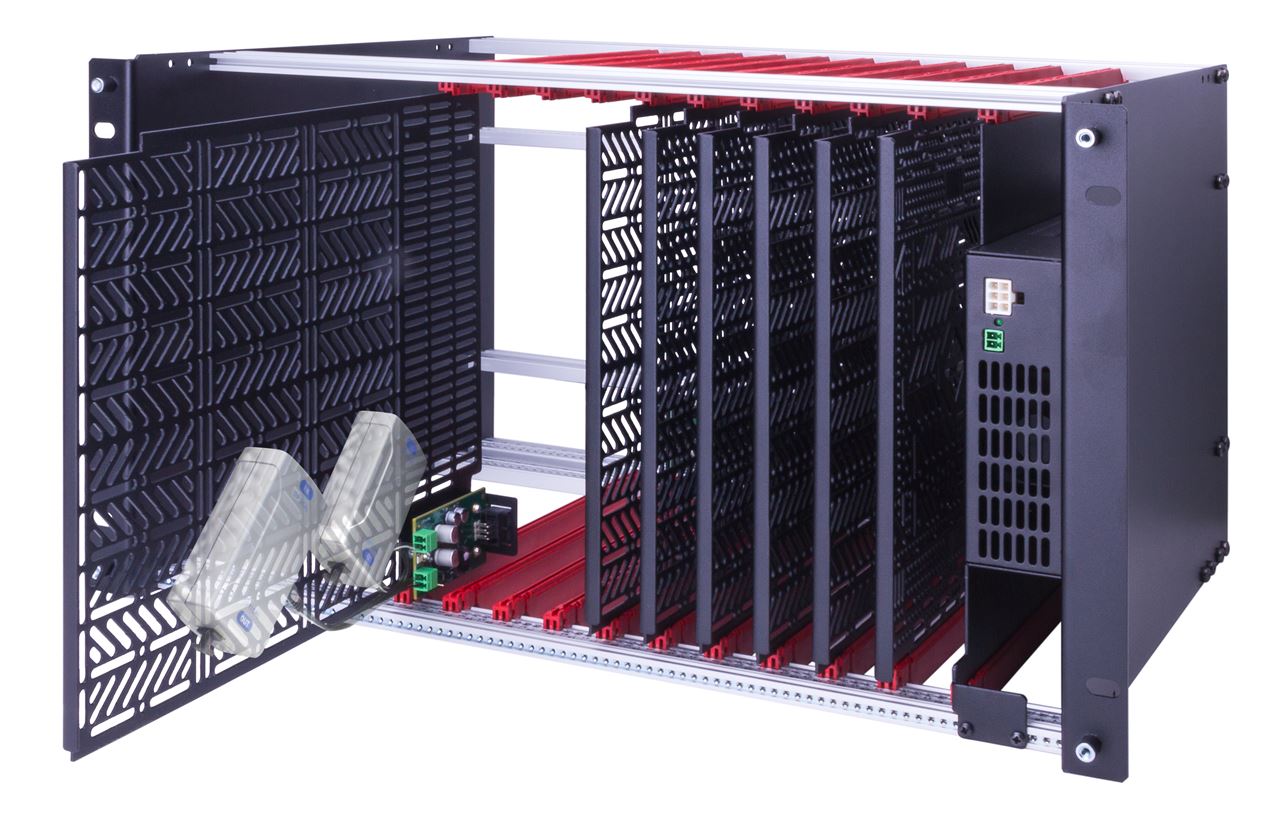

The ONErack™ Basic Kit from tvONE features one 6RU chassis and six modules. ONErack is a universal, powered mounting system that vastly improves rack installation of small devices. tvONE’s patent pending design converts randomly sized, externally powered devices from any manufacturer into slide-in modules that can be installed quickly and cleanly and serviced easily. Chassis can hold up to 16 modules with up to 2 voltage selectors each. When using the ONErack Power Supply (sold separately), each voltage selector can provide power @ 5V, 7.5V, 9V, 12V, 13.5V, 18V, & 24V up to 35 watts. A pass thru is also available for custom power sources. Each ONErack Chassis can include one or more Power Supplies for added power which can also feed additional chassis, providing a clean power solution for all mounted devices. For service, just slide out a failed device, no cable ties, no guessing. Close the front of your ONErack with a fan cover (sold separately) and keep it all cool.

tvONE ONErack Basic Kit Features:

  • Universal mounting for any brand
  • Variable DC voltages from single power supply
  • Active fan cooling system for high density applications
  • Power up to 64 devices
  • Each slot can provide 2 different voltages at the same time
  • Each slot has 7 different voltage settings
  • Pass thru allows for custom powering options
  • Fast easy installation of small devices
  • Simple, time saving serviceability

tvONE ONErack Basic Kit Specifications:

  • Part Number: 1RK-6RU-BASIC-KIT
  • Dimensions: 14" D x 10.43" H x 19" W (366 x 265 x 483 mm)
  • Weight (empty): 8.536 lbs (3.88 kg)
  • Module kit weight: 1.32 lbs (0.6 kg)
  • Area per slot: 101.6 in2 (655 cm2)
  • Power per dock: Max. 35W
  • Power per slot: Two voltage selectors @ 35W each (2nd Voltage Selector is optional)
  • Pass Thru Max: 35W DC
  • Certifications: RoHS, CE, UL, FCC Class A
  • Max modules: 16 (with internal PSU; 14)
