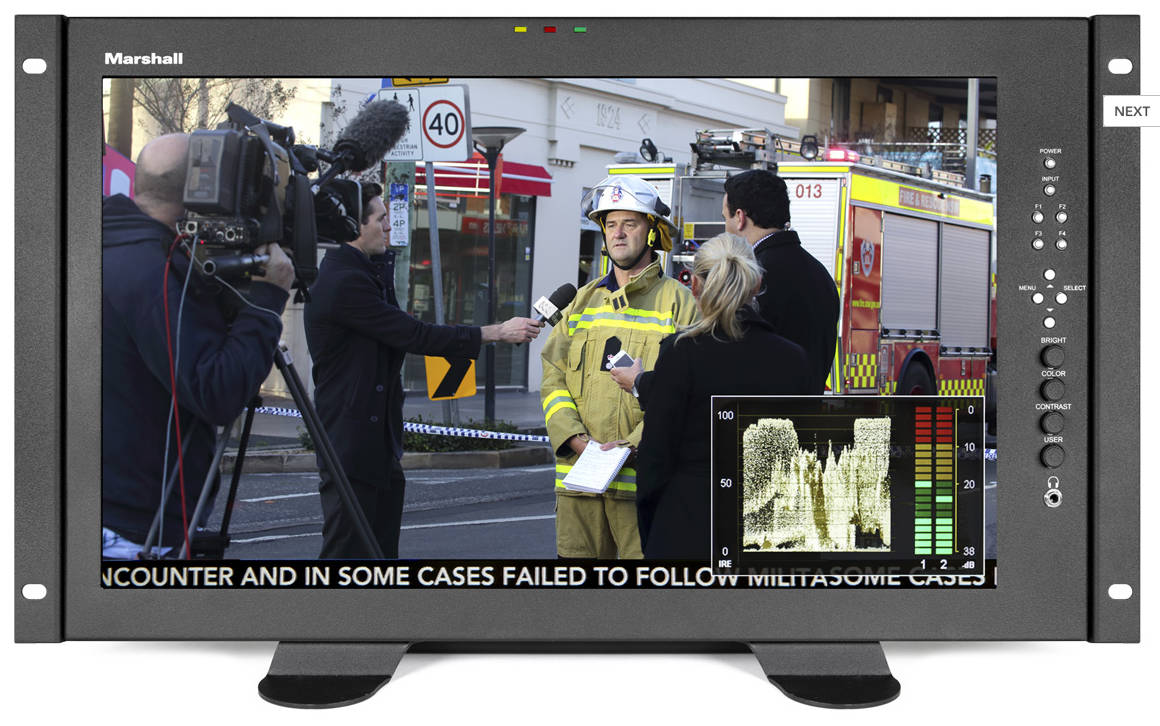

Marshall Electronics V-LCD171MD-3G-DT
17" LCD Desk Top Monitor with HDMI and 3G Input


The Marshall Electronics V-LCD171MD-3G-DT monitor provides excellent features in a popular 17" size.
Learn More
Our Price: $1,293.75
List Price: $1,522.06
You save 15%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Marshall Electronics V-LCD171MD-3G-DT
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Marshall Electronics V-LCD171MD-3G-DT monitor provides excellent features in a popular 17" size. Straight-forward design with the most-used features built-in including waveform and audio bar overlays, loud speakers, programmable function buttons, three-color tally lights and tilting mount design for easy viewing. Great for use in news vans, satellite trucks and central equipment rooms.

Marshall Electronics V-LCD171MD-3G-DT Features:

  • Full HD 1920 x 1080 display
  • HDMI input / output standard
  • Modular design. Allows addition of 3GSDI input
  • Waveform monitor at the push of a button
  • Audio meter bars overlay
  • Built-in speakers and headphone jack
  • Rugged 4-pin XLR power connector
  • Three color (Red, Yellow, Green) LED tally lights
  • 3G input

Marshall Electronics V-LCD171MD-3G-DT Specifications:

  • Panel:
    • Panel Size: 17.3”
    • Diagonal Resolution: 1920 x 1080
    • Aspect Ratio: 16:9
    • Active Area: 381.89 x 214.81 mm
    • Type: LCD Panel
    • Brightness: 400 cd/m²
    • Contrast: 600:1
    • Backlight type: LED
    • Adjustable Backlight: Yes
  • Audio Outputs:
    • Headphones: Yes
    • Input Status Display: Yes
  • Audio OSD:
    • Audio Bars: Yes
    • Channels: Yes
  • Power:
    • Voltage: 12 VDC
    • Consumption: 2.0A @ 12VDC (16 W)
    • Power Switch: Yes
    • Connector: 4-Pin XLR
  • Compliance: CE approved
  • Environmental:
    • Operating Temperature (C°): 10° C to 40°C
    • Storage Temperature (C°): 0°C to 50°C
  • Dimensions:
    • Unit dimensions (WxHxD): 17.30" x 10.46" x 1.33"
    • Weight (Main Body): 7.65 lbs
