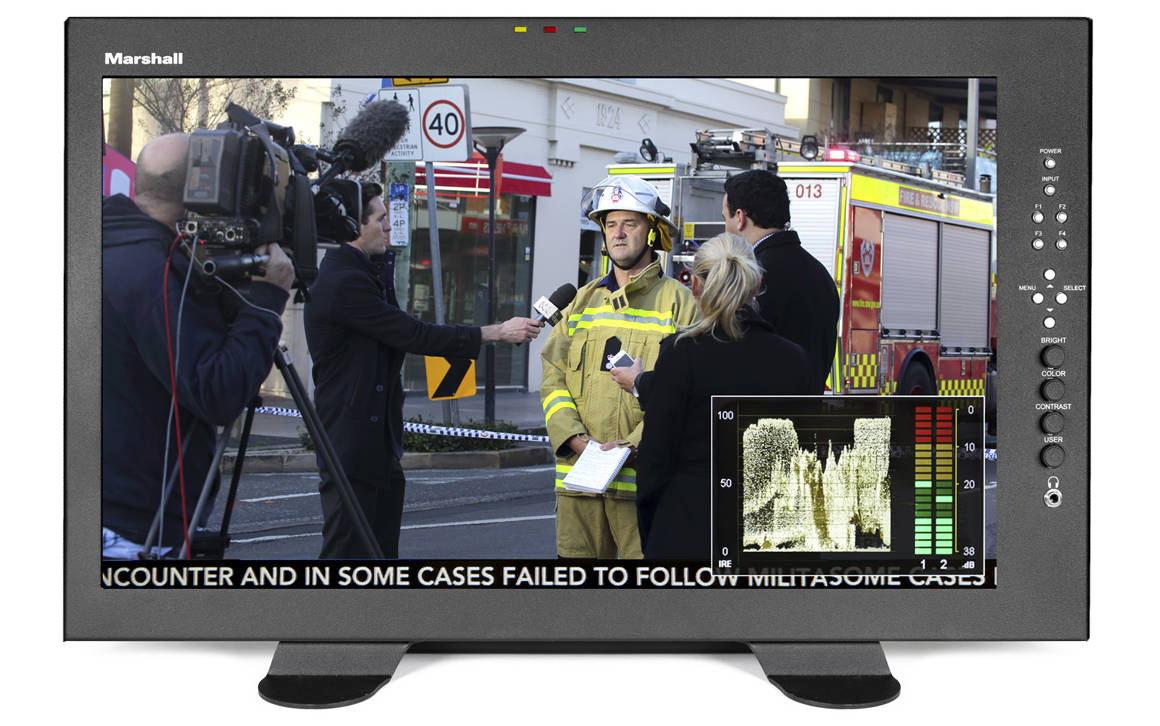

Marshall Electronics V-LCD171MD-DT 17" LCD Desk Top Monitor with HDMI Input

Providing excellent features in a popular 17" size, the Marshall Electronics V-LCD171MD-DT monitor has a straight-forward design with the most-used features built-in, including waveform and audio bar overlays, loud speakers, programmable function buttons, three-color tally lights, and tilting mount design for easy viewing. Great for use in news vans, satellite trucks and central equipment rooms.

Marshall Electronics V-LCD171MD-DT Features:

• Full HD 1920 x 1080 display
• HDMI input / output standard
• Modular design. Allows addition of 3GSDI input
• Waveform monitor at the push of a button
• Audio meter bars overlay
• Built-in speakers and headphone jack
• Rugged 4-pin XLR power connector
• Three color (Red, Yellow, Green) LED tally lights

Marshall Electronics V-LCD171MD-DT Specifications:

• Panel:
  • Panel Size: 17.3"
  • Diagonal Resolution: 1920 x 1080
  • Aspect Ratio: 16:9
  • Active Area: 381.89 x 214.81 mm
  • Type: LCD Panel
  • Brightness: 400 cd/m²
  • Contrast: 600:1
  • Backlight type: LED
  • Adjustable Backlight: Yes
• Audio Outputs:
  • Headphones: Yes
  • Input Status Display: Yes
• Audio OSD:
  • Audio Bars: Yes
  • Channels: Yes
• Power:
  • Voltage: 12 VDC
  • Consumption: 2.0A @ 12VDC (16 W)
  • Power Switch: Yes
  • Connector: 4-Pin XLR
• Compliance: CE approved
• Environmental:
  • Operating Temperature: 50° F to 104° F (10° C to 40° C)
  • Storage Temperature: 32° F to 122° F (0° C to 50° C)
• Dimensions:
  • Unit dimensions (WxHxD): approx. 17.30" x 10.46" x 2.23" (439 x 266 x 57mm) without rack ears
  • Weight (Main Body): 7.65 lbs (approx. 3.5 kg)
