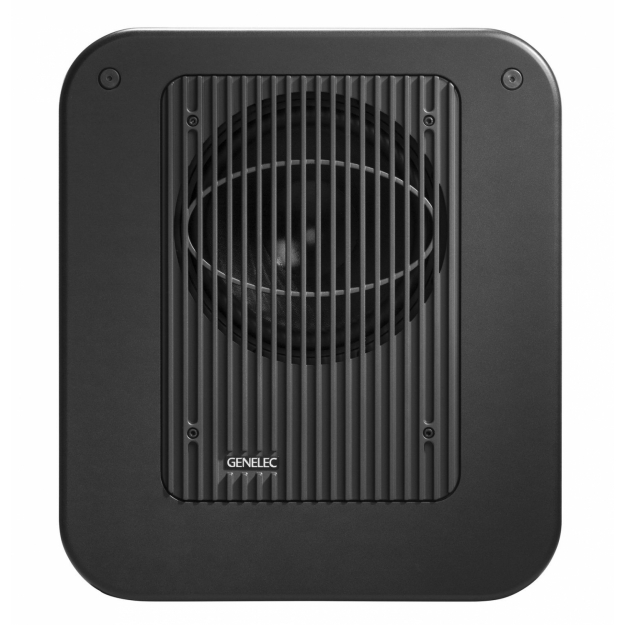

Genelec 7360APM 10" 300W Smart Active Subwoofer

The Genelec 7360A combines the Laminar Spiral Enclosure (LSE™) technology with AutoCal™ and GLM™ control network technologies. Genelec state-of-the-art AutoCal™ allows to automatically align every subwoofer for level, timing, crossover phase and equalization of room response anomalies. Providing extended low frequency performance, accurate tonal characteristics reproduction and high dynamic capabilities, the 7360A supports a distributed bass management architecture. This affordable package offers 7.1 channel analog XLR inputs and outputs together with stereo AES/EBU XLR inputs and outputs without the need for additional external A/D converters. A Class D amplifier unit is integrated into the enclosure and contains DSP crossover filters, driver overload and protection circuitry.

Genelec 7360A Features:

• Smart Active Monitor™
• Laminar Spiral Enclosure™
• Bass Management
• Protection Circuitry
• Optimized Amplifiers
• Active Crossovers
• Intelligent Signal Sensing™

Genelec 7360A Specifications:

• SPL: 109 dB
• Frequency Response: 19 Hz - 100 Hz (-6 dB) / LFE 19 Hz - 150 Hz (-6 dB)
• Driver Dimension: 10"
• Amplifier Power: 300 W (Class D)
• Dimensions (HxWxD): 20 3/4" x 18 3/16" x 14 3/8" (527 x 462 x 365 mm)
• Weight: 59 lb (27 kg)
• Connections:
  • 7.1 analog XLR inputs / outputs
  • 1 x input / 1 x output XLR digital AES/EBU
  • 2 x RJ45 control network

Note:

To enable GLM software to integrate with SAM monitors, the Genelec network adaptor kit (8300-601) is required– which includes the GLM network adaptor, 8300A calibration microphone and microphone holder, 1.8 m USB cable and Quick Connection Guide. The network adaptor connects to a Mac or PC via the supplied USB cable, and to SAM monitors via a 5 meter Ethernet cable (which is supplied separately with each SAM monitor). Contact your Sales Pro for more information.
