Osprey Video 97-11004
1:4 Equalized 3G Distribution Amplifier with DVB-ASI

OUR PART #  97-11004

Our Price: $190.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

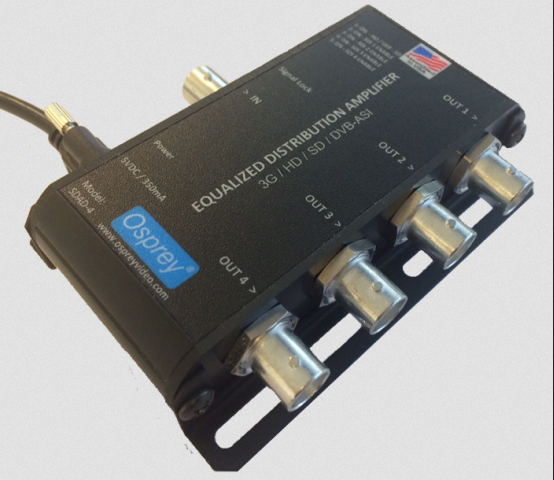

The Osprey Video 97-11004 SDI distribution aplifier will accept any single link SDI input up to 3G and passes it directly to four outputs while preserving Ancillary Data and Embedded Audio. The amplifier has automatic cable equilization to lessen attenuation over longer runs. Dip switches allow the user to select between SD and HD signals and turn off unused ports to conserve power when running from portable power sources. Powered by USB via a locking connector the SDAD-4 is perfect for streaming workflows.

Osprey Video 97-11004 Includes:

  • Lockable USB power cable
  • Mounting brackets

Osprey Video 97-11004 Features:

  • Technology: Cable Equalized, Cable Drivers
  • 3G/HD/SD/DVB-ASI
  • Dip Switch for SD/HD Selection
  • Dip Switches allow the user to turn off unused ports to conserve power when running from portable power sources
  • LED indication for Power and Signal Lock
  • Size: 70x95mm (including BNC's)
  • 5V Power Consumption ~ 1.8W  (all Outputs enabled)

Osprey Video 97-11004
1:4 Equalized 3G Distribution Amplifier with DVB-ASI

OUR PART #  97-11004

Product Information:

The Osprey Video 97-11004 SDI distribution aplifier will accept any single link SDI input up to 3G and passes it directly to four outputs while preserving Ancillary Data and Embedded Audio. The amplifier has automatic cable equilization to lessen attenuation over longer runs. Dip switches allow the user to select between SD and HD signals and turn off unused ports to conserve power when running from portable power sources. Powered by USB via a locking connector the SDAD-4 is perfect for streaming workflows.

Osprey Video 97-11004 Includes:

  • Lockable USB power cable
  • Mounting brackets

Osprey Video 97-11004 Features:

  • Technology: Cable Equalized, Cable Drivers
  • 3G/HD/SD/DVB-ASI
  • Dip Switch for SD/HD Selection
  • Dip Switches allow the user to turn off unused ports to conserve power when running from portable power sources
  • LED indication for Power and Signal Lock
  • Size: 70x95mm (including BNC's)
  • 5V Power Consumption ~ 1.8W  (all Outputs enabled)
