JBL PRX815W 15" 2-Way Active Speaker, 1500W, Remote Control

OUR PART #: PRX815W MFR #: PRX815W

Copied to clipboard

The JBL PRX815 offers the perfect balance between size and performance—it’s small, lightweight, versatile... ...Read more

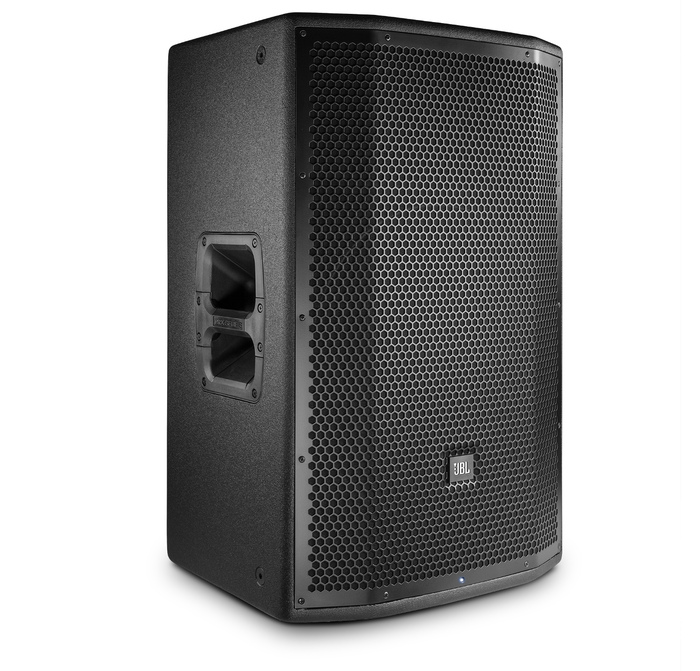

JBL PRX815W 15" 2-Way Active Speaker, 1500W, Remote Control Image 1
JBL PRX815W 15" 2-Way Active Speaker, 1500W, Remote Control Image 2
JBL PRX815W 15" 2-Way Active Speaker, 1500W, Remote Control Image 3
a8SB2pKrH1g
2 Videos
JBL PRX815W 15" 2-Way Active Speaker, 1500W, Remote Control
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The JBL PRX815 offers the perfect balance between size and performance—it’s small, lightweight, versatile, and powerful with remote Wi-Fi control of onboard DSP EQ parameters. The performance and asymmetrical design make it a perfect choice for musicians, entertainers and DJs when portability is key, or when hung by the suspension points, an exceptional light-duty installation speaker. All PRX800 Series speakers were designed to excel in sound reinforcement where challenging audio environments and loud volumes are the norm. For applications requiring full bandwidth sound reproduction, the PRX815 delivers the optimum balance. For live music, playback, and speech the user has the option of tailoring the EQ. A microphone can be directly connected to the speaker input for quick PA applications. The PRX815 is comprised of a 15” Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5”) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by a 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization. All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints, and protected by JBL’s tour-proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from lightweight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each. The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.

Applications

  • Bands, DJs, and other performers who need a powerful, accurate, versatile PA system
  • Permanent PA in small clubs, bars, and other performance venues
  • Permanent PA for houses of worship and schools

Includes

  • PRX815W Speaker
  • IEC Cable
  • User's Guide

Features

  • JBL Differential Drive transducers for higher SPL in a lightweight design
  • Class-leading 1500W amplifier
  • Built-in wi-fi provides control from anywhere in the venue
  • Redesigned Crown input technology including XLR, 1/4" & RCA ins plus XLR loop-thru
  • Durable wooden cabinets and tour-proven DuraFlex finish

Specifications

  • System Type: Self Powered 15", 2-way, bass-reflex
  • Maximum SPL: 137 dB peak
  • Frequency Range (-10 dB):
    • Main: 50 Hz – 20kHz
    • Monitor: 46 Hz – 19 kHz
  • Frequency Response (±3 dB):
    • Main: 58.1 Hz – 20 kHz
    • Monitor: 59 Hz – 20 kHz
  • Input Connectors: 2 x Balanced XLR / 1/4" input, 2 x unbalanced RCA input
  • Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)
  • Signal Indicators:
    • Limit: Yellow LED indicates peak output has been reached and dsp limiter is active
    • Signal: Green LED indicates signal present
    • Power: Blue indicates system has power and ready to pass audio
  • EQ: User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
  • Dynamic Control (Input): dbx Type IV™ limiter circuit
  • Crossover Frequency: 2.0 kHz
  • Design: Highly efficient Class-D amplifier
  • Power Rating: 1500W (750W x 2)
  • AC Power Input: 100V - 240V ~ 50/60 Hz
  • LF Driver: 1 x JBL 275G 15" woofer
  • HF Driver: 1 x JBL 2408H-2 1.5" (37.5mm) annular polymer diaphragm, neodymium compression driver
  • Coverage Pattern: 90° x 50° nominal
  • Directivity Index (DI): 10.2 dB
  • Directivity Factor (Q): 10.4
  • Enclosure: Asymmetrical, 18 mm, plywood
  • Suspension / Mounting: Dual 36 mm pole socket, 12 x M10 Suspension Points
  • Transport: 1 x injection molded handle with backing cup
  • Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing
  • Physical:
    • Finish: Obsidian DuraFlex™ finish
    • Dimensions (HxWxD): 27.6" x 17.5" x 14.1" (701 x 446 x 359 mm)
    • Net Weight: 47.5 lbs (21.6 kg)
    • Gross Weight: 58.0 lbs (26.3 kg)
