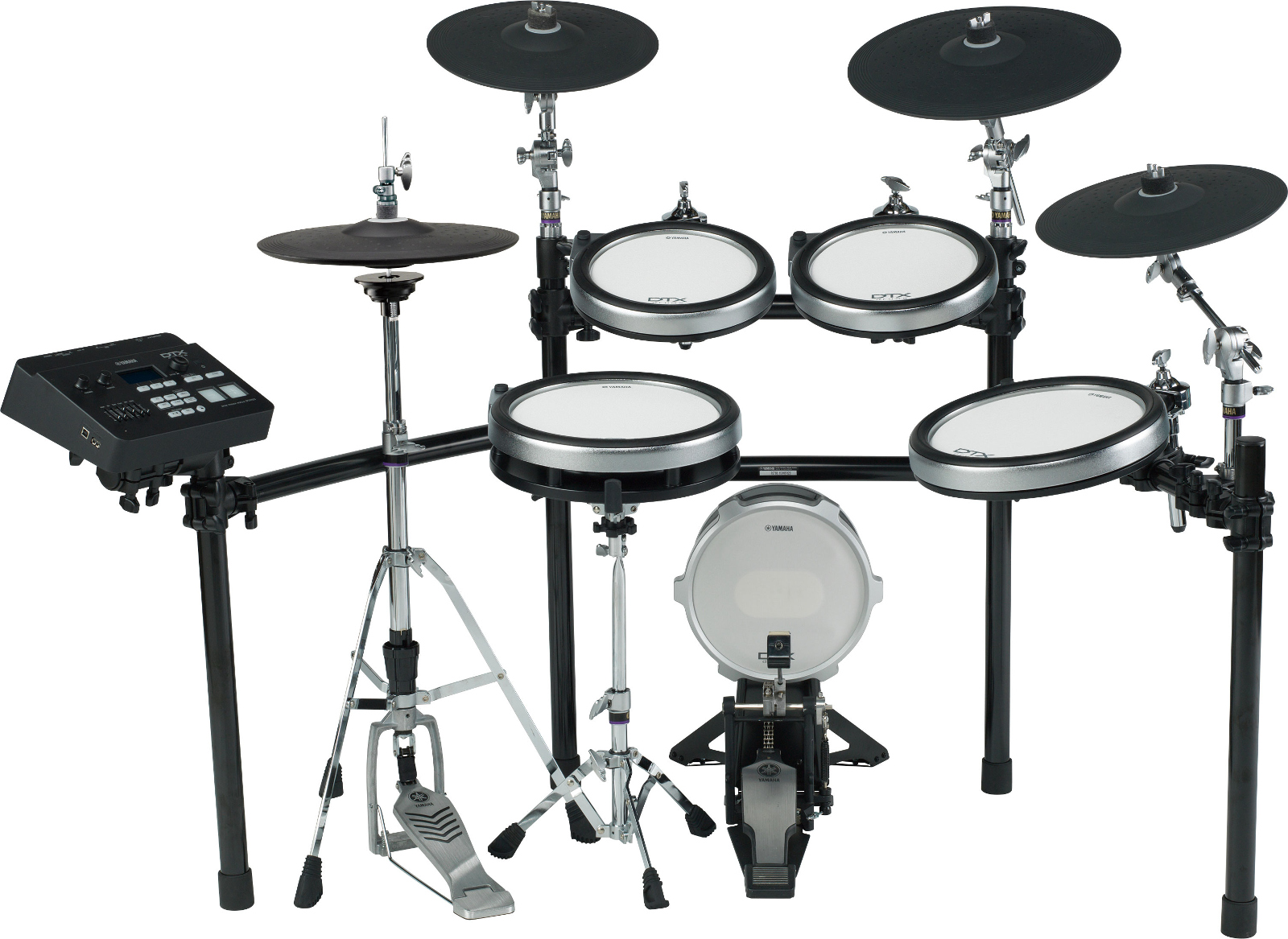

Yamaha DTX760K Electronic Drum Set 5-Piece Kit with TCS Snare and Tom Pads, 3 Cymbals and DTX700 Module

OUR PART #: DTX760K MFR #: DTX760K

Copied to clipboard

Yamaha's DTX760K is an affordable kit that allows the use of all 3-zone DTX-PADs... ...Read more

Yamaha DTX760K Electronic Drum Set 5-Piece Kit With TCS Snare And Tom Pads, 3 Cymbals And DTX700 Module Image 1
Yamaha DTX760K Electronic Drum Set 5-Piece Kit With TCS Snare And Tom Pads, 3 Cymbals And DTX700 Module Image 2
Yamaha DTX760K Electronic Drum Set 5-Piece Kit With TCS Snare And Tom Pads, 3 Cymbals And DTX700 Module Image 3
Yamaha DTX760K Electronic Drum Set 5-Piece Kit With TCS Snare And Tom Pads, 3 Cymbals And DTX700 Module Image 4
Yamaha DTX760K Electronic Drum Set 5-Piece Kit With TCS Snare And Tom Pads, 3 Cymbals And DTX700 Module
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Yamaha's DTX760K is an affordable kit that allows the use of all 3-zone DTX-PADs, and utilizes the same real hi-hat controller and large 3-zone choke-able cymbals as the 900 series. The DTX760K can be expanded with up to two additional pads.

Yamaha DTX760K Features:

  • Configuration
    • Module: DTX700
    • Snare: XP120SD + SS662
    • Tom1, 2: XP100T x 2
    • Floor Tom: XP120T
    • Crash Cymbal1, 2: PCY135 x 2
    • Ride Cymbal: PCY155
    • Hi-Hat: RHH135 + HS740A
    • Kick: KP100
    • Rack: RS700
  • No Compromise Sound Quality: A total of 1,396 sounds covering a broad range of instruments including a selection of Yamaha acoustic drum sounds like Oak Custom series, as well as percussion and effect sounds.
  • Hi-Hat with Real Playability: Full-fledged hi-hat system consists of a pad that sets onto the supplied hi-hat stand, and can play both open and closed sounds as well as a foot splash.
  • Import Original Voices via the USB Jack: Import your favorite voices (WAV/AIFF) into the DTX700 using a USB memory device.
  • Use for Recording or Music Production: Connect to a computer via a USB cable (sold separately) to record MIDI data into a DAW or for playing a VSTsound source. Steinberg's Cubase AI is included to begin creating music right away.

Yamaha DTX760K Specifications:

  • Configuration
    • Trigger Module: DTX700
    • Rack System: RS700
  • Size/Weight (Trigger Module)
    • Dimensions (WxHxD): 10-29/32" x 8-25/64" x 2-3/4" (277 x 213 x 95 mm)
    • Weight: 3.31 lbs (1.5 kg)
  • Tone Generator
    • Maximum Polyphony: 64 notes
    • Voices: Drum and percussion: 1,268, Melodies: 128
    • Effects:
      • Reverb: 6
      • Chorus: 6
      • Variation: 42
      • Kit EQ: 4 band
      • Master EQ: 3 bands
    • Drum kits:
      • Preset: 50
      • User: 10
      • (all of which may be edited and overwritten)
    • Sequencer
      • Note Capacity: Approx. 152,000 notes
      • Note Resolution: 480 ppq (parts per quarter note)
      • Song Recording Type: Real-time replace
      • Song tracks: 1 track
      • Songs:
        • Demo: 2
        • Practice: 44
        • Pad: 17
        • User: 30 (all of which may be edited and overwritten)
      • Sequence Formats: Proprietary, SMF format 0
    • Click
      • Tempo: 30 to 300 BPM, Tap Tempo supported.
      • Beat: 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
      • Timing: Accents, Quarter note, Eighth note, Sixteenth note, Triplet
      • Training Functions: Measure break, Groove check, Rhythm gate
    • Other
      • Connectors: USB TO DEVICE/TO HOST, OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), Trigger Input 1 to 8, 11 (Standard stereo phone, L: Trigger Input, R: Rim Switch), Trigger Input 9 and 10 (Standard stereo phone, L: Trigger Input, R: Trigger Input), HH-KICK (Standard stereo phone) , HI-HAT CONTROL (Standard stereo phone), AUX IN (Stereo Mini), PHONES (Standard stereo phone), MIDI IN/OUT
      • Accessories: Power Adapter (PA-150, or an equivalent), Module holder, Module holder fastening screws x 4, Owner's Manual, Data List, DVD-ROM (Cubase AI)
    • Audio Import
    • Samples: 500
    • Sample Data Bits: 16 bits
    • Sampling Time * Mono/Stereo: 44.1kHz: 23 sec., 22.05kHz: 46 sec., 11.025kHz: 1 min. 32 sec., 5.5125kHz: 3 min. 4 sec.
    • Sample formats: WAV, AIFF
