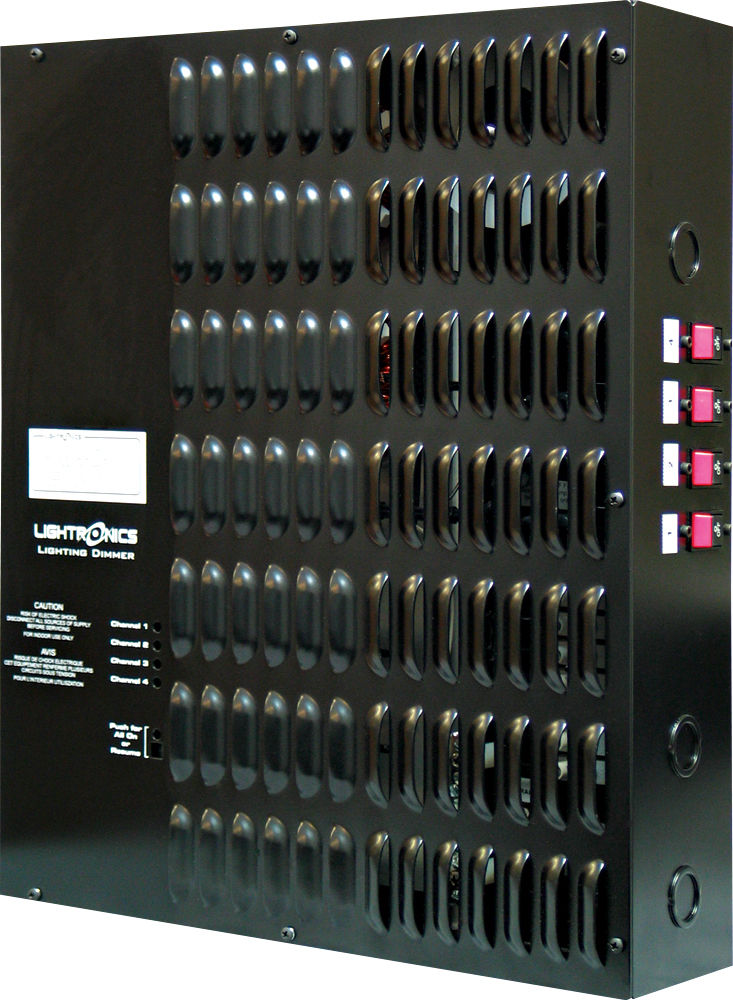

Lightronics Inc. FL4020A
4 Channel Architectural Flourescent Ballast Module

OUR PART #:  FL4020A

The Lightronics Inc. FL4020A Dimmer is a four channel controller add on product for the AR1202 Unity Architectural dimmer.
Learn More
Our Price: $971.25
List Price: $1,295.00
You save 25%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lightronics Inc. FL4020A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Lightronics Inc. FL4020A Dimmer is a four channel controller add on product for the AR1202 Unity Architectural dimmer. It provides control of dimmable fluorescent lighting ballasts. The FL Series provides two or four 2400 Watt channels of fluorescent dimming which is interfaced to the AR1202 control circuitry. The AR1202 uses two or four of its auxiliary channels to control the FL Series. Dual SCR “zero crossing” switching is used to control the switched hot lines.

Lightronics Inc FL4020A Features:

  • Four Dimmable Circuits
  • Dims Approx. 20 Dual F32T8 Fixtures per Circuit
  • Zero Crossing Solid State Switching
  • AR1202 / AR602 Interface Provided
  • Dimmed 120VAC + 120VAC Switched

Lightronics Inc FL4020A Specifications:

  • Circuits/Capacity: 4 at 2400 Watts each
  • Power Input: 4 Hots of 120VAC, 20 Amps each + Neutral and Ground
  • Circuit Breakers: 20 Amp Fast Acting Magnetic
  • Cooling: Integral Heat Sink
  • Control Wiring: 12’ Harness provided
  • Control Sources: Pulse Width Modulated Signals from AR1202
  • Output Signals: Dimmed 120VAC + 120VAC Switched
  • Size (HxWxD): 12” x 10” x 4”
  • Weight: 17.7 lbs
