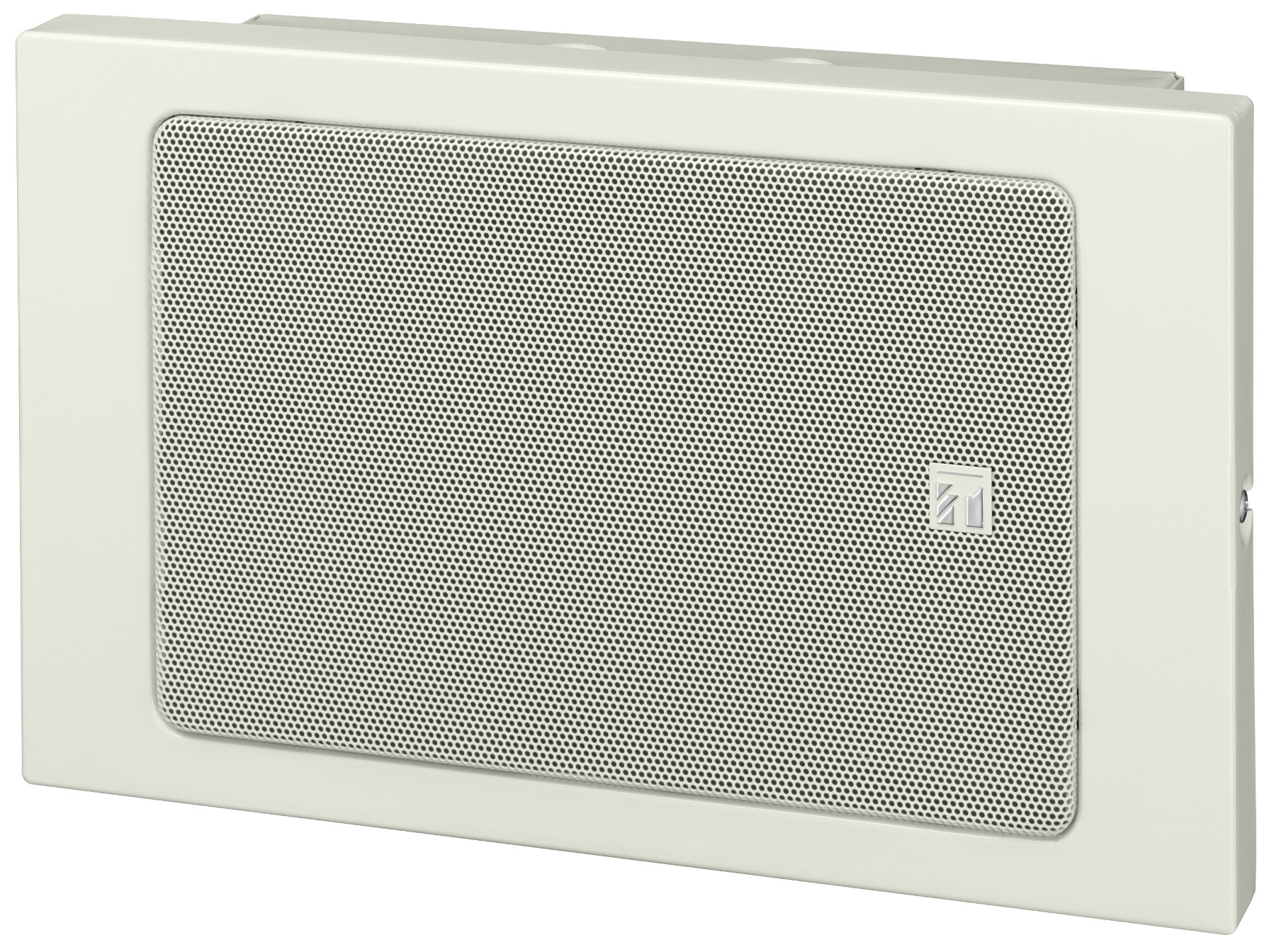

TOA BS-680U [RESTOCK ITEM]
Metal Box Wall Mount Paging Speaker, White

OUR PART #  BS680U-RST-01

Our Price: $54.28
List Price: $80.59
You save 33%! (Low Price Guarantee)
In Stock

Constructed with metal cabinet, the TOA BS-680U speaker is great for use in a voice alarm system. It can be surface- or flush- mounted to the wall, with either concealed in-wall wiring or exposed wiring for speaker cable connection. The structure of direct wall-mounting with screws prevents the speaker from falling easily even if an outward force is applied to it. Input impedance can be easily varied by changing the tap position of the transformer. The onboard 16 cm double cone speaker unit provides high quality sound. The push-in type input connector makes cable connections a breeze, and allows bridge wiring to be used. The BS-680U is certified to UL 1480 UUMW and ULC-S541 standards, and is designed for indoor use only.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

TOA BS-680U Includes:

  • BS-680U Unit
  • (2) Rubber grommets
  • (4) 4 × 16Speaker mounting screw
  • Sponge tape: 1 sheet (2 pieces)

TOA BS-680U Features:

  • Innovative design based on the Golden Ratio (1:1.618)
  • Certified to function as a Fire Alarm Signaling Speaker
  • UL 1480 UUMW and ULC-S541 listed
  • Quick and easy installation
  • Strong all-metal body
  • Horizontal / vertical installation
  • Flush- / Surface-mounting

TOA BS-680U Specifications:

  • Rated Input: 6 W
  • Rated Impedance:
    • 70 V line: 830 Ohms (6 W), 1.67 kOhms (3 W), 5 kOhms (1 W)
    • 25 V line: 105 Ohms (6 W), 210 Ohms (3 W), 650 Ohms (1 W)
  • Sensitivity: 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
  • Frequency Response: 150 Hz - 20 kHz (peak -20 dB)
  • Speaker Component: 16 cm (6") double cone-type
  • Applicable Cable: Solid copper wire: f0.8 - f2.0 mm (AWG 20 - 12)
  • 2-Stranded copper wire: 0.5 - 2.0 mm (AWG 20 - 14)
  • Connection: Push-in connector (bridging terminal)
  • Operating Temperature: 14°F to 122°F (-10°C to +50°C)
  • Physical:
    • Finish:
      • Baffle, Cabinet: Steel plate, white (RAL 9010 equivalent), powder coating
      • Grille: Surface-treated steel plate mesh, white (RAL 9010 equivalent), paint
    • Dimensions: 12.2" W × 7.48" H × 3.54" D (310 × 190 × 90mm)
    • Weight: 5.73 lbs (2.6 kg)
  • UL Code: UL 1480 UUMW, ULC-S541

TOA BS-680U [RESTOCK ITEM]
Metal Box Wall Mount Paging Speaker, White

OUR PART #  BS680U-RST-01

Product Information:

Constructed with metal cabinet, the TOA BS-680U speaker is great for use in a voice alarm system. It can be surface- or flush- mounted to the wall, with either concealed in-wall wiring or exposed wiring for speaker cable connection. The structure of direct wall-mounting with screws prevents the speaker from falling easily even if an outward force is applied to it. Input impedance can be easily varied by changing the tap position of the transformer. The onboard 16 cm double cone speaker unit provides high quality sound. The push-in type input connector makes cable connections a breeze, and allows bridge wiring to be used. The BS-680U is certified to UL 1480 UUMW and ULC-S541 standards, and is designed for indoor use only.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

TOA BS-680U Includes:

  • BS-680U Unit
  • (2) Rubber grommets
  • (4) 4 × 16Speaker mounting screw
  • Sponge tape: 1 sheet (2 pieces)

TOA BS-680U Features:

  • Innovative design based on the Golden Ratio (1:1.618)
  • Certified to function as a Fire Alarm Signaling Speaker
  • UL 1480 UUMW and ULC-S541 listed
  • Quick and easy installation
  • Strong all-metal body
  • Horizontal / vertical installation
  • Flush- / Surface-mounting

TOA BS-680U Specifications:

  • Rated Input: 6 W
  • Rated Impedance:
    • 70 V line: 830 Ohms (6 W), 1.67 kOhms (3 W), 5 kOhms (1 W)
    • 25 V line: 105 Ohms (6 W), 210 Ohms (3 W), 650 Ohms (1 W)
  • Sensitivity: 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
  • Frequency Response: 150 Hz - 20 kHz (peak -20 dB)
  • Speaker Component: 16 cm (6") double cone-type
  • Applicable Cable: Solid copper wire: f0.8 - f2.0 mm (AWG 20 - 12)
  • 2-Stranded copper wire: 0.5 - 2.0 mm (AWG 20 - 14)
  • Connection: Push-in connector (bridging terminal)
  • Operating Temperature: 14°F to 122°F (-10°C to +50°C)
  • Physical:
    • Finish:
      • Baffle, Cabinet: Steel plate, white (RAL 9010 equivalent), powder coating
      • Grille: Surface-treated steel plate mesh, white (RAL 9010 equivalent), paint
    • Dimensions: 12.2" W × 7.48" H × 3.54" D (310 × 190 × 90mm)
    • Weight: 5.73 lbs (2.6 kg)
  • UL Code: UL 1480 UUMW, ULC-S541
