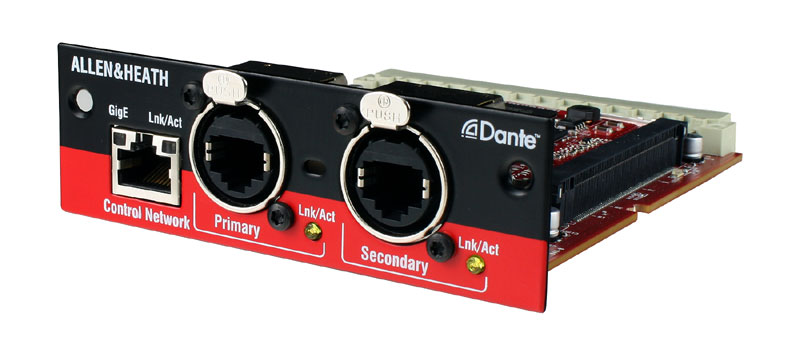

Allen & Heath M-Dante
64x64 Channel Dante Network Card for iLive Mix Rack System


Allen & Heath are implementing the Brooklyn II card from Audinate which takes Danteâ„¢ technology to a new level with a full 64 channels of bi-directional audio.
Learn More
Our Price: $1,599.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Allen & Heath M-Dante
In Stock

Similar Products

Allen & Heath are implementing the Brooklyn II card from Audinate which takes Danteâ„¢ technology to a new level with a full 64 channels of bi-directional audio. The M-Dante card can be fitted into Port B of any iLive MixRack for system linking, digital mic splitting, up to 64 track recording, and networking with the growing number of Dante equipped third-party audio processors, amplifiers and more. It can also be fitted into Port A of the RAB2 equipped modular iLive as an alternative Surface to MixRack link.

Dante Virtual Soundcard is software from Audinate that lets you connect up to 64 channels of iLive audio directly to your PC or Mac via its Ethernet port, ideal for multitrack recording and playback, or working with popular processing plug-ins. One Dante Virtual Soundcard licence is provided free with M-Dante. More can be purchased from Audinate. A limited period free trial is also available.

NOTE: The Allen & Heath M-Dante card provides an interface to a Dante network. The Dante networking standard, Brooklyn II hardware used and the software required to set it up and record to computer is provided and supported by Audinate. For further information or help on using Dante please refer to the documentation.

About Dante Technology

Dante is a groundbreaking Ethernet-compliant audio networking technology developed by Australian company Audinate to satisfy the increasing demands of the live sound industry for high performance audio, routing flexibility and affordable direct to computer recording. It uses Cat5 cable and standard networking components to distribute multiple streams of audio plus integrated control data with sub-millisecond latency.

Allen & Heath M-Dante Card Features:

  • 64 channel bi-directional audio plus control over CAT5
  • Uses standard, off-the-shelf computer networking equipment
  • Self discovery and auto-configuration of IP addresses
  • Easy to add, name, remove and rearrange devices
  • Wide range of Dante enabled equipment becoming available
  • Secondary port for redundant network option
  • Control port to bridge iLive or other network over Dante
  • Sample accurate playback syncronisation
  • Very low latency
  • Gigabit ports
  • Direct connection to computer for multitrack recording
  • Dante Virtual Soundcard software replaces expensive hardware
  • Dante Controller software available for setting up the network
