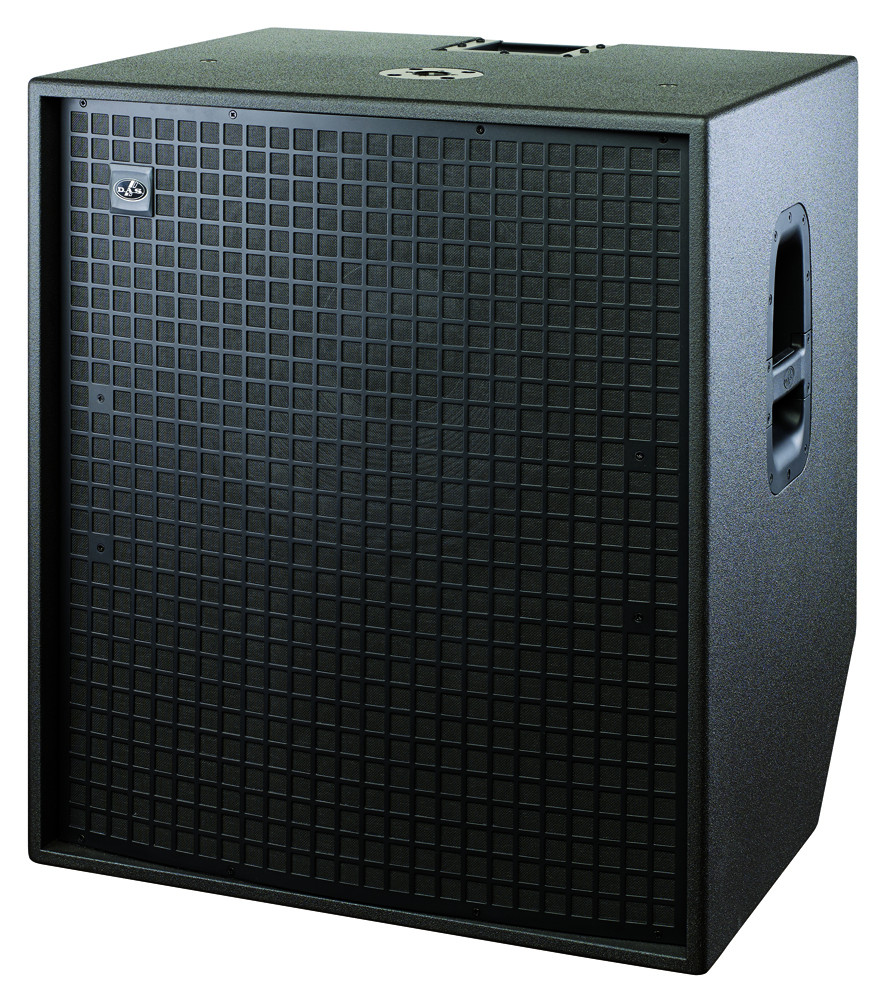

DAS ACTION-118A 18" Active Subwoofer, 3200W

The DAS Action 118A is a powered horn-bass subwoofer system designed to provide extended bass response for the Action full-range cabinets. A powerful 3200 Wpeak Class D amplifier drives a D.A.S. 18LX long excursion bass loudspeaker incorporating a 4? voice coil for high power handling and output.

The Action 118A is powered by a Class D amplifier with switch mode power supply (SMPS), digital signal processing (DSP) and a 3200 Wpeak power. The amplifier has a unique EQ switch which allows the user to select a Deep subbass response or a Loud bass response. The system includes two balanced inputs with stereo filtered output connections for satellite systems. The variable crossover ranges from 80 Hz-125 Hz and can be defeated to offer stereo “loop thru” connections. A gain control and polarity reverse feature increase user control over the system.

DAS Audio Action 118A Features:

• Powered horn-bass subwoofer system
• High output 18? loudspeaker
• Polarity switch
• Filtered output defeat switch
• Variable 80 -125 Hz high-pass filter
• Gain control

DAS Audio Action 118A Specifications:

• Nominal LF Amplifier Power: 3200 Wpeak,1600Wcontinuous (Class D)
• Frequency Range (-10 dB):
• Loud: 50 Hz – 125 Hz
• Deep: 45 Hz -125 Hz
• Rated Peak SPL at 1 m: 137 dB
• Internal Crossover: Variable LPF 80 Hz-125 Hz
• Connectors:
  • INPUT: 2 x Female
  • XLR LOOP THRU: 2 x Male XLR
  • AC INPUT: powerCON
  • AC OUTPUT: powerCON
• AC Requirements:
  • 115 V, 5.4 A, 50 Hz/60 Hz
  • 230 V, 2.7 A, 50 Hz/60 Hz
• Enclosure Material: Birch Plywood
• Color/Finish: Black ISO-flex Paint
• Dimensions (H x W x D): 79.1 x 69.0 x 56.7 cm (31.14 x27.17 x 22.32 in)
• Weight: 55 kg (121 lb)
