The Light Source MNBTV
Black Mini-Clamp with 1.5 Knob


Our Price: $6.36
List Price: $8.75
You save 27%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

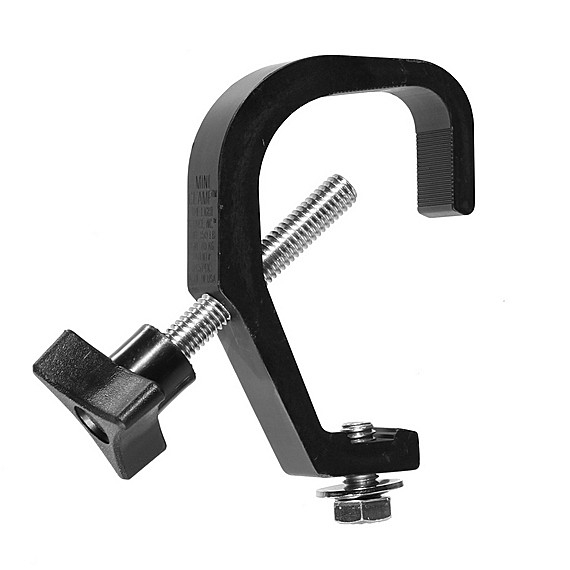

The Light Source's MNBTV Mini-Clamp is perfect for PAR 38’s, Pin Spots, and other small fixtures. The clamp is made from an aircraft grade aluminum extrusion with micro-grooves that conform to the pipe for real gripping power.

The Mini-Clamp will grip from 3/4" to 2" tubing. Pipe bolt is 3/8"-16 TPI x 2" Black Plastic Knob. Yoke bolt is a 3/8"-16 TPI x 3/4" long. SWL is 150 pounds,70kg, yet the Mini-Clamp weighs less than 6 Oz.

The Light Source MNBTV Specifications:

  • Minimum Size: 3/8" pipe, .675" OD
  • Maximum Size: 1.5" pipe, 1.9"OD, 2" OD Truss Tube
  • Safe Vertical Working Load: 150 lb 70kg
  • Hardware:
    • Pipe bolt is a steel 3/8"-16 TPI x 2" stud with a Black Plastic Knob.
    • Yoke bolt is a 3/8"-16 TPI x 3/4" long.
    • Belleville Washer
  • Dimensions: 4" tall x 2-3/4" wide x 7/8" thick
  • Weight: 6oz
  • Case Quantities: 48
