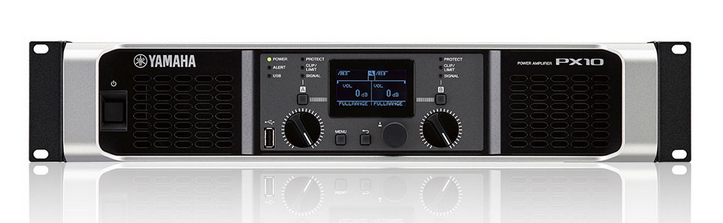

Yamaha PX10
Dual-channel Power Amplifier

OUR PART #  PX10

Our Price: $799.99
List Price: $1,099.00
You save 27%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Yamaha PX10 versatile PX series power amplifiers lineup combines intelligent processing with high output power to meet the requirements of a vast range of sound reinforcement environments. 1000W x 2 at 8O / 1200W x 2 at 4O.

Yamaha PX10 Includes:

  • USB cover
  • Owner's Manual
  • Specification sheet
  • AC cable (2.0m)

Yamaha PX10 Features:

  • 2x 1200W at 4O
  • Newly developed Class-D amplifier engine with a custom LSI
  • Flexible onboard PEQ, crossover, filters, delay, and limiter functions
  • Yamaha Speaker presets
  • Utlities for safe and secure operation

Yamaha PX10 Specifications:

  • Sampling frequency rate: 48kHz
  • A/D D/A Converters: AD/DA: 24-bit linear, 128 times over sampling
  • Total harmonic distortion: 0.1% (1kHz, 10W), 0.3% (1kHz, Half power)
  • Frequency response: ±1.0dB (1W, 8O, 20Hz to 20kHz)
  • S/N ratio: 101dB (A-weighted, 8O, Gain setting = +14dBu)
  • Crosstalk: Less than -60dB (Half Power, 8O, 1kHz, Vol max input 150O shunt)
  • Voltage Gain/Sensitivity:
    • 8O Volume max: 32.0dB/+9.3dBu (Gain setting: 32dB), 26.0dB/+15.3dBu (Gain setting: 26dB), 37.3dB/+4dBu (Gain setting: +4dBu), 27.3dB/+14dBu (Gain setting: +14dBu)
  • Maximum input voltage: +24dBu
  • Input impedance: 20kO (Balance), 10kO (Unbalance)
  • I/O Connectors:
    • Speaker output ports: Neutrik speakON NL4 x2, Binding post x2 pairs, 1/4" PHONE(TS) x2
    • Line Input: XLR-3-31 x2, 1/4 "PHONE(TRS) x2
    • Others: USB 2.0 Standard-A Connector (Female) for Save/Load, Speaker preset update, Firmware update with USB memory; AC inlet x1 with AC cord clamp
  • Indicators: POWER x1 (Green), ALERT x1 (Red), USB x1 (Green), PROTECT x2 (Red), CLIP/LIMIT x2 (Red), SIGNAL x2 (Green); Auto LED off feature
  • Processors: Input summing; D-CONTOUR(FOH/MAIN, MONITOR, OFF); Delay(0 - 74msec); HPF/LPF(cutoff frequency 20Hz~20kHz with polarity control); Speaker Processor(6 band PEQ + Limiter + Delay)
  • Latency: 1.5 msec (Analog Input to Speakers)
  • Presets: 8 user amplifier presets (Factory preset: Speaker presets for Yamaha passive speakers)
  • Protection circuit:
    • Load protection: POWER switch on/off: Output mute; Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset; DC-fault: Power Supply shutdown (NOT restored automatically)
    • Amplifier protection: Thermal: Output limiter (Restored automatically) ? Output mute (Restored automatically); Over current: Output mute (Restored automatically); Over voltage: Output limiter (Restored automatically); Integrated Power Limit: Output limiter (Restored automatically)
    • Power supply protection: Thermal: Output limiter (Restored automatically) ? Power supply shutdown; Over voltage: Power supply shutdown; Over current: Power supply shutdown
  • Amplifier class: Class D, Balanced output circuit (BTL)
  • Cooling: 16 step variable speed fan x 2, front to rear airflow
  • Power requirements: Depending on area of purchase; 100V 50Hz/60Hz, 120V 60Hz, 220V-240V 50Hz/60Hz *Verified as operating at rated power voltage +/- 10% voltage.
  • Power consumption: 310W (1/8 MAX power, 4O, Pink noise at all channels), 60W (4O, Idling)
  • Dimensions (WxHxD): 18-7/8" x 3-7/16" x 15-2/8" (480 x 88 x 388mm)
  • Net weight: 7.4 kg (16.31 lbs)
  • Others:
    • Operating Temperature: 0°C to +40°C
    • Storage temperature: -20°C to +60°C

Yamaha PX10
Dual-channel Power Amplifier

OUR PART #  PX10

Product Information:

The Yamaha PX10 versatile PX series power amplifiers lineup combines intelligent processing with high output power to meet the requirements of a vast range of sound reinforcement environments. 1000W x 2 at 8O / 1200W x 2 at 4O.

Yamaha PX10 Includes:

  • USB cover
  • Owner's Manual
  • Specification sheet
  • AC cable (2.0m)

Yamaha PX10 Features:

  • 2x 1200W at 4O
  • Newly developed Class-D amplifier engine with a custom LSI
  • Flexible onboard PEQ, crossover, filters, delay, and limiter functions
  • Yamaha Speaker presets
  • Utlities for safe and secure operation

Yamaha PX10 Specifications:

  • Sampling frequency rate: 48kHz
  • A/D D/A Converters: AD/DA: 24-bit linear, 128 times over sampling
  • Total harmonic distortion: 0.1% (1kHz, 10W), 0.3% (1kHz, Half power)
  • Frequency response: ±1.0dB (1W, 8O, 20Hz to 20kHz)
  • S/N ratio: 101dB (A-weighted, 8O, Gain setting = +14dBu)
  • Crosstalk: Less than -60dB (Half Power, 8O, 1kHz, Vol max input 150O shunt)
  • Voltage Gain/Sensitivity:
    • 8O Volume max: 32.0dB/+9.3dBu (Gain setting: 32dB), 26.0dB/+15.3dBu (Gain setting: 26dB), 37.3dB/+4dBu (Gain setting: +4dBu), 27.3dB/+14dBu (Gain setting: +14dBu)
  • Maximum input voltage: +24dBu
  • Input impedance: 20kO (Balance), 10kO (Unbalance)
  • I/O Connectors:
    • Speaker output ports: Neutrik speakON NL4 x2, Binding post x2 pairs, 1/4" PHONE(TS) x2
    • Line Input: XLR-3-31 x2, 1/4 "PHONE(TRS) x2
    • Others: USB 2.0 Standard-A Connector (Female) for Save/Load, Speaker preset update, Firmware update with USB memory; AC inlet x1 with AC cord clamp
  • Indicators: POWER x1 (Green), ALERT x1 (Red), USB x1 (Green), PROTECT x2 (Red), CLIP/LIMIT x2 (Red), SIGNAL x2 (Green); Auto LED off feature
  • Processors: Input summing; D-CONTOUR(FOH/MAIN, MONITOR, OFF); Delay(0 - 74msec); HPF/LPF(cutoff frequency 20Hz~20kHz with polarity control); Speaker Processor(6 band PEQ + Limiter + Delay)
  • Latency: 1.5 msec (Analog Input to Speakers)
  • Presets: 8 user amplifier presets (Factory preset: Speaker presets for Yamaha passive speakers)
  • Protection circuit:
    • Load protection: POWER switch on/off: Output mute; Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset; DC-fault: Power Supply shutdown (NOT restored automatically)
    • Amplifier protection: Thermal: Output limiter (Restored automatically) ? Output mute (Restored automatically); Over current: Output mute (Restored automatically); Over voltage: Output limiter (Restored automatically); Integrated Power Limit: Output limiter (Restored automatically)
    • Power supply protection: Thermal: Output limiter (Restored automatically) ? Power supply shutdown; Over voltage: Power supply shutdown; Over current: Power supply shutdown
  • Amplifier class: Class D, Balanced output circuit (BTL)
  • Cooling: 16 step variable speed fan x 2, front to rear airflow
  • Power requirements: Depending on area of purchase; 100V 50Hz/60Hz, 120V 60Hz, 220V-240V 50Hz/60Hz *Verified as operating at rated power voltage +/- 10% voltage.
  • Power consumption: 310W (1/8 MAX power, 4O, Pink noise at all channels), 60W (4O, Idling)
  • Dimensions (WxHxD): 18-7/8" x 3-7/16" x 15-2/8" (480 x 88 x 388mm)
  • Net weight: 7.4 kg (16.31 lbs)
  • Others:
    • Operating Temperature: 0°C to +40°C
    • Storage temperature: -20°C to +60°C
