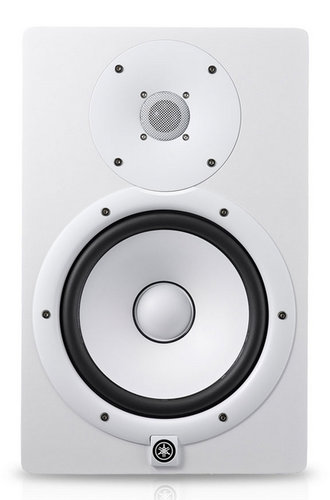

Yamaha HS8IW
White Bi Amplified Monitor Speaker with 8" LF (75W) Cone and 1" HF (45W) Dome


Our Price: $399.99
List Price: $550.00
You save 27%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Yamaha HS8IW is a white 2-way bass-reflex bi-amplified nearfield studio monitor with 8" cone woofer and 1" dome tweeter. Mounting points on 4 surfaces are available.

Yamaha HS8IW Includes:

  • Owner's Manual
  • Power cord
  • Two Screws for installing brackets

Yamaha HS8IW Features:

  • 2-way bass-reflex bi-amplified nearfield studio monitor with 8" cone woofer and 1" dome tweeter
  • 38Hz - 30kHz (-10dB), 47Hz - 24kHz (-3dB) frequency response
  • 75W LF plus 45W HF bi-amp system for high-performance 120W power amplification
  • ROOM CONTROL and HIGH TRIM response controls
  • XLR and TRS phone jack inputs accept balanced or unbalanced signals
  • Mounting points on 4 surfaces
  • Packaging single

Yamaha HS8IW Specifications:

  • Speaker type: 2-way bi-amp powered studio monitor
  • Frequency response (-10dB): 38Hz - 30kHz
  • Frequency response (-3dB): 47Hz - 24kHz
  • Components:
    • LF: 8" cone
    • HF: 1" dome
  • Crossover: 2kHz
  • Output power: 120W (LF:75W, HF:45W)
  • Input sensitivity: -10 dBu/10k ohms
  • I/O connectors: XLR3-31 type (balanced), PHONE (balanced)
  • Indicators: Power ON (White LED)
  • Power consumption: 60W
  • Shape: Bass-reflex type
  • Cabinet material: MDF
  • Flying and mounting hardware: Four surfaces x 2 x M8 (120 mm pitch)
  • Dimensions (WxHxD): 9-13/16" x 15-3/8" x 13-1/8" (250 x 390 x 334mm)
  • Net weight: 10.7 kg (23.6 lbs.)
  • Accessories: Owner's Manual, Power cord, Screws for installing brackets x 2
  • Options: Baton bracket BBS251, Ceiling bracket BCS251, Wall bracket BWS251, Wall / ceiling bracket BWS50
  • Packaging: Single
  • Others: LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
