Product Overview

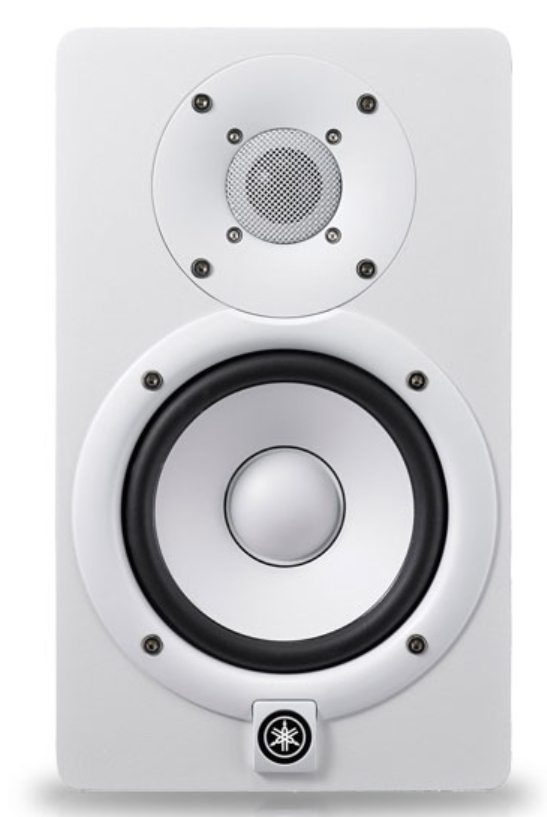

The Yamaha HS5I is a white, 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter. Mounting points on 4 surfaces are available.
Yamaha HS5IW Includes:
- Owner's Manual
- Power cord
- Two Screws for installing brackets
Yamaha HS5IW Features:
- 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
- 54Hz - 30kHz (-10dB), 74Hz - 24kHz (-3dB) frequency response
- 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
- ROOM CONTROL and HIGH TRIM response controls
- XLR and TRS phone jack inputs accept balanced or unbalanced signals
- Mounting points on 4 surfaces
- Packaging single
Yamaha HS5IW Specifications:
- Speaker type: 2-way bi-amp powered studio monitor
- Frequency response (-10dB): 54Hz - 30kHz
- Frequency response (-3dB): 74Hz - 24kHz
- Components:
- Crossover: 2kHz
- Output power: 70W (LF:45W, HF:25W)
- Input sensitivity: -10 dBu/10k ohms
- I/O connectors: XLR3-31 type (balanced), PHONE (balanced)
- Indicators: Power ON (White LED)
- Power consumption: 45W
- Shape: Bass-reflex type
- Cabinet material: MDF
- Flying and mounting hardware: Four surfaces x 2 x M5 (60 mm pitch)
- Dimensions (WxHxD): 6-11/16" x 11-1/4" x 8-3/4" (170 x 285 x 222mm)
- Net weight: 5.5 kg (12.1 lbs.)
- Options: Wall / ceiling bracket BWS20, Ceiling bracket BCS20
- Packaging: Single
- Others: LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
