Product Overview

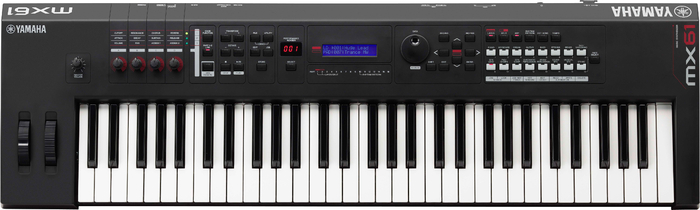

Yamaha's MX61 is a 61 key music synthesizer which combines Motif XS sounds, USB Audio/MIDI connectivity and advanced DAW/VST controller features in one affordable package.
Yamaha MX61 Features:
- Over 1000 Sounds from the MOTIF Series
- VCM Effects
- Easy Split/Layer Performance Mode for Instant Inspiration
- 16-Part Multi Timbral and 128-note Polyphony
- Bi-directional USB Audio/MID Interfacing
- Extensive Hands-On Controls for VSTs and DAWs
- A Complete Suite of Music Production Software Included
- Complete Analog and Digital Connectivity
- A Lightweight Design with a Quality Yamaha Keyboard
Yamaha MX61 Specifications:
- Size/Weight
- Dimensions (WxHxD): 38.74" x 4.41" x 11.77" (984 x 112 x 299 mm)
- Weight: 10.58 lbs (4.8 kg)
- Control Interface
- Keyboard
- Number of Keys: 61
- Initial Touch: Yes
- Tone Generator
- Tone generator: AWM2
- Maximum Polyphony: 128 notes
- Multi Timbral Capacity: 16 parts (Internal)
- Wave: Approx. 166 MB (when converted to 16-bit linear format)
- Voices
- Preset: 1,106 Normal Voices + 61 Drum Kits
- GM: 128 Normal Voices + 1 Drum Kit
- User: 128 Normal Voices + 8 Drum Kits
- Performance
- Effects
- Reverb x 9 types (42 presets)
- Chorus x 17 types (88 presets)
- Insertion Effect x 48 types (267 presets) x 4
- Master EQ (5 bands)
- Sequencer
- Tempo (BPM): 5 - 300
- Songs: 27 Demo Songs
- Patterns: 208 Patterns
- Arpeggio: 999 types
- Sequence Formats: SMF Format 0 (playback only)
- Sequence Software compatible with the Remote Control function: For Windows®: Cubase 6 or later, SONAR X1 Producer For Mac®: Cubase 6 or later, Logic Pro 9, Digital Performer 7 (*Functions to be controlled differ depending on the software)
- Controllers: Pitch Bend Wheel x 1, Modulation Wheel x 1, Assignable Knob x 4, [DATA] dial x 1
- Display: 3 digit LED + 20 x 2 line character LCD (backlit)
- Connectors: OUTPUT [L / MONO] / [R] (standard phone jack), [PHONE] (standard stereo phone jack), [FOOT CONTROLLER], [SUSTAIN], MIDI [IN] / [OUT], USB [TO HOST] / [TO DEVICE], [AUX IN], DC IN
- Power Supply: 9W
- Accessories: AC adapter (PA-150 or an equivalent recommended by Yamaha), Owner’s Manual, Online Manual CD-ROM x 1 (containing Reference Manual, Synthesizer Parameter Manual, and Data List), DVD-ROM x 1 (containing DAW software)
