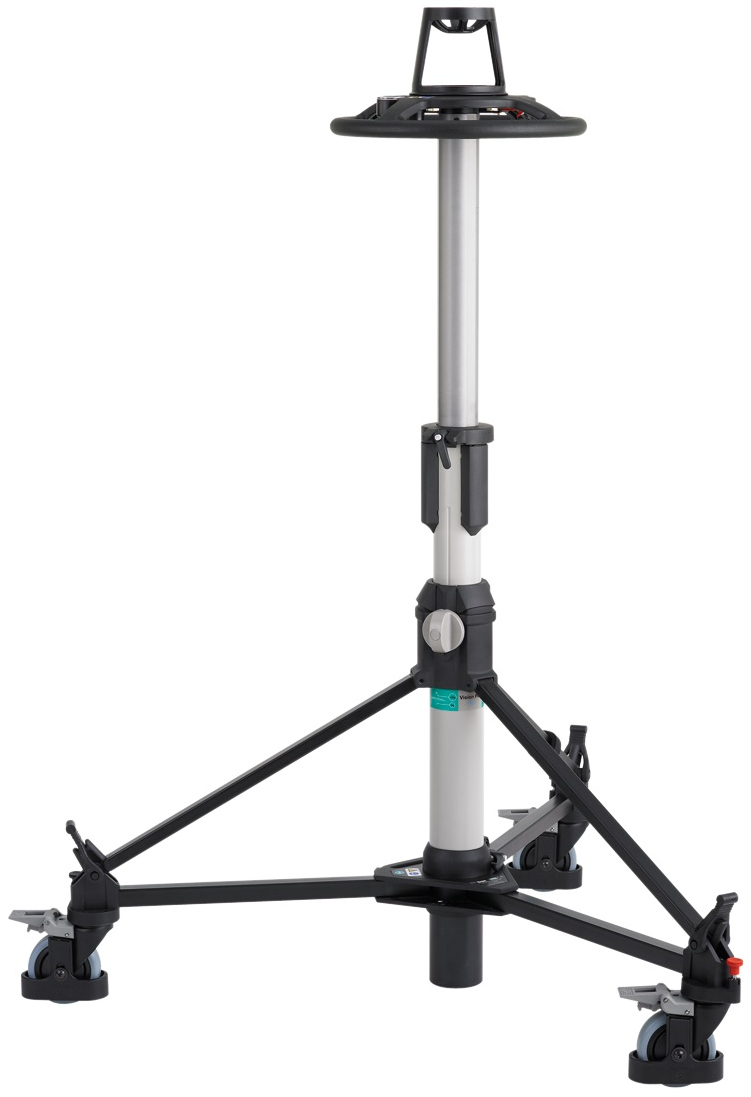

Vinten Vision Ped Plus
Fully Portable Pneumatic Camera Pedestal Mount

OUR PART #  V3951-0001

Call for price! Not available online.
List Price: $5,950.00


Recommended Accessories

The Vinten Vision Ped Plus is ideal for applications where operational simplicity, portability, and reliability are key necessities, such as in a small production studio setting. For pressurization, it features an onboard manual pump plus an inlet valve for use with an external supply, making it easy to achieve Perfect Balance. In addition, it includes a pressure gauge for clear, reliable set-up, and the detachable skid allows it to be easily broken down into 2 sections for convenient storage and transportation.

With a maximum payload capacity of 66 lbs (30 kg), a height range of 29.5" to 63" (75 cm to 160 cm), and an on-shot stroke of 16.1" (41 cm), the Vision Ped Plus is a highly competitive and functional pedestal; an excellent solution for situations where professional framing and creative movement is essential.

Vinten Vision Ped Plus Key Features:

  • Portable and reliable
  • Detachable skid for easy storage and transportation
  • Integral pressure gauge for easy set-up

Vinten Vision Ped Plus Specifications:

  • Model No.: V3951-0001
  • Max. Capacity: 66 lbs (30 kg)
  • Height Range: 29.5" to 63" (75 to 160 cm)
  • Weight: 30.2 lbs (13.7 kg)
  • On-Shot Stroke: 16.1" (41 cm)
  • Tracking Width: 27" (69 cm)
  • Wheel Diameter: 4" (10 cm)
  • Steering Ring Diameter: 15" (38 cm)
  • Wheel Lock: Yes
  • Color: Gray
