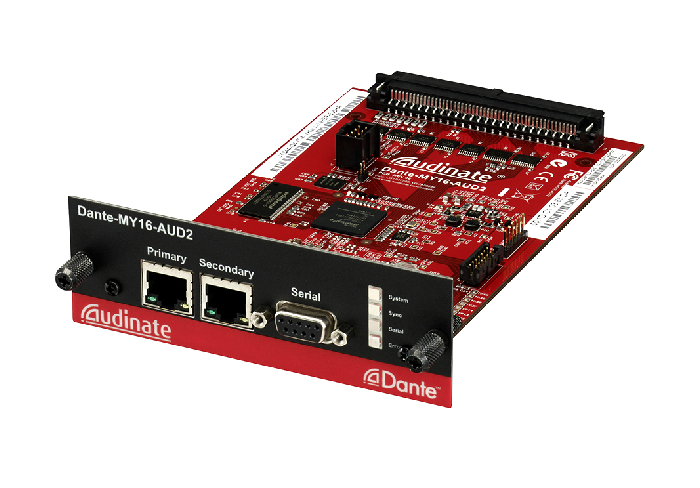

Yamaha DANTE-MY16-AUD2
Mini YGDAI Dante Card

OUR PART #  DANTE-MY16-AUD2

Our Price: $661.72
List Price: $689.00
(Low Price Guarantee)
In Stock

The Yamaha Dante-MY16-AUD2 card is a fully compatible Yamaha Mini-YGDAI standard card that instantly Dante enables your Yamaha mixer, processor or power amp. Each Dante-MY16-AUD2 provides 16 bidirectional audio channels (8 at 96 kHz) and full Dante network audio redundancy over Gigabit Ethernet.

Yamaha Dante-MY16-AUD2 Features:

  • Supports 44.1 and 88.2kHz sample rates, in addition tothe previously-supported 48 and 96 kHz sample rates.
  • Sample rate pull-up/down can be used to synchroniseaudio with video that has undergone frame rate conversion.
  • Dante-MY16-AUD2 cards can be daisy chained togethervia the secondary Ethernet port.
  • Dante-MY16-AUD2 can be PIN-locked and unlocked usingDante Controller.
  • 2x RJ-45 connectors for Dante I/O, 1x D-sub 9 pinconnector for RS232-C.
  • Latency can be selected from five preset values: 0.25ms, 0.5 ms, 1.0 ms, 2.0 ms, or 5.0 ms.
  • More than 16 audio channels can be transferred whenused with multiple Dante-MY16-AUD2 cards.
  • Automatic discovery and setup for network devices.Devices names can be specified as required.
  • Allows direct PC or Mac audio input and output without the need for anaudio interface.

Yamaha Dante-MY16-AUD2 Specifications:

  • Audio channels: 16IN / 16OUT
  • Sample rates: 44.1kHz, 48kHz, 88.2kHz and 96kHz
  • Sample rate pull-up/down: +4.1667, +0.1, -0.1, and -4.0 %
  • Sample bit-depth: 16, 24 or 32-bit PCM
  • Network: 2 x Gigabit (1000Mbps) Ethernet RJ45 connectors
  • Redundancy: Glitch-free Dante audio redundancy using dual Ethernet networks (redundant mode)
  • Daisy chaining: Daisy chain multiple Dante-MY16-AUD2 cards together (switched mode)
  • HA Remote: Support for HA Remote capable Yamaha products
  • Expandable:
    • Install up to four Dante-MY16-AUD2 cards in available
    • MY16-compatible slots for up to 64x64 audio channels

Yamaha DANTE-MY16-AUD2
Mini YGDAI Dante Card

OUR PART #  DANTE-MY16-AUD2

Product Information:

The Yamaha Dante-MY16-AUD2 card is a fully compatible Yamaha Mini-YGDAI standard card that instantly Dante enables your Yamaha mixer, processor or power amp. Each Dante-MY16-AUD2 provides 16 bidirectional audio channels (8 at 96 kHz) and full Dante network audio redundancy over Gigabit Ethernet.

Yamaha Dante-MY16-AUD2 Features:

  • Supports 44.1 and 88.2kHz sample rates, in addition tothe previously-supported 48 and 96 kHz sample rates.
  • Sample rate pull-up/down can be used to synchroniseaudio with video that has undergone frame rate conversion.
  • Dante-MY16-AUD2 cards can be daisy chained togethervia the secondary Ethernet port.
  • Dante-MY16-AUD2 can be PIN-locked and unlocked usingDante Controller.
  • 2x RJ-45 connectors for Dante I/O, 1x D-sub 9 pinconnector for RS232-C.
  • Latency can be selected from five preset values: 0.25ms, 0.5 ms, 1.0 ms, 2.0 ms, or 5.0 ms.
  • More than 16 audio channels can be transferred whenused with multiple Dante-MY16-AUD2 cards.
  • Automatic discovery and setup for network devices.Devices names can be specified as required.
  • Allows direct PC or Mac audio input and output without the need for anaudio interface.

Yamaha Dante-MY16-AUD2 Specifications:

  • Audio channels: 16IN / 16OUT
  • Sample rates: 44.1kHz, 48kHz, 88.2kHz and 96kHz
  • Sample rate pull-up/down: +4.1667, +0.1, -0.1, and -4.0 %
  • Sample bit-depth: 16, 24 or 32-bit PCM
  • Network: 2 x Gigabit (1000Mbps) Ethernet RJ45 connectors
  • Redundancy: Glitch-free Dante audio redundancy using dual Ethernet networks (redundant mode)
  • Daisy chaining: Daisy chain multiple Dante-MY16-AUD2 cards together (switched mode)
  • HA Remote: Support for HA Remote capable Yamaha products
  • Expandable:
    • Install up to four Dante-MY16-AUD2 cards in available
    • MY16-compatible slots for up to 64x64 audio channels
