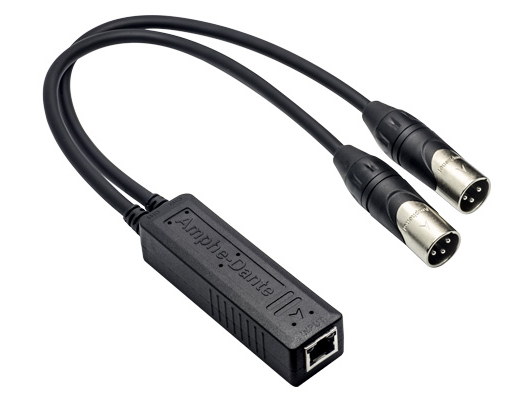

Amphenol RJD1212-0050 2 channel Dante output interface, XLR (M)

The Amphenol Audio Amphe-Dante RJD1212-0050 is a Dante® audio to analogue audio adapter, 0x2, RJ45 input, 2 channel XLR output.

Amphe-Dante are Dante® audio to analogue audio adapters, each with one RJ45 Dante input, and one and two (respectively) AX series XLR analogue outputs in a molded housing.

Amphe-Dante products enable simple connection of analogue equipment to a Dante network and can receive audio channels from a Dante network and provide studio-quality, low-latency audio via an XLR connector to analogue audio equipment. Any audio available on the Dante network can be routed via the XLR outputs to an amplifier, powered speaker, mixing console, digital signal processor (DSP), or other analogue audio device.

Amphenol Amphe-Dante RJD1212-0050 Features:

• Dante® audio input
• One channel or Two channel analogue output
• Durable overmolded housing
• Resilient cable strain relief
• RJ45 metal connectors with integrated LED’s
• AX Series XLR connectors

Amphenol Amphe-Dante RJD1212-0050 Specifications:

• Length: 500 mm
• Input Connector: (1) RJ45 (Ethernet)
• Output Connector: (2) XLR Male
• Power Consumption: < 2 Watt
• Analog Audio:
  • Output Level (Balanced): +4dBu @ 12 dB headroom
  • Output Impedance: 150 ohm balanced or 75 ohm unbalanced
  • Frequency Response: 20 Hz to 20 kHz (-/+0.5 dB)
  • Dynamic Range: > 100 dB
  • Signal to Noise: > 100 dB
  • Total Harmonic Distortion: < 0.05% at +4 dBu
• Dante Audio:
  • Number of Channels: 2 output channel
  • Sample Rate: 44.1 kHz, 48 kHz (default), and 96 kHz
  • Bit Depth: 24 bits
  • Network Speed: 100 Mbps
• Operating Temperature: -5ºC to +60ºC (23ºF to +140ºF)
• Housing: PVC 60P Black
