Biamp Community IC6-2082T96B Dual 8" 2-Way High Output Installation Speaker, Indoor, Black

OUR PART #: IC6-2082T96B

Copied to clipboard

I SERIES Compact 600 loudspeakers provide excellent acoustic performance, flexibility and elegant aesthetics for a diverse range of applications in today's performance venues. ...Read more

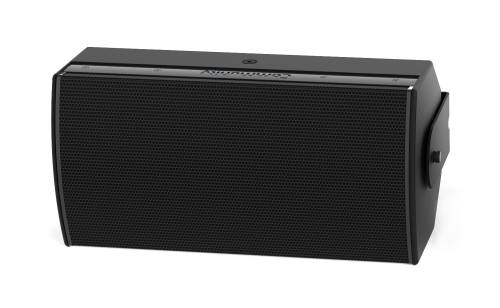

Biamp Community IC6-2082T96B Dual 8" 2-Way High Output Installation Speaker, Indoor, Black Image 1
Biamp Community IC6-2082T96B Dual 8" 2-Way High Output Installation Speaker, Indoor, Black
Our Price: $2,310.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$65/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

I SERIES Compact 600 loudspeakers provide excellent acoustic performance, flexibility and elegant aesthetics for a diverse range of applications in today's performance venues. Designed to support the goals of systems integrators and consultants in need of very compact loudspeakers with exceptional near field fidelity for foreground or background music applications and articulate voice projection with very high output capabilities for fill and distributed applications. I SERIES Compact loudspeakers are engineered to be used alone or integrated into arrays along with I SERIES Point Source (IP) or Subwoofer (IS) models using the comprehensive selection of available BalancePoint™ Flyware modular array brackets.

The Community IC6-2082/96 is designed for demanding extended high output, high performance applications without sacrificing fidelity or coverage consistency. Most symmetrical dual 8" 2-way loudspeakers suffer from serious coverage inconsistencies through the crossover region. The IC6-2082/96 solves this problem by using a very high quality, low distortion 1.7" diaphragm neodymium HF compression driver on a large field-rotatable horn that is crossed over to partially baffled 8" LF drivers at an unusually low crossover frequency. The combination of baffles and low crossover point allows the IC6-2082/96 to perform similarly to a coaxial loudspeaker, resulting in a consistent, symmetrical, and wide coverage pattern through its operating range. The long excursion LF drivers and low velocity port effortlessly extend LF performance at any output level. Additionally, 16 ohm or 70V/100V models expand application flexibility both indoors and out. Multiple attachment points provide compatibility with a variety of Community and third party mounting brackets.

The Community IC6-2082T96 loudspeaker system is a two-way, full-range design incorporating two 8 in. (203mm) ferrite LF drivers with inherently weather resistant cones and one 1 in. (25mm) exit ketone polymer diaphragm, neodymium compression driver. The drivers are connected to an internal frequency dividing network with an acoustical crossover frequency of 1100 Hz. There is one five-terminal barrier strip on a recessed powder-coated 2mm thick steel input panel. The system is equipped with a high performance 200W autoformer for use in 70V/100V audio systems, with taps of 25W, 50W, 100W, and 200W for 70V operation (50W, 100W, and 200W for 100V systems).The modified trapezoidal loudspeaker enclosure is constructed of 11-layer cross-laminated exterior grade 15mm thick Baltic birch plywood and is fitted with (9) M10 and (4) M8 rigging inserts and finished with low gloss, uniformly textured coating. The front of the enclosure is fitted with a wraparound powder-coated 1.5mm perforated steel grille backed with acoustically transparent woven fabric. The system has an operating range of 49 Hz to 19.5 kHz (-10dB SPL). The system produces a sound pressure level of 99 dB (averaged SPL between -10 dB points) on axis at one meter with a power input of 1 Watt, and is capable of producing a continuous output of 124 dB SPL (with peak output of 130 dB SPL) on axis at one meter. The nominal dispersion is 90° H x 60° V. The loudspeaker is 11.30 in. (287 mm) H x 22.46 in. (571 mm) W (front) x 5.81 in. (148 mm) W (rear) x 10.62 in. (270 mm) D, and weighs 31.0 lbs. (14.1 kg).

Community IC6-2082T96 Features:

  • Engineered for demanding high output, highperformance applications
  • Exceptional fidelity with elegant I SERIES aesthetics
  • Large, field-rotatable HF horn and LF pattern control technology for wide,consistent coverage

Community IC6-2082T96 Specifications:

  • Technical Specifications
    • Operating Environment: Indoor
    • Operating Range: 50 Hz to 19.5 kHz
    • Nominal Beamwidth (H x V): 90° x 60°, rotatable waveguide
    • Transducers
      • LF 2 x 8" (203mm) ferrite driver, 1.5" (37mm) voice coil
      • HF 1 x 1" (25mm) exit, 1.7" (44mm) voice coil, ketone polymer diaphragm, neodymium compression driver
    • Recommended Amplifiers: 300W - 600W @ 16 ohms, (69V - 98V)
  • Physical
    • Input Connection: (1) Screw terminal block (5-position)
    • Mounting Points: (9) M10 threaded inserts; (4) M8 threaded inserts (rear)
    • Weight: 35 lbs (15.9 kg) loudspeaker
    • Dimensions (H x W x D): 11.30" x 22.46" x 10.62" (287 x 571 x 270 mm)

Note:

Image shown is for display purposes only. For more information please contact your Full Compass Sales Pro.
