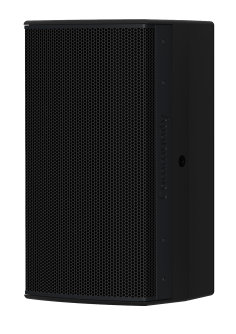

Biamp Community IC6-1082/96B 8" 2-Way Installation Speaker, Indoor, Black

I SERIES Compact 600 loudspeakers provide excellent acoustic performance, flexibility and elegant aesthetics for a diverse range of applications in today's performance venues. Designed to support the goals of systems integrators and consultants in need of very compact loudspeakers with exceptional near field fidelity for foreground or background music applications and articulate voice projection with very high output capabilities for fill and distributed applications. I SERIES Compact loudspeakers are engineered to be used alone or integrated into arrays along with I SERIES Point Source (IP) or Subwoofer (IS) models using the comprehensive selection of available BalancePoint™ Flyware modular array brackets.

The IC6-1082/96 is designed for maximum performance in a minimal size enclosure. The large, rotatable horn coupled to a 1.75" (44mm) diaphragm HF driver provides consistent directivity and smooth response through the critical voice band, then seamlessly integrates with the high output 8" LF through the crossover region. The precisely engineered low velocity, flared port ensures low distortion, extended LF performance at any output level. Additionally, 8 ohm or 70V/100V models expand application flexibility both indoors and out. Multiple attachment points provide compatibility with a variety of Community and third party mounting brackets.

Community IC6-1082/96 Features:

• Excellent LF extension and output in a very smallenclosure
• Exceptional fidelity with elegant I SERIES aesthetics
• Large, field-rotatable HF horn for smooth, consistentcoverage
• Low impedance (8 ohm) or 70V/100V models available
• Low profile U-Bracket or Vertical Yoke available, compatible with mostthird party wall and ceiling brackets

Community IC6-1082/96 Specifications:

• Technical Specifications:
  • Operating Mode Low Impedance or 70V/100V models
  • Operating Environment Indoor or Weather-Resistant Outdoor
  • Operating Range2 53 Hz to 20 kHz
  • Nominal Beamwidth (H x V) 90° x 60°, rotatable waveguide
  • Transducers:
    • LF 1 x 8" (203mm) ferrite driver, 1.8" (45mm) voice coil
    • HF 1 x 1" (25mm) exit, 1.75" (44mm) voice coil, advanced polymer diaphragm, ferrite compression driver
  • Recommended Amplifiers 250W - 500W @ 8 ohms, (45V - 63V)
• Physical:
  • Input Connection (1) Screw terminal block (5-position)
  • Mounting Points (7) M10 threaded inserts; (4) M8 threaded inserts (rear)
  • Weight: 25 lbs (11.3 kg) loudspeaker
  • Dimensions: 18.75" x 10.40" x 10.63" (476 x 264 x 270 mm)

Note:

Image shown is for display purposes only. For more information on this item please contact your Full Compass Sales Pro.
