Community IC6-1062WT00
6.5-inch Two-Way, 70V/100V, Weather-Resistant, Grey

OUR PART #:  IC6-1062WT00

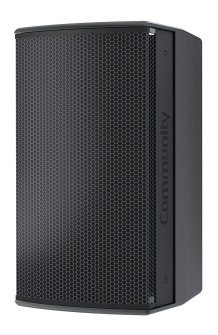

The Community IC6-1062WT00 is a loudspeaker system that is two-way, full-range design incorporating one 6.5 in.
Learn More
Our Price: $1,150.00
Write the first review.
Community IC6-1062WT00
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Community IC6-1062WT00 is a loudspeaker system that is two-way, full-range design incorporating one 6.5 in. (165mm) ferrite LF driver with an inherently weather resistant cone and one 1 in. (25mm) exit direct radiating damped fabric dome diaphragm, ferrofluid and heatsink-cooled dual-neodymium motor. The drivers are connected to an internal frequency dividing network with an acoustical crossover frequency of 2500 Hz. The system is equipped with a high performance 100W autoformer for use in 70V/100V audio systems, with taps of 12.5W, 25W, 50W, and 100W for 70V operation (25W, 50W, and 100W for 100V systems). The modified trapezoidal loudspeaker enclosure is constructed of a thermally stabile, dense structural-grade composite embedded with dual layers of fiberglass cloth and shall be fitted with (9) M6 rigging inserts. The enclosure has a dual-layer finish of heavy exterior-grade paint and a UV-resistant top coat. The front of the enclosure is fitted with a wraparound powder-coated 1.5mm perforated marine-grade aluminum grille backed with acoustically transparent woven fabric that has been treated with a hydrophobic compound. The secured input panel cover and gland nut provides a sealed connection for the internally connected 12 ft (3.6m) 14 gauge SJOW cable. The system has an operating range of 56 Hz to 18.5 kHz (-10dB SPL). The system produces a sound pressure level of 92 dB (averaged SPL between -10 dB points) on axis at one meter with a power input of 1 Watt, and is capable of producing a continuous output of 114 dB SPL (with peak output of 120 dB SPL) on axis at one meter.

I SERIES Compact 600 loudspeakers provide excellent acoustic performance, flexibility and elegant aesthetics for a diverse range of applications in today's performance venues. Designed to support the goals of systems integrators and consultants in need of very compact loudspeakers with exceptional near field fidelity for foreground or background music applications and articulate voice projection with very high output capabilities for fill and distributed applications. I SERIES Compact loudspeakers are engineered to be used alone or integrated into arrays along with I SERIES Point Source (IP) or Subwoofer (IS) models using the comprehensive selection of available BalancePoint™ Flyware modular array brackets.

Note: Image shown is for display purposes only.

Community’s exclusive PolyGlas™ weather-resistant enclosures are built for a lifetime of performance outdoors. In contrast to fiberglass-covered wood enclosures, PolyGlas™ cabinets are virtually immune to the destructive effects of moisture and temperature cycling.

Community IC6-1062WT00 Features:

  • Excellent LF extension and output in a very smallenclosure
  • Exceptional fidelity with elegant I SERIES aesthetics
  • Very wide coverage pattern
  • Low profile U-Bracket mounting option, compatible with most third partywall and ceiling brackets.

Community IC6-1062WT00 Specifications:

  • Technical Specifications:
    • Operating Mode: Low Impedance or 70V/100V models
    • Operating Environment: Weather-Resistant Outdoor
    • Operating Range: 56 Hz to 18.5 kHz
    • Nominal Beamwidth (H x V) 100° x 100°
    • Transducers:
      • LF 1 x 6.5" (165mm) ferrite driver, 1.5" (37mm) voice coil
      • HF 1 x 1" (25mm) direct radiating damped fabric dome diaphragm, ferrofluidand heatsink-cooled dual-neodymium motor
    • Recommended Amplifiers: 150W - 300W @ 8 ohms, (35V - 49V)
  • Physical:
    • Input Connection: (1) Screw terminal block (5-position)
    • Mounting Points: (9) M6 threaded rigging points
    • Environmental Outdoor:
      • IP55W per IEC 60529, MIL-STD-810G
    • Weight: 16.6 lbs (7.5 kg) loudspeaker
    • Dimensions H x W x D:  14.29" x 8.00" x 8.94" (363 x 203 x 227mm)
Community IUB1062WRG Weather-Resistant U-bracket For IC6-1062, Grey
Community IUB1062WRG Weather-Resistant U-bracket For IC6-1062, Grey
The Community IUB1062WR is a weather-resistant U-Bracket for the IC6-1062. It allows mounting of the IC6-1082, pivoting on the long axis individually. The kit weighs 4.4 lbs (2.0 kg). The weather-resistant U-Bracket kits contain stainless ...
