QSC AC-C8T
8" Two-Way Ceiling Speaker, Sold In Pairs

OUR PART #  AC-C8T

Our Price: $170.00
(Low Price Guarantee)

This product must be purchased in multiples of 2

Qty: Free Shipping Available

In Stock

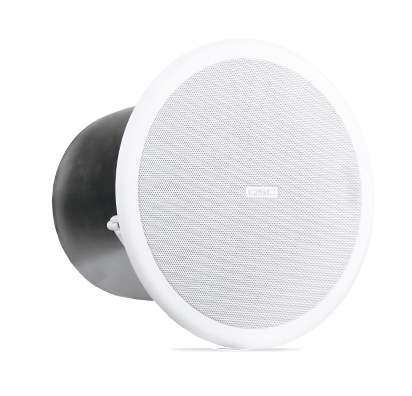

The QSC AcousticCoverage™ AC-C8T is a ceiling-mounted 8-inch two-way loudspeaker with 70/100V transformer, suitable for a wide variety of voice paging and background music sound reinforcement applications.

Note: This item is priced individually but sold in pairs. For more information please contact your Full Compass Sales Pro.

AcousticCoverage™ is designed to offer integrators a cost-effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical BGM class products.

The high quality 8-inch polypropylene cone transducer with butyl rubber surround and the sensitivity matched coaxially mounted. 86-inch silk dome tweeter offers pristine clarity through the critical vocal range for increased speech intelligibility. With 100 degrees of conical coverage, the AC-C8T reduces the number of loudspeakers required for even coverage in low ceiling applications.

The AC-C8T baffle and grille are QSC standard white (RAL 9010) to match complementing QSC product families and includes UV inhibitors to prevent discoloration over time. The AC-C8T may also be painted to match any décor.

QSC AC-C8T Features:

  • High quality transducers provide exceptional claritythrough the critical voice range.
  • Improved musicality often not seen in typical BGMclass products.
  • Ported baffle for increased low frequency extensiondown to 52 Hz.
  • Low saturation 70/100V transformers with 8 ohm bypass.
  • 4-pole Euroblock connector eases system wiring.
  • Advanced voicing via QSC Intrinsic Correction™,applied using the Q-SYS networking platform or CXD Series Amplifiers.
  • White (RAL 9010) with UV inhibitors to matchcomplimenting QSC product families.
  • Complete EASE, CF2, CAD, & BIM information available online.

QSC AC-C8T Specifications:

  • Effective frequency range: 52 Hz – 20 kHz
  • Rated noise power / voltage: 80 watts / 25.3 volts (rms)
  • Broad-band sensitivity: 89 dB SPL
  • Coverage angle (-6 dB): 100° (500 Hz to 5 kHz)
  • Maximum continuous SPL: 108 dB
  • Maximum peak SPL: 114 dB
  • Rated impedance: 8 ohms
  • Transformer taps:
    • 70 V: 60, 30, 15, 7.5, 3.8 watts and 8-ohm bypass
    • 100V: 60, 30, 15, 7.5 watts and 8-ohm bypass
  • HF Transducer: 22 mm (.86 in) silk dome tweeter,coaxially mounted
  • LF Transducer: 210 mm (8 in) Polypropylene cone withbutyl rubber surround
  • Input connector type: Euroblock connector withparallel output terminals
  • Baffle material: Painted ABS polymer
  • Grille material: Painted steel
  • Back can material: Plated steel
  • Testing: Listed UL1480, UL2043 safe for use in airhandling space
  • Net weight: 5.2 kg (11.5 lb)
  • Product dimensions: 316 x 288 mm (12.4 x 11.3 in
  • Cut-out Dimensions: 285 mm (11.2 in)
  • Ceiling Capture Thickness: 6 - 38 mm (0.25 - 1.5 in)
  • Shipping weight: 13.3 kg (29.3 lb)  (pair packed)
  • Shipping dimensions: 743 x 381 x 381 mm  (29.3 x15 x 15 in)
  • Included accessories: Rails & C-ring for ceiling tile installation

Click to download

QSC AC-C8T
8" Two-Way Ceiling Speaker, Sold In Pairs

OUR PART #  AC-C8T

Product Information:

The QSC AcousticCoverage™ AC-C8T is a ceiling-mounted 8-inch two-way loudspeaker with 70/100V transformer, suitable for a wide variety of voice paging and background music sound reinforcement applications.

Note: This item is priced individually but sold in pairs. For more information please contact your Full Compass Sales Pro.

AcousticCoverage™ is designed to offer integrators a cost-effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical BGM class products.

The high quality 8-inch polypropylene cone transducer with butyl rubber surround and the sensitivity matched coaxially mounted. 86-inch silk dome tweeter offers pristine clarity through the critical vocal range for increased speech intelligibility. With 100 degrees of conical coverage, the AC-C8T reduces the number of loudspeakers required for even coverage in low ceiling applications.

The AC-C8T baffle and grille are QSC standard white (RAL 9010) to match complementing QSC product families and includes UV inhibitors to prevent discoloration over time. The AC-C8T may also be painted to match any décor.

QSC AC-C8T Features:

  • High quality transducers provide exceptional claritythrough the critical voice range.
  • Improved musicality often not seen in typical BGMclass products.
  • Ported baffle for increased low frequency extensiondown to 52 Hz.
  • Low saturation 70/100V transformers with 8 ohm bypass.
  • 4-pole Euroblock connector eases system wiring.
  • Advanced voicing via QSC Intrinsic Correction™,applied using the Q-SYS networking platform or CXD Series Amplifiers.
  • White (RAL 9010) with UV inhibitors to matchcomplimenting QSC product families.
  • Complete EASE, CF2, CAD, & BIM information available online.

QSC AC-C8T Specifications:

  • Effective frequency range: 52 Hz – 20 kHz
  • Rated noise power / voltage: 80 watts / 25.3 volts (rms)
  • Broad-band sensitivity: 89 dB SPL
  • Coverage angle (-6 dB): 100° (500 Hz to 5 kHz)
  • Maximum continuous SPL: 108 dB
  • Maximum peak SPL: 114 dB
  • Rated impedance: 8 ohms
  • Transformer taps:
    • 70 V: 60, 30, 15, 7.5, 3.8 watts and 8-ohm bypass
    • 100V: 60, 30, 15, 7.5 watts and 8-ohm bypass
  • HF Transducer: 22 mm (.86 in) silk dome tweeter,coaxially mounted
  • LF Transducer: 210 mm (8 in) Polypropylene cone withbutyl rubber surround
  • Input connector type: Euroblock connector withparallel output terminals
  • Baffle material: Painted ABS polymer
  • Grille material: Painted steel
  • Back can material: Plated steel
  • Testing: Listed UL1480, UL2043 safe for use in airhandling space
  • Net weight: 5.2 kg (11.5 lb)
  • Product dimensions: 316 x 288 mm (12.4 x 11.3 in
  • Cut-out Dimensions: 285 mm (11.2 in)
  • Ceiling Capture Thickness: 6 - 38 mm (0.25 - 1.5 in)
  • Shipping weight: 13.3 kg (29.3 lb)  (pair packed)
  • Shipping dimensions: 743 x 381 x 381 mm  (29.3 x15 x 15 in)
  • Included accessories: Rails & C-ring for ceiling tile installation

Click to download
