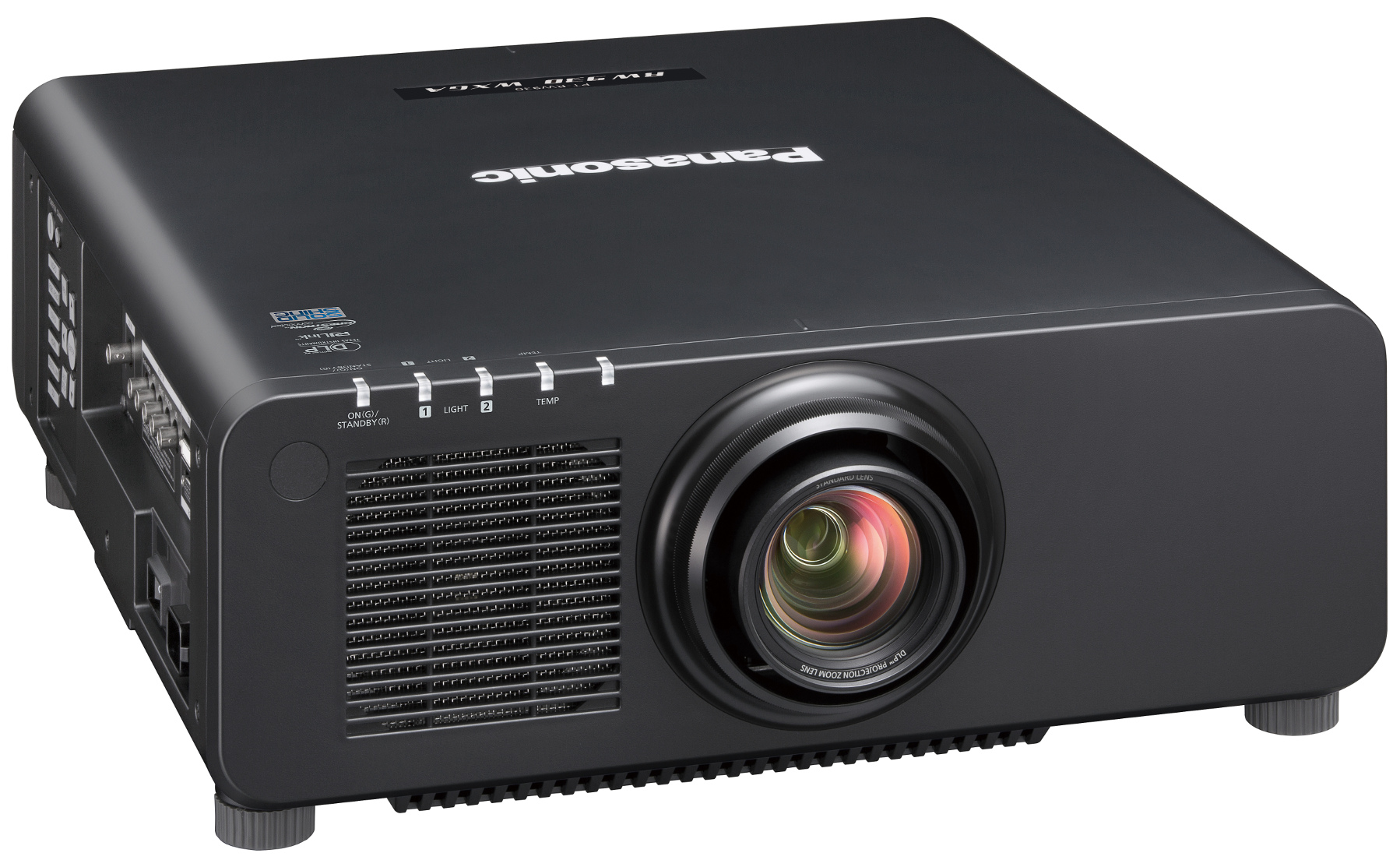

Panasonic PT-RW930B
10,000 Lumens WXGA 1DLP Laser Projector, Black

OUR PART #:  PTRW930BU

With immersive picture quality as well as practical features, the Panasonic PT-RW930B, part of their PT-RZ970 Series...
Learn More
Similar Products

With immersive picture quality as well as practical features, the Panasonic PT-RW930B, part of their PT-RZ970 Series, has potential applications that extend from permanent installation in theaters, museums, and control rooms, on through roles in signage, staging, and exhibition/rental. Powered by the acclaimed SOLID SHINE Laser drive along with the latest 1-Chip DLP™ technology, the PT-RW930BU exceeds expectations with vivid color performance and low-maintenance stability, in use longer than competitive products, over years of 24/7 operation. The Panasonic PT-RW930BU: made by professionals, for professionals.

Panasonic PT-RW930B Includes:

  • PT-RW930BU unit
  • Power cord with secure lock
  • Wireless/wired remote control unit
  • Batteries (R03/AAA type x 2)
  • Software CD-ROM (Logo Transfer Software, Multi Monitoring & Control Software)

Panasonic PT-RW930B Specifications:

  • Main parts and controls:

  • Power supply: 100-240 V AC, 10.4-5.0 A, 50/60 Hz
  • Power consumption:
    • 1,050 W
      (742 W with OPERATING MODE set to NORMAL, 617 W with OPERATING MODE set to ECO, 410-588 W with OPERATING MODE set to LONG LIFE 1, 375-588 W with OPERATING MODE set to LONG LIFE 2, 349-588 W with OPERATING MODE set to LONG LIFE 3, 82 W with OPERATING MODE set to SHUTTER)
      (0.2 W with STANDBY MODE set to ECO, 3 W with STANDBY MODE set to NORMAL, 85 W with QUICK STARTUP set to ON.)
  • DLP™ chip: 0.65" (16.5mm) diagonal (16:10 aspect ratio)
  • Display method: DLP™ chip x 1, DLP™ projection system
  • Pixels: 1,024,000 (1,280 x 800) pixels
  • Lens: Powered zoom (throw ratio 1.8-2.5:1), Powered focus, F 1.7-1.9, f 25.6-35.7 mm
  • Light source: Laser diodes laser Class 1 (Class 3R for US models), light source life1: 20,000 hours (Normal Mode) / 24,000 hours (Eco Mode).
    At this time the brightness will have decreased to approximately half of its original level.
  • Screen size (diagonal): 50-600" (1.27-15.24m), 16:10 aspect ratio
  • Brightness: 10,000 lm (Center)/ 9,400 lumens1
  • Center-to-corner uniformity1: 90 %
  • Contrast1: 10,000:1 (Full on/off, with Dynamic Contrast Mode set to "3" )
  • Resolution: 1,280 x 800 pixels
  • Scanning frequency:
    • HDMI/DVI-D/DIGITAL LINK:
      • 480i (525i)2, 576i (625i)2, 480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p, 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080 (1125)/24p, 1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 (1125)/50p,
        VGA (640 x 480)–WUXGA3 (1920 x 1200)
        (compatible with non-interlaced signals only), dot clock: 25–162 MHz
    • RGB: fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz.
    • YPBPR (YCBCR):
      • fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
      • fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
      • fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
      • fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
      • fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
      • fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
      • fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
      • fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
      • fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
      • fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
      • fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
      • fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
      • fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
      • fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
      • fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
    • Video/YC:
      • fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
      • fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
  • Optical axis shift4:
    • Vertical: +60 %, -16 % (powered)
    • Horizontal: +30 %, -10 % (+28 %, -10 % with ET-DLE085) (powered)
  • Keystone correction range:
    • Vertical: ±40° (±22 ° with ET-DLE085/DLE055, +5 ° with ET-DLE030)
    • Horizontal: ±15 ° (cannot be operated with ET-DLE030)
  • Installation: Ceiling/floor, front /rear, free 360-degree installation
  • Terminals:
    • SDI IN: BNC x 1 (3G/HD/SD-SDI)
    • HDMI IN: HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
    • DVI-D IN: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
    • RGB 1 IN: BNC x 5 (RGB/YPBPR/YCBCR/YC/Video x 1)
    • RGB 2 IN: D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
    • SERIAL/ MULTI PROJECTOR SYNC IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
    • SERIAL/MULTI PROJECTOR SYNC OUT: D-sub 9-pin (male) x 1 for link control
    • REMOTE 1 IN: M3 x 1 for wired remote control
    • REMOTE 1 OUT: M3 x 1 for link control (for wired remote control)
    • REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel)
    • LAN/DIGITAL LINK: RJ-45 x 1 (for network, DIGITAL LINK connection, 100Base-TX, compatible with Art-Net, PJLink™)
  • Cabinet materials: Molded plastic
  • Physical:
    • Dimensions: (with supplied lens) 19-19/32" W x 7-7/8" H5 x 22-7/8" D (498 x 2005 x 581 mm)
       Weight6: (with supplied lens) Approximately 51.1 lbs (23.2 kg)
  • Noise level1: 41 dB
  • Operating environment:
    • Operating temperature: 32-113 °F (0-45 °C)7
    • Operating humidity: 10-80 % (no condensation)

Notes:
1 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
2 Only compatible with dot clock frequency of 27 MHz (pixel repetition signal).
3 WUXGA resolution is supported only when the signals are compliant with VESA CVT-RB (Coordinated Video Timing-Reduced Blanking).
4 Optical axis shift is not supported on the ET-DLE055, and the optical axis is fixed with the ET-DLE030.
5 With legs at shortest position.
6 Average value. May differ depending on the actual unit.
7 When used in locations from 0 m to 4,200 m (0 ft to 13,780 ft) above sea level in Normal Mode, and from 0 m to 2,700 m (0 ft to 8,858 ft) above sea level in other modes. If the ambient temperature exceeds 35 °C (95 °F) when used in locations from 0 m to 2,700 m (0 ft to 8,858 ft) above sea level, or if it exceeds 25 °C (77 °F) when used in locations from 0 m to 4,200 m (0 ft to 13,780 ft) above sea level, the light output may be reduced to protect the projector.

Notes on Use:
1. Do not install the projector in locations that are subject to excessive water, humidity, steam, or oily smoke. Doing so may result in fire, malfunction, or electric shock.
2. Please observe the following precautions:
   • Never place objects on top of the projector while it is in operation.
   • Make sure there is an unobstructed space of 1ft, 8" (500mm) or more around the projector’s exhaust openings.
   • Do not stack projector units directly on top of one another for the purpose of multiple (stacked) projection.
   When stacking projector units, be sure to provide the amount of space indicated below between them.
   These space requirements also apply to installations where only one projector unit is operating at one time and the other unit is used as a backup.
   • Make sure that nothing blocks the projector’s air intake and exhaust openings.
   Also, install the projector so that cool or hot air from other air conditioning equipment does not flow directly toward the projector’s air intake or exhaust openings.
   • Do not install the projector in an enclosed space. If it is necessary to install it in an enclosed space, add a separate ventilation system.
   If ventilation is insufficient, hot air will accumulate at the intake opening. This may cause the projector’s protective circuit to interrupt projector operation.
   • If the projector is placed in a box or enclosure, ensure the projector’s intake and exhaust openings are not blocked.
   Take particular care to ensure that hot air from the exhaust openings is not sucked into the intake.
3. Because the ET-DLE055/DLE030 is a fixed short-throw lens, the lens shift function cannot be used with it.
