OUR PART # B126-1P0-RST-02

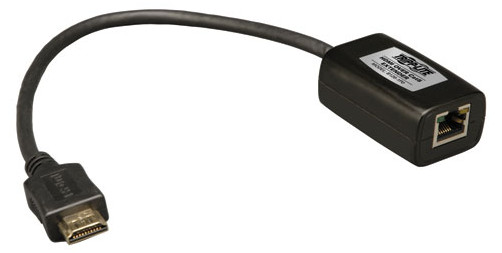

The Tripp Lite B126-1P0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 50 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) No power is required, and its built-in HDMI male connector plugs directly into a monitor without the need for an additional cable. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.
Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the built-in HDMI connector on the receiver unit directly to a display. Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.
-A 1080p (60Hz) signal can be transmitted up to 50 ft.
-A 1080i (60Hz) signal can be transmitted up to 100 ft.
-Cannot be used for a 3D signal
- Display Style: Splitter
- Color: Black
- Operating Temperature Range: 32° to 104°F (0° to 40°C)
Storage Temperature Range: -4° to 140°F (-20° to 60°C)
Relative Humidity: 20 to 90%
- Connector A: RJ45 (FEMALE)
Connector B: HDMI (MALE)
- Chromebook Compatible: Yes
- Product Warranty Period (Worldwide): 1-year limited warranty
Specifications are subject to change without notice.
