ADJ Focus Spot Three Z 100W LED Moving Head Spot with Zoom

OUR PART #: FOCUS-SPOT-THREE-Z MFR #: FOC407

Copied to clipboard

The Focus Spot Three Z from ADJ is a 100W LED moving head spot luminaire that features motorized zoom and motorized focus... ...Read more

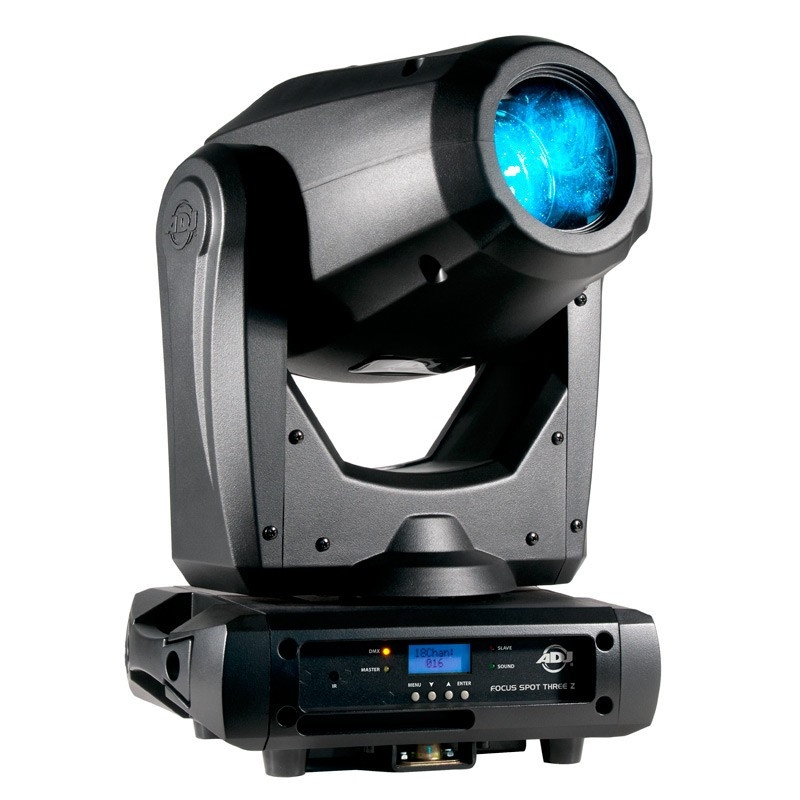

ADJ Focus Spot Three Z 100W LED Moving Head Spot With Zoom Image 1
ADJ Focus Spot Three Z 100W LED Moving Head Spot With Zoom Image 2
ADJ Focus Spot Three Z 100W LED Moving Head Spot With Zoom Image 3
ADJ Focus Spot Three Z 100W LED Moving Head Spot With Zoom Image 4
ADJ Focus Spot Three Z 100W LED Moving Head Spot With Zoom
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Focus Spot Three Z from ADJ is a 100W LED moving head spot luminaire that features motorized zoom and motorized focus, allowing for a variable beam angle that goes from 12°-18°. In addition, it's been fitted with one rotating GOBO wheel, one fixed GOBO wheel and one color wheel, allowing users to generate unique patterns and effects in a series of vibrant hues. There are two 6-facet prisms (one circular and one linear) which provide spell-binding multi-beam effects that are capable of filling wide spaces with both color and movement. The Three Z is extremely versatile and has everything clubs, theaters, churches, concert productions, as well as lighting professionals are looking for in a professional LED Moving Head spot fixture. It has 18 and 21 DMX channel modes, 16-Bit Fine Pan/Tilt, Pan/Tilt Inversion, 3-pin DMX In/Out, PowerCON In/Out power connectors, and a 4-Button DMX LCD menu with 180° inverse view mode.

Features

  • High-output 100W LED Moving Head spot with motorized zoom
  • Motorized focus and motorized zoom (12° - 18° beam angle)
  • Sound Active, Show, and DMX Controlled operation modes
  • 4 built-in lighting shows
  • 0 - 100% electronic dimming

Specifications

  • Light Source: 100W High Output LED
  • LUX :
    • 12°: 13090 @ 3M
    • 18°: 6300 @ 3M
  • Variable beam angle: 12°~ 18° beam angle
  • 18 and 21 DMX channel modes
  • Eight Colors + Spot
  • Two Independent Gobo Wheels: Gobo Wheel 1 has 7 Static Gobo’s + Spot; Gobo Wheel 2 has 6 Rotating Gobo’s + Spot
  • Interchange Gobos on wheel 2: 23.8 mm Gobo Size; 20mm Viewable
  • Pan: 630°; Tilt: 270°
  • PowerCon AC In/Out on rear to daisy chain power (up to3 Focus Spot Three Z’s @ 120V and 6 Focus Spot Three Z’s @ 230V )
  • Long Life LED (Rated at approximately 50,000 hrs)
  • Multi-voltage Operation: 100-230V, 50Hz/60Hz
  • Power Consumption: 230W
  • Dimensions (L x W x H): 7.25” x 11.25” x 19.75” (183 x 284x 489mm)
  • Weight: 26 lbs. (12 kg)
  • Additional information can be found within the "ADJ Focus Spot Three Z User Manual" located under the "Documentation" tab above.
