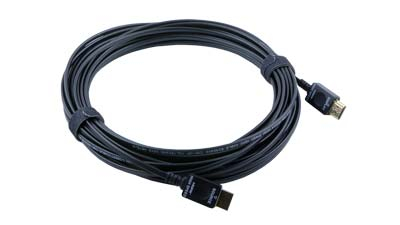

Liberty AV Solutions PF-HDM-M-010M
Active optical HDMI cable, 10M/33ft


The Liberty AV Solutions PF-HDM-M-010M is a 33' Liberty Hybrid High Speed HDMI AOC (Active Optical Cable).
Learn More
Our Price: $281.00
List Price: $312.00
You save 10%!
Write the first review.
Liberty AV Solutions PF-HDM-M-010M
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Liberty AV Solutions PF-HDM-M-010M is a 33' Liberty Hybrid High Speed HDMI AOC (Active Optical Cable). It extends HDCP compliant HDMI® signals via an extremely flexible, plenum rated, polymer optical hybrid cable assembly. Utilizing active circuitry in the permanent HDMI connectors, HDMI signals with video resolutions up to 4k @  30 Hz (10.2Gbps) can be transmitted on fixed length cables ranging from 10 meters up to 30 meters. The HDMI to optical conversion circuits only draw 0.07 watts of power, which is provided by pin 18 of the HDMI ports on the connected devices.

Liberty AV Solutions PF-HDM-M-010M Applications:

  • HDMI extension better and cheaper than HDBT/LAN systems
  • Long distance cabling used with switches and DA's
  • Digital Signage applications

Liberty AV Solutions PF-HDM-M-010M Features:

  • HDMI "A" male to male connectivity
  • Polymer Optical Fiber (POF) for better flexibility
  • Ultra-Small diameter cable with reduced sized HDMIheads\
  • Draws power from pin 18 of the source/display HDMIport
  • HDMI High Speed 10.2Gbps 4K @ 30Hz 3D all Audioformats
  • Supports 4K @ 60Hz with 4:2:0 Chroma Sampling
  • Does not support Ethernet or Audio Return
  • Lengths: 10, 15, 20, 23, and 30 meters
  • NEC/CEC rated CMP-OF Plenum, RoHS-2 Compliant
