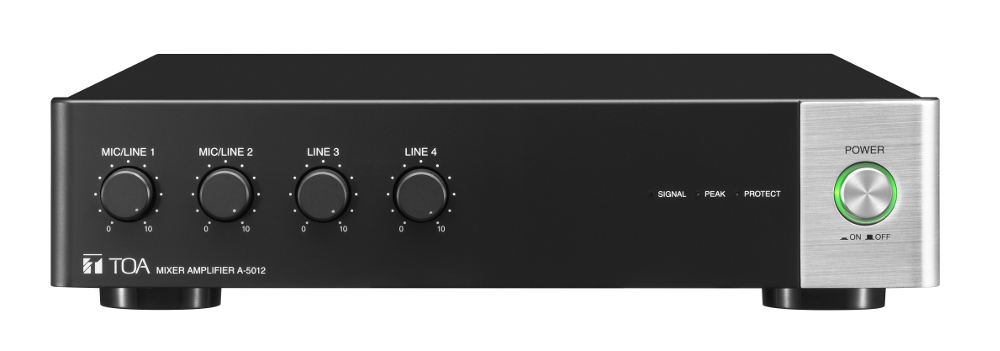

TOA A5012
4 in Mixer/Amp, Network DSP, 120W @ 70V

OUR PART #  A5012

Our Price: $484.76
List Price: $599.89
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The TOA A-5012 is a half-rack 1-unit size 120 W desktop mixer power amplifier. Inputs 1 and 2 can be set for either MIC or LINE sound sources, and its output is compatible with both high-impedance (100 V and 70 V lines) and low-impedance (4 Ohm) speaker connections.Functions can be set with a PC using the dedicated setting software. The A-5012 is ideal for use asa power amplifier in small commercial facilities and conference rooms.With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipmentrack (1 unit size).

TOA A-5012 Specifications:

  • Power Source: 100-240 V AC, 50/60 Hz
  • Rated Output: 120 W
  • Power/CurrentConsumption: 207 W (rated output), 39 W(based on cULus standards)
  • Frequency Response: 50 Hz - 20 kHz (1/8 rated output)
  • Distortion: 1 % or less (1 kHz, rated output)
  • Input:
    • INPUT 1, 2: MIC -60 dB(*1)
    • LINE -20 dB(*1) MIC/LINE selectable
    • 2.2 kOhm, electronically-balanced, removable terminal block (5 pins)
    • INPUT 3, 4: LINE -20 dB(*1), 10 kOhm, unbalanced, RCA pin jack
  • Output: SPEAKER: 4 Ohm, 70 V (42 Ohm), 100 V (83Ohm), removable terminal block (5 pins)
  • Signal to Noise Ratio:
    • MIC 1, 2: 50 dB or more
    • LINE 1 - 4: 70 dB or more
  • Function:
    • Parametric equalizer: 5 points settable on each input and output
    • 20 Hz - 20 kHz +/- 15 dB
    • Q: 0.267 - 69.249
    • Compressor: ON/OFF settable on Inputs 1 and 2 (OFF by default) Threshold, Ratio, Attack time, Release time, and Gain are settable independently on each input.
  • Control: Mute control, Remote master volume control,Power ON/OFF switch, Ground lift
  • LED Indicator: Power indicator, Signal indicator,Peak indicator, Protect indicator
  • Operating Temperature: 0° to +40°C (32°F to 104°F)
  • Operating Humidity: 35 % to 80 % RH (no condensation)
  • Finish:
    • Panel: PS resin, black
    • Case: Surface-treated steel plate, black, paint
  • Dimensions: 8.27 W ×2.07" H × 14.76" D (210 × 52.5 × 375 mm)
  • Weight: 8.6 lbs (3.9 kg)

TOA A5012
4 in Mixer/Amp, Network DSP, 120W @ 70V

OUR PART #  A5012

Product Information:

The TOA A-5012 is a half-rack 1-unit size 120 W desktop mixer power amplifier. Inputs 1 and 2 can be set for either MIC or LINE sound sources, and its output is compatible with both high-impedance (100 V and 70 V lines) and low-impedance (4 Ohm) speaker connections.Functions can be set with a PC using the dedicated setting software. The A-5012 is ideal for use asa power amplifier in small commercial facilities and conference rooms.With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipmentrack (1 unit size).

TOA A-5012 Specifications:

  • Power Source: 100-240 V AC, 50/60 Hz
  • Rated Output: 120 W
  • Power/CurrentConsumption: 207 W (rated output), 39 W(based on cULus standards)
  • Frequency Response: 50 Hz - 20 kHz (1/8 rated output)
  • Distortion: 1 % or less (1 kHz, rated output)
  • Input:
    • INPUT 1, 2: MIC -60 dB(*1)
    • LINE -20 dB(*1) MIC/LINE selectable
    • 2.2 kOhm, electronically-balanced, removable terminal block (5 pins)
    • INPUT 3, 4: LINE -20 dB(*1), 10 kOhm, unbalanced, RCA pin jack
  • Output: SPEAKER: 4 Ohm, 70 V (42 Ohm), 100 V (83Ohm), removable terminal block (5 pins)
  • Signal to Noise Ratio:
    • MIC 1, 2: 50 dB or more
    • LINE 1 - 4: 70 dB or more
  • Function:
    • Parametric equalizer: 5 points settable on each input and output
    • 20 Hz - 20 kHz +/- 15 dB
    • Q: 0.267 - 69.249
    • Compressor: ON/OFF settable on Inputs 1 and 2 (OFF by default) Threshold, Ratio, Attack time, Release time, and Gain are settable independently on each input.
  • Control: Mute control, Remote master volume control,Power ON/OFF switch, Ground lift
  • LED Indicator: Power indicator, Signal indicator,Peak indicator, Protect indicator
  • Operating Temperature: 0° to +40°C (32°F to 104°F)
  • Operating Humidity: 35 % to 80 % RH (no condensation)
  • Finish:
    • Panel: PS resin, black
    • Case: Surface-treated steel plate, black, paint
  • Dimensions: 8.27 W ×2.07" H × 14.76" D (210 × 52.5 × 375 mm)
  • Weight: 8.6 lbs (3.9 kg)
