Product Overview

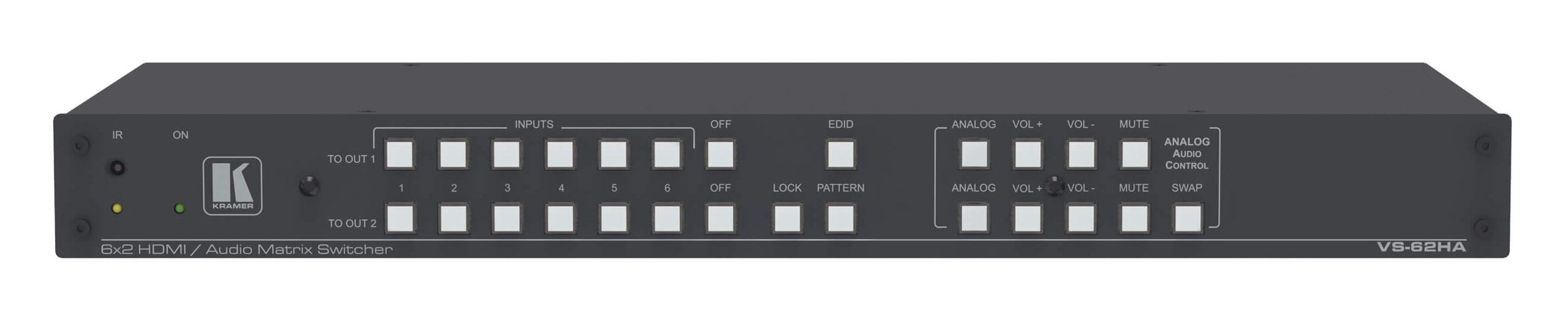

The Kramer VS-62HA is a high-quality matrix switcher for 4K UHD HDMI and analog audio signals that employs advanced auto switching schemes and control options. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously. It supports resolutions up to 4k @ 60 Hz (4:2:0) UHD and WUXGA.
Features
- Max Data Rate - 8.91Gbps
- Max Resolution - 4K
- Supports 4K @60Hz (4:2:0) UHD
- Kramer reKlocking™ & Equalization Technology
- Supports Programmable Step-In over HDMI Functionality
- 3D Pass Through
- EDID Capture
- Internal Pattern Generator
- Control - IR, RS-232, Ethernet, Contact Closure
- Advanced Auto Switching
- Embedded Web Pages
- Remote Button/LED Ports
- Independent (breakaway) Audio Routing of Digital andAnalog Audio
- Size - Standard 19" (1U). Rack "ears" included.
- Audio - E/B/U
Specifications
- Inputs:
- 6 HDMI connectors
- 4 unbalanced stereo audio on 3.5mm mini jacks
- 2 balanced stereo audio on 5-pin terminal blocks
- Outputs:
- 2 HDMI connectors
- 2 balanced stereo audio on 5-pin terminal blocks
- Ports:
- 1 RS-232 on a 3-pin terminal block
- 1 Ethernet on an RJ-45 connector
- 1 USB Type-C
- 1 remote IR on a 3.5 mm mini jack
- 2 x 6 remote LED outputs on terminal blocks
- 2 x 6 remote contact closure switches on terminal blocks
- Controls:
- Front panel buttons
- Infrared remote control transmitter
- RS-232
- Ethernet
- Remote input selection switches and LEDS
- Built-in Web browser
- LED Indicators:
- IR active - red
- ON - green
- Power Consumption:
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: -40° to +70°C (-40° to 158°F)
- Humidity:
- 10% to 90%
- RHL non-condensing
- Dimensions (W x D x H): 43.6 x 18.3 x 4.36 cm (17.2 x7.2 x 1.7”)
- Weight: 1.65 kg (3.63 lbs)
- Shipping Dimensions (W x D x H): 55 x 27.6 x 10.7 cm (21.7 x 10.9 x 4.2")
- Shipping Weight: 2.5 kg (5.5 lb)
- Included Accessories: Power cord, rack "ears"
