Product Overview

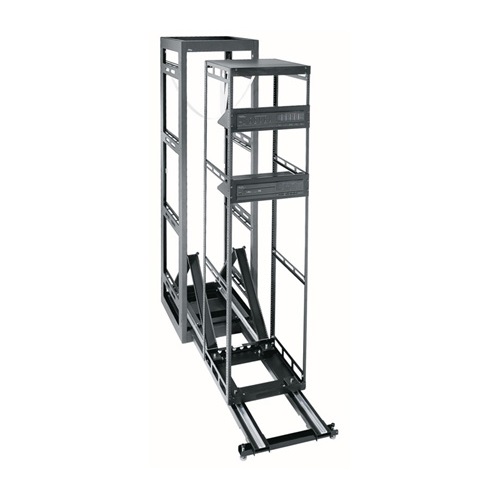

Middle Atlantic's MRK-4426AXS-Z4 is a 20" deep seismic certified AXS system assembled in a modified 44RU MRK enclosure. The AXS system allows equipment bays to be placed against walls or back-to-back, saving six square feet of floor space per rack.
Middle Atlantic MRK-4426AXS-Z4 AXS System Features:
- Ball bearings allow entire equipment bays to roll straight out for service and installation
- Patented design is ideal for access to rear equipment connections
- MRK enclosure can be pre-installed on-site
- Detachable rack frame can be integrated with equipment and tested off-site
- Service stand raises service tracks to bottom of AXS, allowing it to pull out
- Standard fixed front and rear 10-32 threaded rackrail with numbered spaces
- Includes articulating cable carriers for effective cable management
- System includes host cabinet, rack frame, cable carriers, base, and safety leashes
- Service tracks and stands sold separately
- Articulating cable carriers provide effective cable management
- Rough-in pan pre-installed
- 650 lb. capacity with proper weight distribution
Middle Atlantic MRK-4426AXS-Z4 AXS System Specifications:
- Rackrail Type: 10-32
- Material: Steel
- Finish: Black powder coat
- Mounting: Horizontal
- Seismic Certified: Yes
- Seismic Load Capacity: 520 lbs (236.36 kg)
- UL Load Capacity: 2500 lbs (1136.36 kg)
- UL Standards Tested: UL1678
- ASC E: 7-10
- RoHS: Yes
- Greenguard: Yes
- Capacity Weight: 650 lbs (295.45 kg)
- Usable Depth: 20" (50.8 cm)
- Usable Height: 71.75" (182.245 cm)
- Dimensions: 26.4" D x 83.125" H x 22" W (67 x 211.14 x 55.88 cm)
- Primary Package Weight: 188 lbs (85.45 kg)
- Rack Units: 44
