Audio-Technica ATW-2110b
Frequency-Agile, True Diversity UHF Wireless Beltback System

OUR PART #:  ATW-2110BI

Audio-Technica’s ATW-2110b is part of their 2000 Series of 10-channel, frequency-agile UHF wireless systems designed to suit a range of applications...
Learn More
Our Price: $329.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio-Technica ATW-2110b
Qty:
In Stock

Similar Products

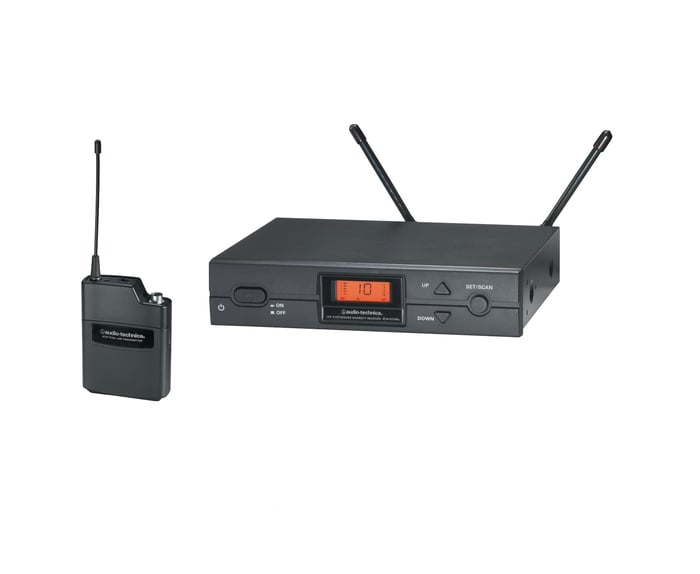

Audio-Technica’s ATW-2110b is part of their 2000 Series of 10-channel, frequency-agile UHF wireless systems designed to suit a range of applications, including MI/live performance, public address, fixed installation, A/V rental houses, places of worship, and more. It offers all the advantages of a high-quality, professional wireless system while coming in at an extremely affordable price. Its features include 2 available frequency bands and switchable antenna power. Also, the optional ATW-CHG2 two-bay recharging station (sold separately) provides power to recharge NiMH batteries in (2) ATW-T220a handheld transmitters and/or ATW-T210a UniPak® transmitters in any combination (additional transmitters sold separately).

This system offers 10 selectable channels in one of two UHF frequency ranges and True Diversity UHF wireless technology, plus automatic frequency scanning. This function automatically determines and sets the best available frequency at the touch of a button. Any of the series’ 10 channels can be used together with no frequency coordination problems or group selection issues. The series also employs Audio-Technica’s Tone Lock™ squelch along with an easy-to-read LCD information display.

Audio-Technica 2000 Series Features:

  • Serious advances in affordable professional wireless
  • Clear sound quality and rock-solid, dependable performance
  • Automatic frequency scanning
  • 10 compatible user-switchable channels in one of two UHF frequency ranges
  • Antenna power available for powered antennas & other in-line RF devices
  • True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
  • Tone Lock™ tone squelch system fights interference
  • Rugged metal half-rack receiver with soft-touch controls and LCD display
  • Balanced XLR and unbalanced 1/4” output jacks enable use with a wide variety of audio gear
  • Switchable transmitter power output with high and low settings offered
  • Includes rack-mount kit and detachable UHF antennas
  • Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver

Audio-Technica ATW-2110b Specifications:

Overall System

  • Operating Frequencies:
    • Band I: 487.125 to 506.500 MHz
  • Number of Channels: 10 total
  • Modulation Mode: FM
  • Maximum Deviation: +/- 40 kHz
  • Dynamic Range: > 110 dB (A-weighted), typical
  • Total Harmonic Distortion: < 1% (at 1 kHz, +/- 20 kHz deviation)
  • Operating Range: 100 m (300'), typical
  • Operating Temperature Range: 5º C to 45º C, 41º F to 113º F
  • Frequency Response: 100 Hz to 15 kHz (+1 dB, -3 dB)

Receiver

  • Receiving System: True diversity
  • Image Rejection: 60 dB nominal, 55 dB minimum
  • RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
  • Antenna Input: BNC-type, 50 ohms
  • Bias voltage: 12V DC, 60 mA, each
  • Power Requirements: 12-18V DC, 500 mA
  • Dimensions (W x D x H): 8.27" x 6.39" x 1.73" (210.0 x 162.2 x 44.0mm) not including BNC connectors or feet.
  • Net Weight: 35.3 oz. (1.0 kg), without accessories
  • Maximum Output Level:
    • XLR, balanced: +9 dBV
    • ¼" (6.3 mm), unbalanced: +4 dBV
  • Balanced Audio Output Attenuator:
    • 2-position switch: 0 / -12 dB

Bodypack Transmitter

  • RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
  • Spurious Emissions: Follows federal and national regulations
  • Input Connections:
    • 4-pin Locking Connector:
      • Pin 1: GND
      • Pin 2: INST INPUT
      • Pin 3: MIC INPUT
      • Pin 4: DC BIAS +9V
  • Dimensions (W x D x H): 2.60" x 0.89" x 3.63" (66.0 x 22.5 x 92.3mm)
  • Net Weight: 81 g (2.9 oz), without batteries
  • Battery Life:
    • High: 7 hours (alkaline)
    • Low: 9 hours (alkaline)
      Note: Depends on battery type and use pattern.
