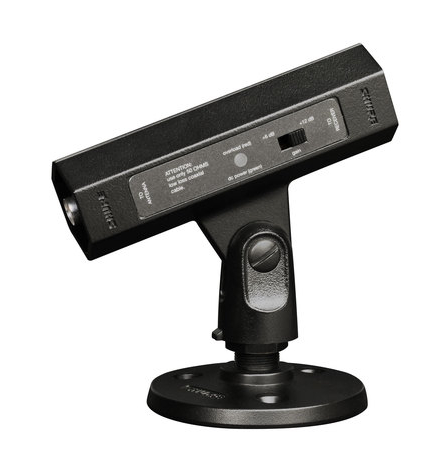

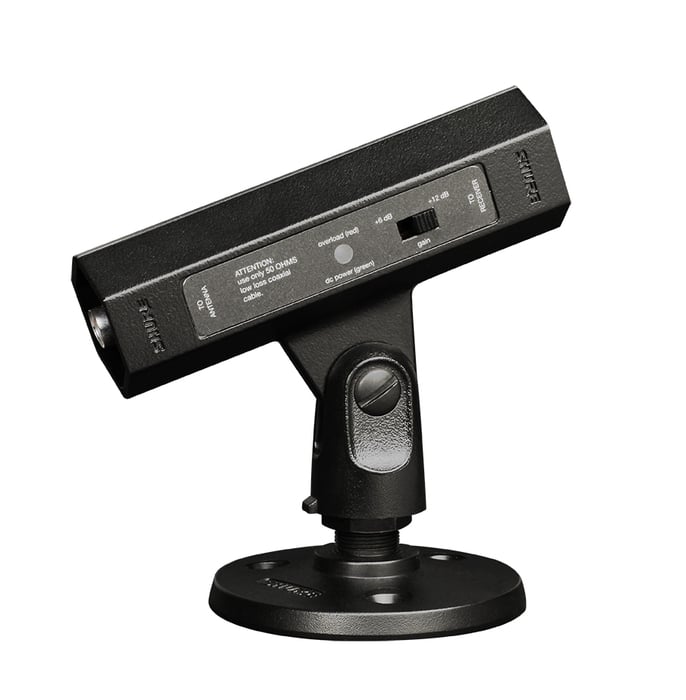

Shure UA834WB In-Line Antenna Amplifier, 470-902 MHz

The Shure UA834 provides more flexibility in wireless installations by increasing the allowable length of cable runs between a receiver and antenna. Antennas may be placed closer to the stage, or installed on ceilings and walls that maintain a better line of sight with the transmitter.

Features

• Two-position gain selector switch +6 and +12 dB
• Overload LED indication
• Low-noise signal amplifier compensates for insertion loss in coaxial cable
• Compatible with Shure Wireless Systems. Also may be used with Shure UA845 and UA844 Antenna Distribution Systems
• Integrated threaded adapter mounts easily to microphone stands or the supplied surface-mount bracket
• Shure quality, ruggedness, and reliability

Specifications

• Frequency Range: 470–902 MHz
• Connector Type: BNC, Female
• Impedance: 50 Ω
• Power Requirements: 10 to 15 V DC bias from coaxial connection, 0.60–0.72 W
• Signal Gain (switchable):
  • ±2 dB
  • +6 dB
  • +12 dB
• Absolute Maximum RF Input:
  • +5 dBm
• RF Overload LED Threshold:
  • ±2 dB
  • -5 dBm
• Input Third-Order Intercept Point (IIP3):
  • >10 dBm
• Housing: Cast Aluminum, black painted finish
• Dimensions (H x W x D): 67 x 32 x 112 mm
• Dimensions with Stand: 108 x 32 x 112 mm
• Net Weight
  • Without Mounting Stand: 0.28 kg (9.8 oz.)
  • With Mounting Stand: 0.42 kg (14.8 oz.)
