DJI CP.SB.000129R

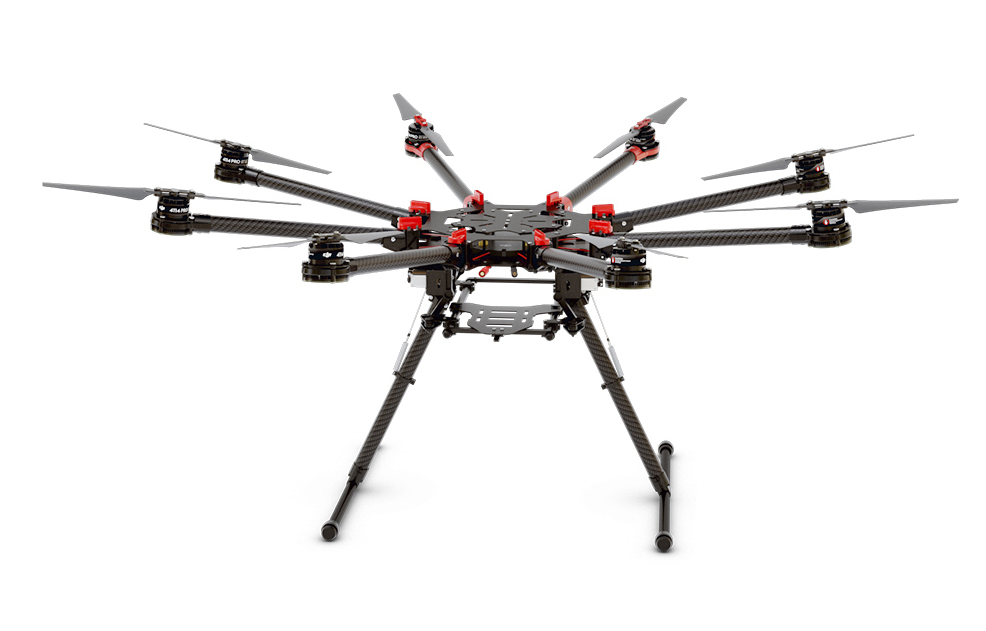

Spreading Wings S1000+

OUR PART #:  CP.SB.000129R

The DJI S1000+ Spreading Wings allow you to fly heavy DSLR cameras with the advanced eight-rotor propulsion system.
Learn More
Our Price: $1,900.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

DJI CP.SB.000129R
Qty:
In Stock

Similar Products

The DJI S1000+ Spreading Wings allow you to fly heavy DSLR cameras with the advanced eight-rotor propulsion system. The S1000+’s arms and landing gear are made of sturdy carbon fiber, giving remarkable stability and strength. You’re flying in a variety of flight conditions with confidence, knowing your gear is safe.

Hightly portable, with foldable arms: With arms that fold in to save space, the S1000+ is built to be taken wherever you need to go. Then when you want to fly, you are ready to start shooting in just a few minutes.

Removable Upper Center Board: The upper center board can be removed, giving you access to the IMU. Additionally, there are eight positions reserved for your extra equipment. So installation of your main controller, iOSD, Lightbridge, or any other accessories is faster and easier than ever before.
This new center board structure is perfectly compatible with the DJI WKM and A2 flight controllers.

New Power Distribution System: A redesigned, rebuilt power distribution system improves safety and reliability. Gold-plated metal bearings with a unique screw design secure the power cords, ensuring cables will not come loose during flight and allowing easy setup.

Sparkproof Plug: Prevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.

Profressional Quality: Weighing just 4.4kg, the S1000+ has a maximum takeoff weight of 11kg. This means you can easily carry most cameras and gimbals, including your 5D Mark III. Used with a 6S 15000mAh battery, it can fly for up to 15 minutes.

Wide Range of Shooting Angles: Retractable landing gear and a low gimbal mounting bracket combine to enable a wide range of possible shooting angles and camera motions.

Compatible with Zenmuse Gimbals: Full compatibility with DJI’s entire line of Zenmuse Z15 camera gimbals, including the new Z15-5D III (HD), provides unmatched stability in flight.

Reduced Vibrations, Clearer Footage: The S1000+’s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.

Greater Power: A 40A electronic speed controller (ESC), our fastest available, is built in to each arm. The 4114 pro motors, high performance 1552 folding propellers, and V-type mixer design combine to give each arm of the S1000+ a maximum thrust of 2.5Kg.
Our latest motor adopts a single wire stator design, offering improved heat dissipation, better performance, and a tidier, more reliable system.

Innovative Arm Design:Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.

DJI CP.SB.000129R Specifications:

  • Frame:
    • Diagonal Wheelbase: 1045mm
    • Frame Arm Length: 386mm
    • Frame Arm Weight (Including Motor, ESC, Propeller): 325g
    • Center Frame Diameter: 337mm
    • Center Frame Weight (with Landing Gear Mounting Base, Servos): 1520g
    • Landing Gear Size (LxWxH): 460 × 511 × 305 mm
  • Motor:
    • Stator Size: 41×14mm
    • KV: 400rpm/V
    • Max Power: 500W
    • Weight(with Cooling Fan): 158g
  • ESC:
    • Working Current: 40A
    • Working Voltage: 6S LiPo
    • Signal Frequency: 30Hz ~ 450Hz
    • Drive PWM Frequency: 8KHz
    • Weight(with Radiators): 35g
  • Foldable Propeller (1552/1552R)
    • Material: High strength performance engineered plastics
    • Size: 15" × 5.2"
    • Weight: 13g
  • Flight Parameters:
    • Takeoff Weight: 6.0Kg ~ 11.0Kg
    • Total Weight: 4.4Kg
    • Power Battery: LiPo (6S,10000mAh~20000mAh,15C(Min))
    • Max Power Consumption: 4000W
    • Hover Power Consumption: 1500W (@9.5Kg Takeoff Weight)
    • Hover Time: 15min (@15000mAh & 9.5Kg Takeoff Weight)
    • Working Environment Temperature: -10 °C ~ +40 °C
  • Gain Value Settings
    • For A2 flight controller:
      • Basic: Roll 120%, Pitch 120%, Yaw 120%
      • Attitude: Roll 170%, Pitch 170%, Vertical 120%
    • For WooKong-M flight controller:
      • Basic: Roll 130%, Pitch 130%, Yaw 120%
      • Attitude: Roll 180%, Pitch 180%, Vertical 120%
